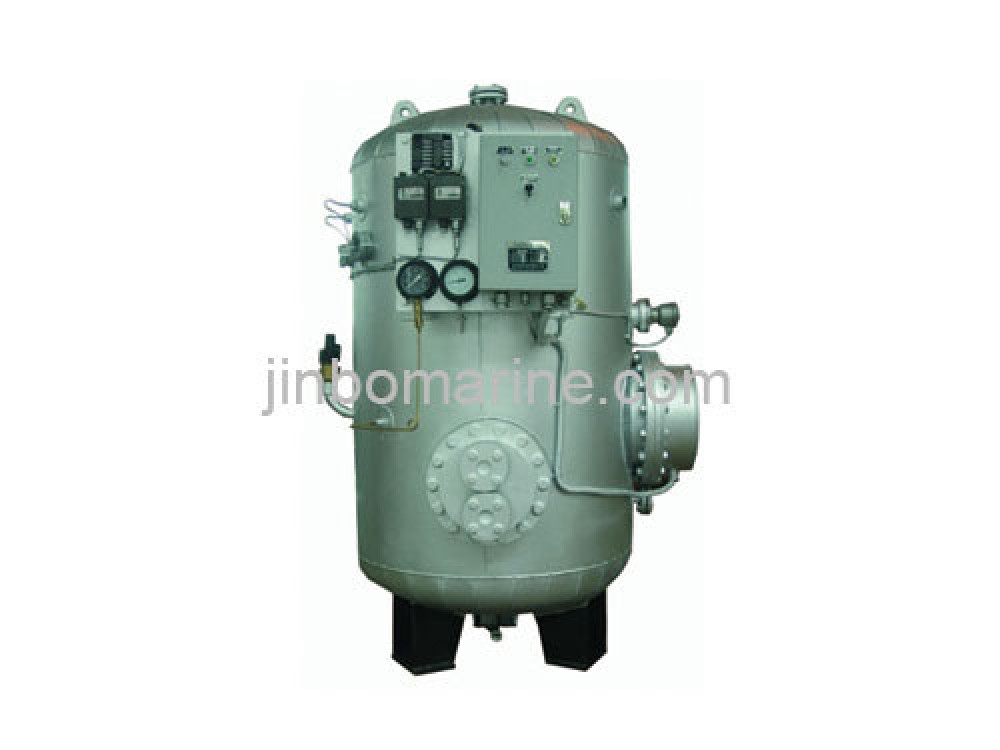

ZDR Series Steam-Electric Heating Hot Water Tank
PDF Datasheet
We can supply according to your requirement.
Application:
This steam-electric hot water tank is suitable for all kinds of ship which have steam source or power to produce hot water which is for crewmen.
Principle Description:
This series hot water tank can be combined to use with fresh water pressure tank on board, that is to use fresh water in fresh water pressure tank to replenish this tank, and then heated by electric or steam heating elements for usage of entire vessel.
| Model | ZDR-0.12 | ZDR-0.2 | ZDR-0.3 | ZDR-0.5 | ZDR-1 |
| Capacity（m3） | 0.12 | 0.2 | 0.3 | 0.5 | 1 |
| Working pressure（MPa） | 0.4（60℃） | ||||
| Design pressure（MPa） | 0.44 | ||||
| Test pressure（MPa） | 0.68 | ||||
| Safety valve open pressure（MPa） | 0.42 | ||||
| Water inlet temperature（℃） | 15 | ||||
| Water outlet temperature（℃） | 65 | ||||
| Working temperature（℃） | 0~65 | ||||
| Design temperature（℃） | 80 | ||||
| Steam pressure （MPa） | 0.3 | ||||
| Heated water capacity（kg/h） | 275 | 750 | 1200 | 3250 | |
| Steam consumption（kg/h） | 27.5 | 75 | 120 | 325 | |
| Steam consumption | |||||
| Heated water capacity（kg/h） | 180 | 540 | 720 | 900 | |
| Electrical heating power（kW） | 12 | 36 | 48 | 60 | |
| Electricity | AC380、50Hz、3φ/AC440V、60Hz、3φ | ||||
| The thickness of the external thermal layer（mm） | 40 | ||||
| The thickness of outer galvanized sheet steel（mm） | 0.7 | ||||
