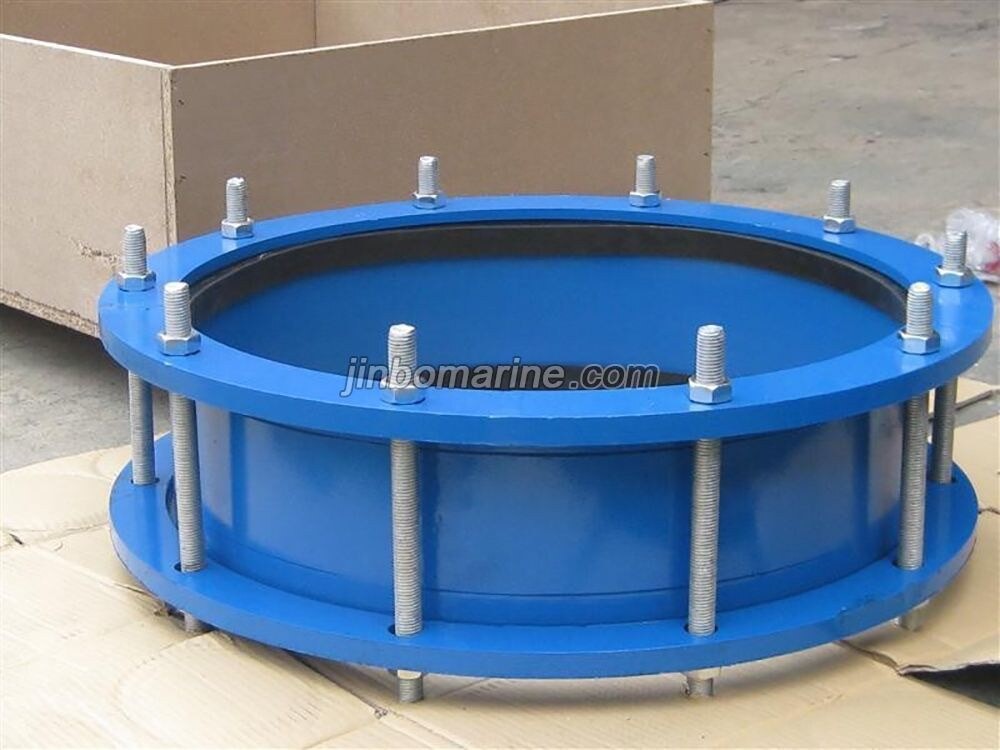

AFL Flange Type Sleeve Expansion Joint

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

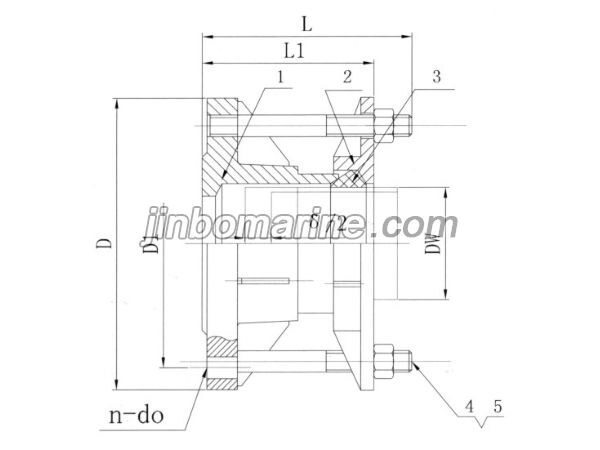

China AFL Flange Type Sleeve Expansion Joint:

No Name Quantity Material
1 Follower 1 QT400-15,Q235
2 Sleeve N QT400,Q235,304
3 Sealing Ring 1 NBR,NR,FPM
4 Bolt 1 QT400-15,Q235
5 Nut N Q235,35,304

AFL Flange Type Sleeve Expansion Joint Main Specifications

DN Pipe O.D Length Flange connecting dimension
0.6MPa 1.0MPa 1.6MPa
L1 L D D1 D D1 D D1
65 76 105 118 160 130 185 145 185 145
80 89 118 190 150 200 160 200 160
100 108 123 210 170 220 180 220 180
114 123 210 170 220 180 220 180
125 133 123 240 200 250 210 250 210
140 123 240 200 250 210 250 210
150 159 123 265 225 285 240 285 240
168 123 265 225 285 240 285 240
200 219 123 320 280 340 295 340 295
250 273 133 375 335 395 350 405 355
300 325 130 160 440 395 445 400 460 410
350 355 160 490 445 505 460 520 470
377 160 490 445 505 460 520 470
400 406 160 540 495 565 515 580 525
426 160 540 495 565 515 580 525
450 457 160 595 550 615 565 640 585
480 160 595 550 615 565 640 585
500 508 160 645 600 670 620 715 650
530 160 645 600 670 620 715 650
600 530 160 755 705 780 725 840 770
610 160 755 705 780 725 840 770
700 630 160 860 810 895 840 910 840
800 720 220 225 975 920 1015 950 1025 905
900 820 225 1075 1020 1115 1050 1125 1050
1000 920 225 1175 1120 1230 1160 1255 1170
1200 1020 225 1405 1340 1455 1380 1485 1390
1400 1220 270 1630 1560 1675 1590 1685 1590
1600 1420 270 1830 1760 1915 1820 1930 1820
1800 1620 270 2045 1970 2115 2020 2130 2020
2000 1820 270 2265 2180 2325 2230 2345 2230
2200 2220 275 2475 2390 2550 2440 2555 2440
2400 2420 275 2685 2600 2760 2650 2765 2650
