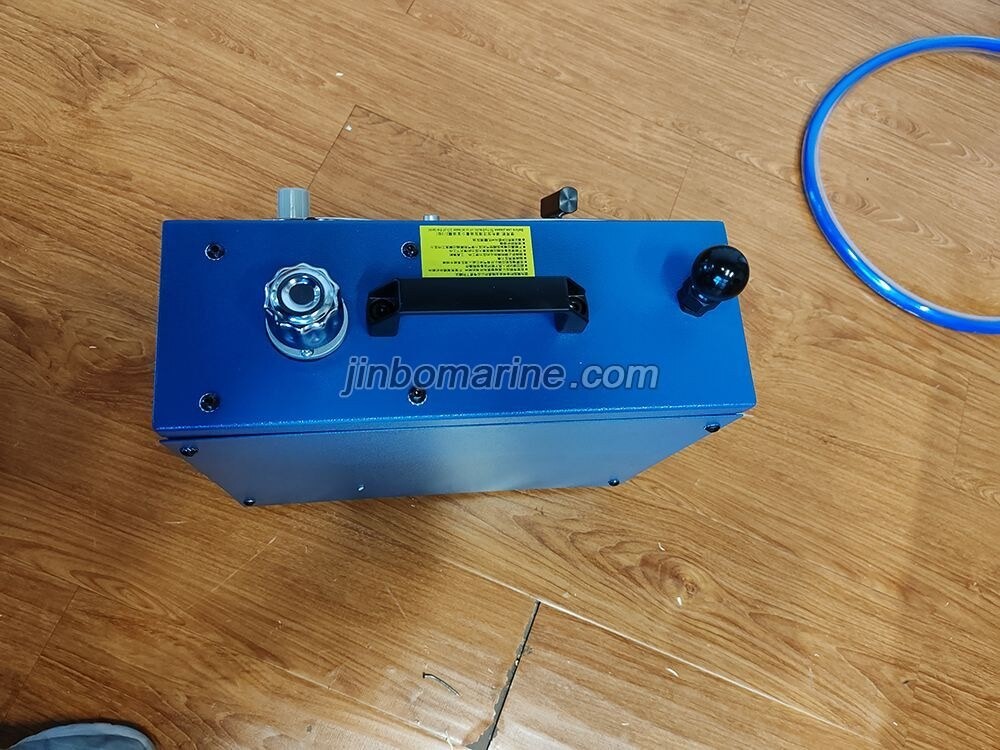

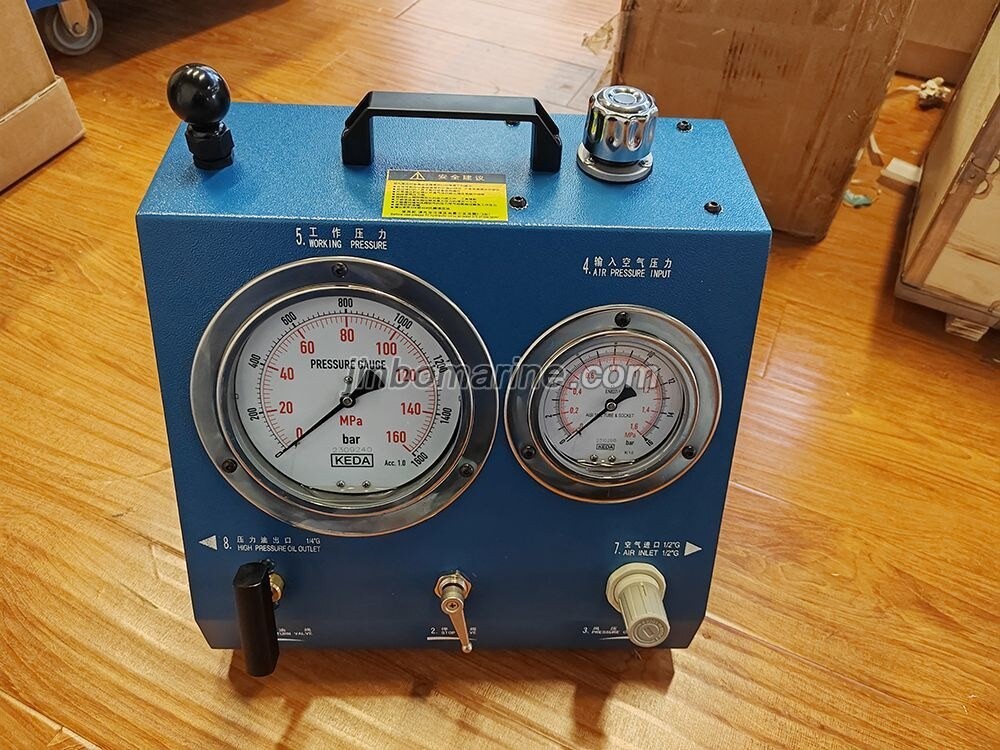

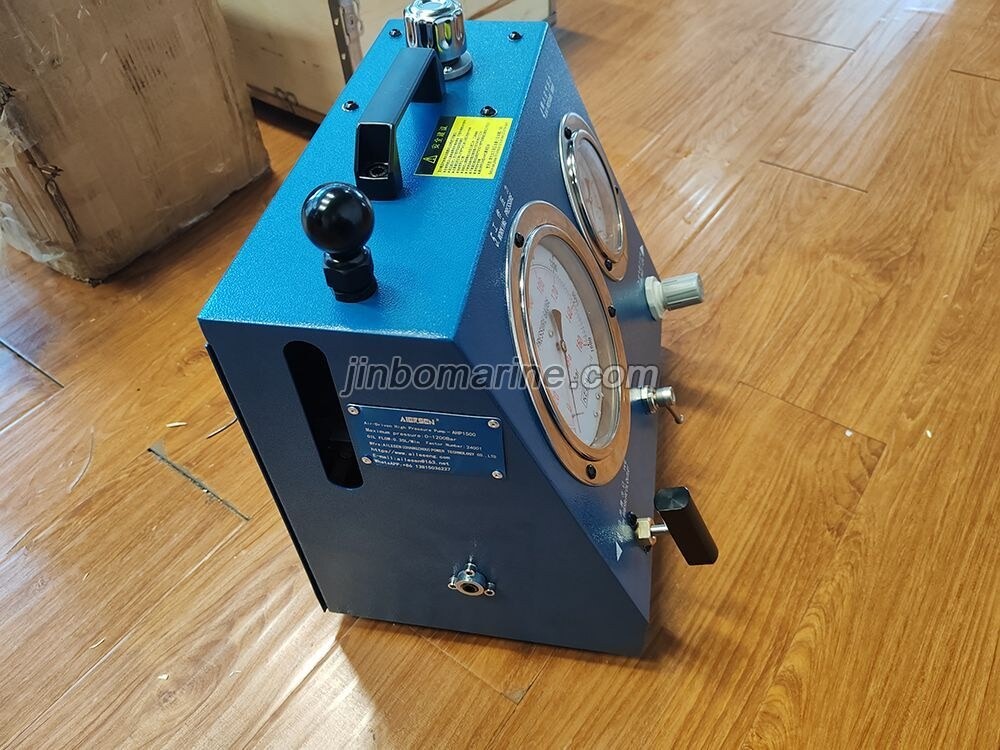

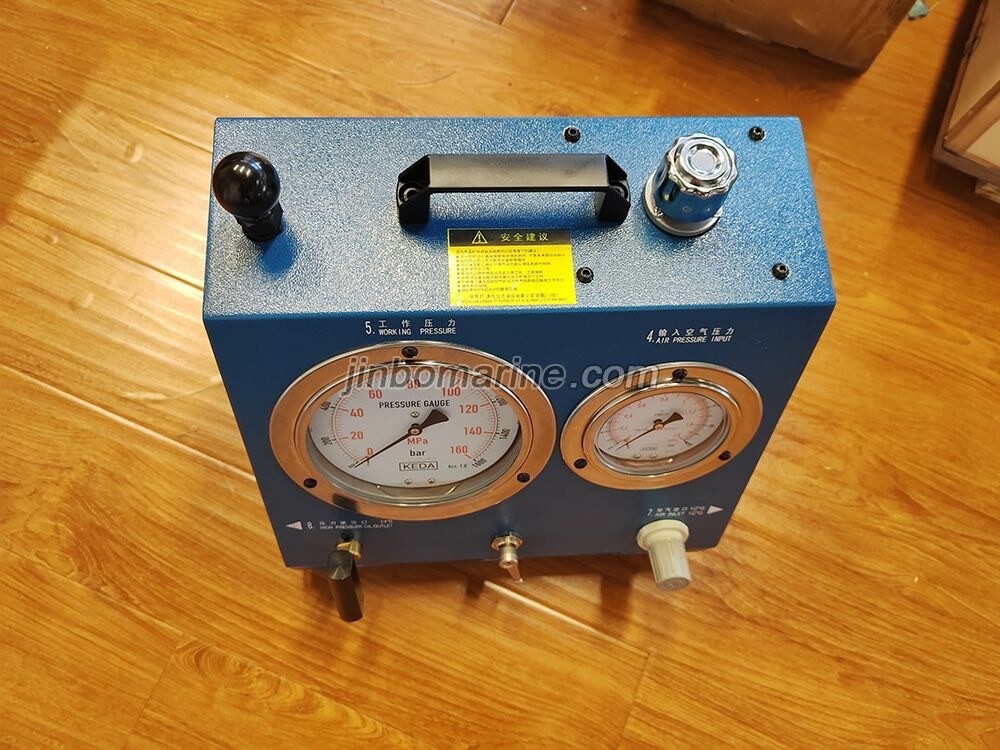

AHP1500 pneumatic hydraulic pump Air-Driven High Pressure Pump

OUTPUT PRESSURE(Bar):

MAX,1500 BAR AT8.0 BAR AIR INPUT.

MAX,1050 BAR AT5.5 BAR AIR INPUT.

TANK CAPACITY（L）:

APPROX.3.5 LITRES.

PUMPING SPEED:

APPROX.550 CYCLES/MIN.AT8.0 BAR AIR INPUT.

AIR CONSUMPTION:

500 LITRED/MIN.AT 8.0 BAR AIR INPUT.

MAX,FLOW AT NO PRESSURE:

APPROX. 0.35 LITRES/MIN.AT 8.0 BAR AIR INPUT.

APPROX. 0.20 LITRES/MIN.AT 5.5 BAR AIR INPUT.

DISPLACEMENT PER CYCIE:

0.45CM³.

WEIGHT（Kg）

16 KILOS EMPTY

DIMENSIOND（mm）

340*320*380MM

AIR ACCESS PORT

1/2B.S.P.STANDARD INTERNAL THREAD

HIGH-VOLTAGE OUTPUT

1/4B.S.P.STANDARD INTERNAL THREAD
