Air Conditioning Pump
- Category:Diaphragm Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

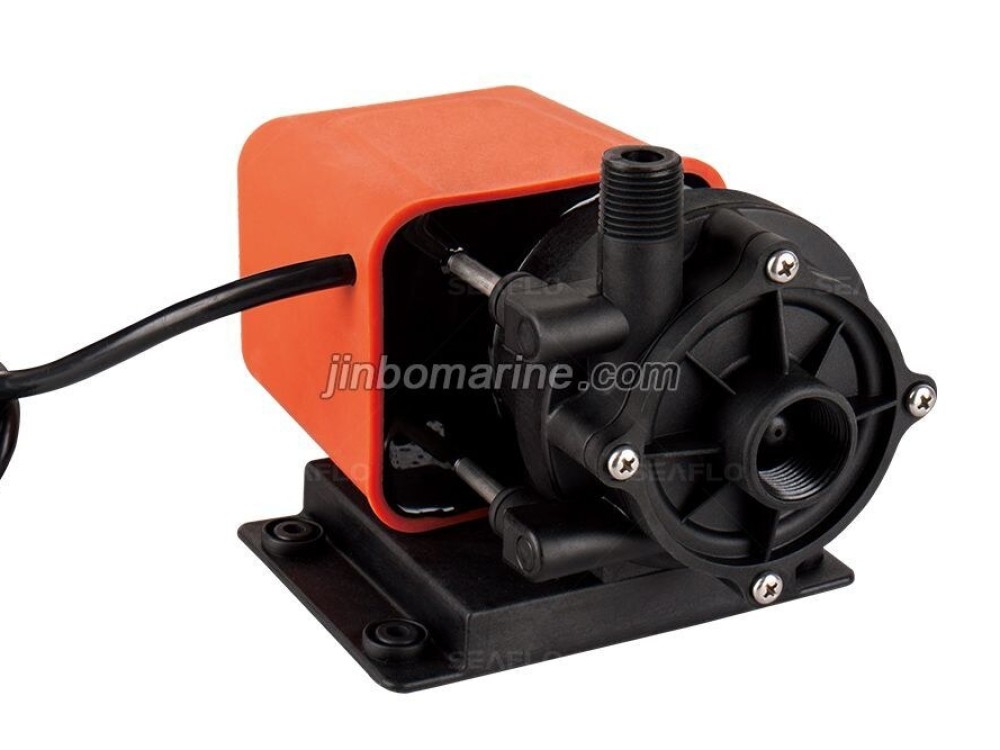

Air Conditioning Pump

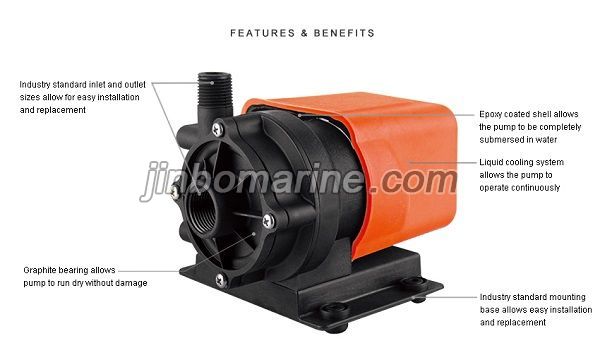

The SEAFLO Magnetic Circulation Pump is a centrifugal magnetic drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water, have a higher viscosity.
|
|
|||||||||||||||
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Flow Rate |
Frequency |
Head |
Power |
Amps Draw |
| SFCPA1-G500-01 | 115 V | 8.5 GPM | 60 Hz | 19 ft / 8.2 psi | 115 W | 1.8 A |
|
31 LPM |
50 Hz |
4.3 m |
110 W |
1.9 A |
||
| SFCPA2-G500-01 | 230 V |
8.5 GPM |
60 Hz |
19 ft / 8.2 psi |
110 W | 0.9 A |
|
31 LPM |
50 Hz |
4.3 m |
105 W |
0.9 A |
