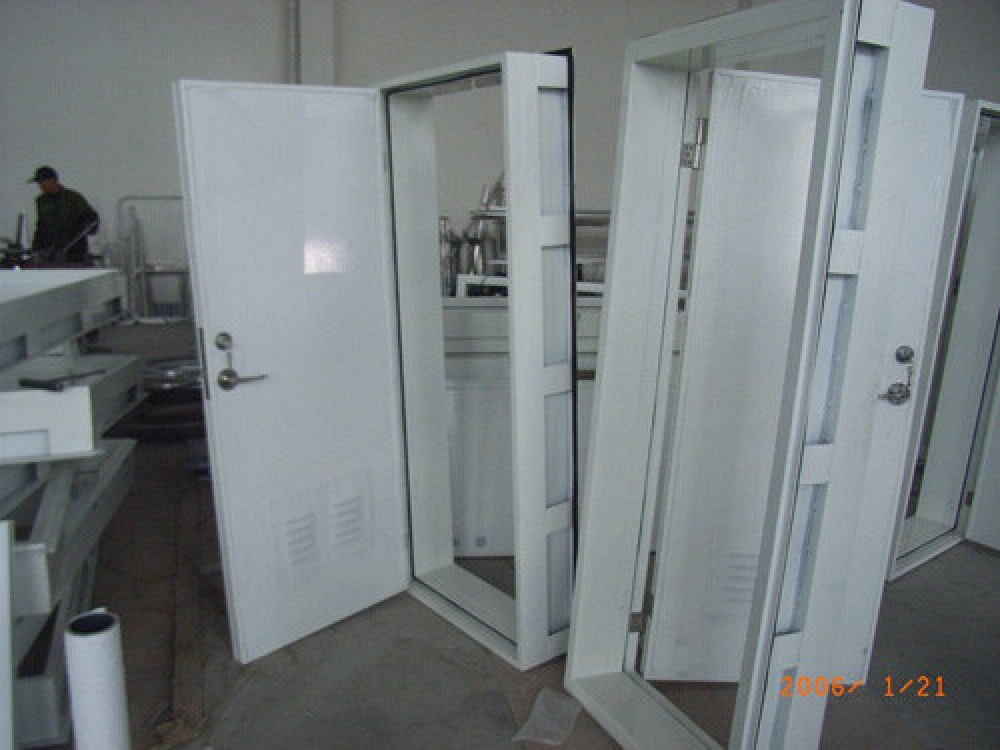

Aluminum Hollow Cabin Door

  • Category:Marine Door
  • Material:Aluminum
  • Standards:CB/T3281-97
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

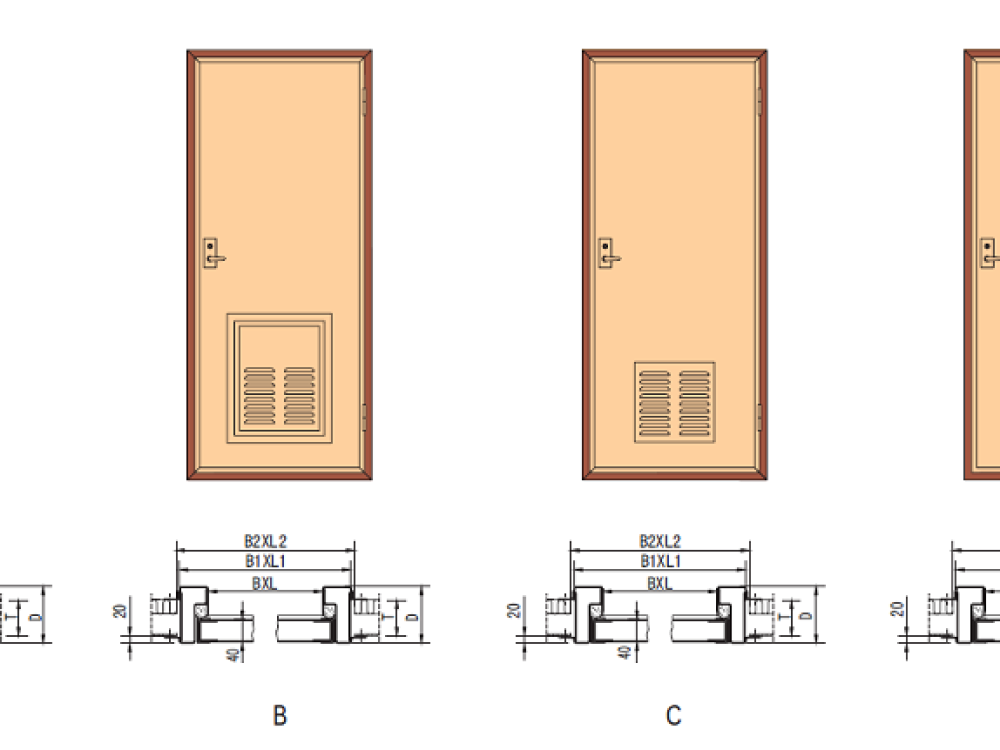

Aluminum Hollow Cabin Door Drawing

Aluminum Hollow Cabin Door Drawing

China Aluminum Hollow Cabin Door:

Standard: CB/T3281-97

It is used as the cabin door of various kinds of ships and war ships.The door face will be anodized baking finished or PV covered.


A-aluminum hollow cabin door

B-aluminum hollow cabin door with emergency exit

C-aluminum hollow cabin door with ventilation louver

D-aluminum hollow cabin door with window

*When order, pls specify single bulkhead or insulation bulkhead. And also the opening direction is requested.

Main Size List(mm):

Doorway Size Door Leaf Size Wall Cut Out Size
600X1600 624X1624 680X1680
650X1650 674X1674 730X1730
700X1750 724X1774 780X1830
800X1750 824X1774 880X1830
