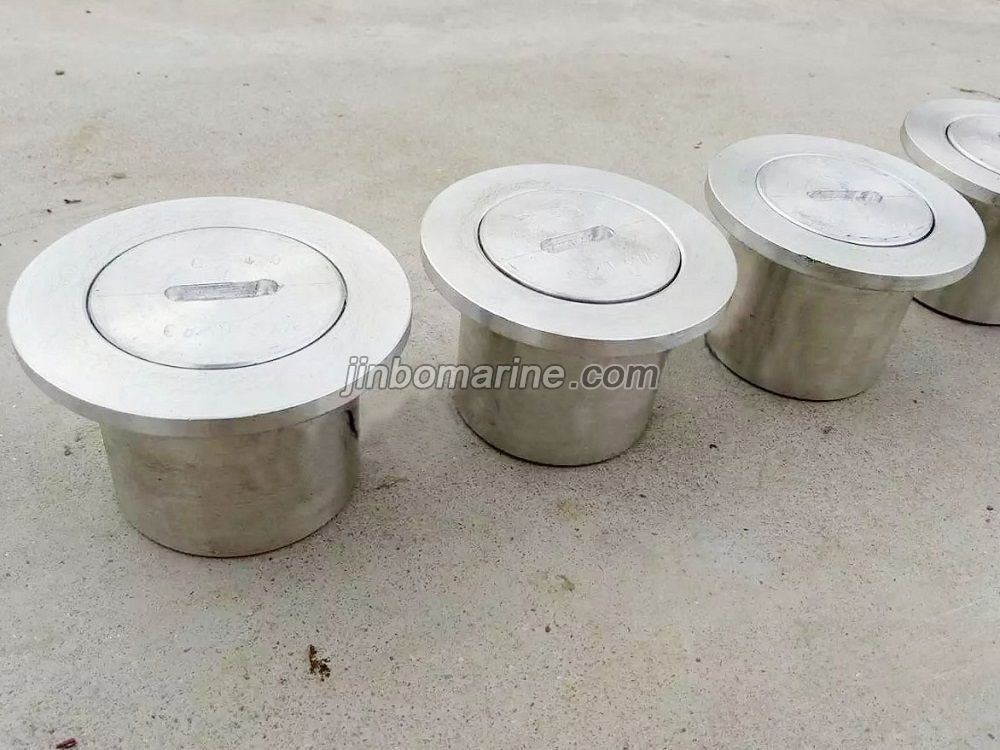

Aluminum Sounding Pipe Head
- Category:CB Marine Sounding Device
- Material:Aluminum
- Standards:CB/T3778-1999, JIS F3002
- Certificate:MILL CERTIFICATE
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Aluminum Sounding Pipe Head:
Aluminum Sounding Pipe Head is used on the aluminum boat to reduce the total weight of the boat.
Sounding pipe plug is also called as sounding pipe head, sounding head, inject head.
Seal Test Way: with the water pressure 0.11Mpa, and last for 5minutes.
Standard: CB/T3778-1999, JIS F3002
Material:
1-Body: Aluminum
2-Cover:Aluminum
3-Gasket: NBR
Main Size List(mm):
| DN | H | D1 | D2 | D3 | a | B | d | D | b | Weight(kgs) |
| 40 | 60 | 64 | 50 | 70 | 34 | 6 | M45*3 | 90 | 6 | 0.96 |
| 50 | 65 | 76 | 62 | 82 | 34 | 6 | M60*3 | 113 | 6 | 1.4 |
| 65 | 70 | 96 | 82 | 102 | 34 | 6 | M76*3 | 125 | 6 | 1.82 |
| 80 | 75 | 109 | 93 | 115 | 55 | 10 | M90*3 | 145 | 10 | 2.81 |
| 100 | 80 | 134 | 118 | 140 | 55 | 10 | M115*3 | 170 | 10 | 4.62 |
| 150 | 100 | 188 | 172 | 194 | 55 | 10 | M165*3 | 210 | 10 |
9.58 |
