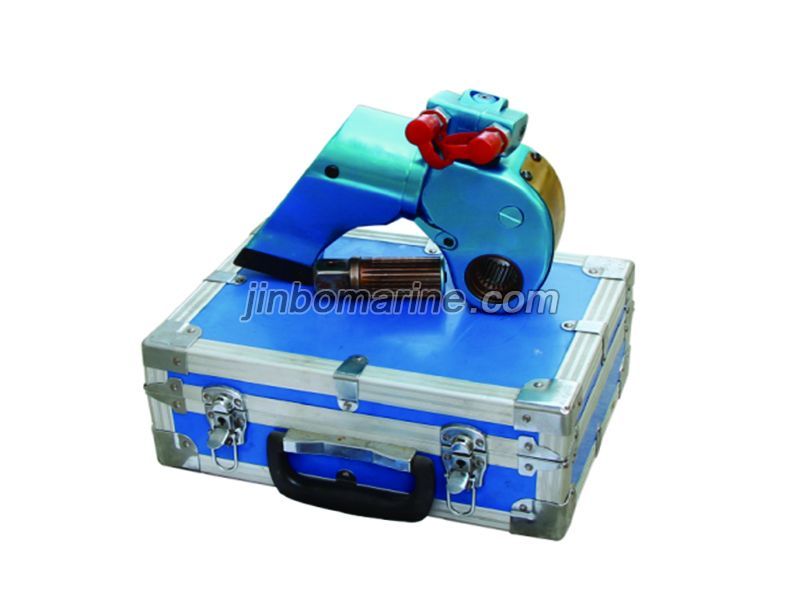

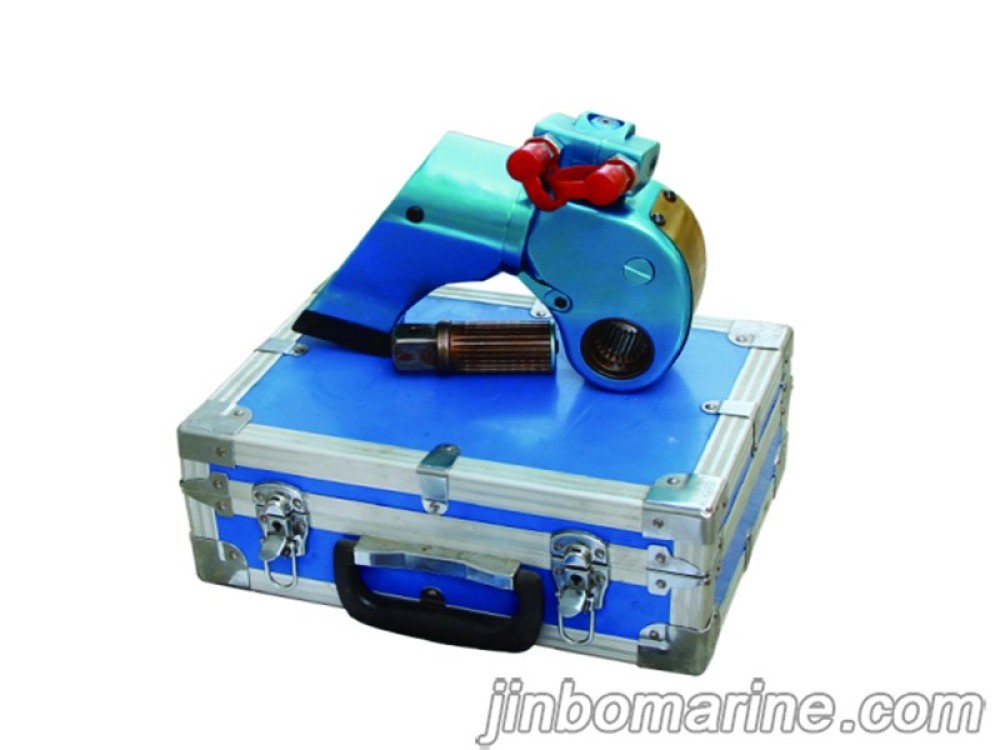

Aluminum-Titanium Drive Hydraulic Wrench
- Category:Marine Tools
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Aluminum-Titanium Drive Hydraulic Wrench:
Aluminum-Titanium Drive Hydraulic Wrench
Product features:
Using aluminum-titanium alloy material, the body is integrally formed, and the strength and toughness of the body are comprehensively strengthened;
360°x 180°rotating hose joint, can be used in a small space, adopts precision ratchet, and the output torque accuracy is up to ±3%;
The back stopper prevents the reversal of the tool caused by the torsional rebound of the bolt, and quickly increases the nut locking speed;
The wrench body has an easy-to-operate torque comparison table, and the oil filling hole is beneficial to prevent mechanical wear.
This model can also be changed to a non-stop return lock according to user requirements, which is beneficial to the operation and use of people with different habits;
The lock-type drive shaft can be customized according to user requirements;
Customize various forms of square drive;
The movable handle is easy to move and operate.
| Model | MTH02 | MTHO5 | MTHO8 | MTH10 | MTH16 | MTH20 | MTH28 | MTH36 | MTH50 | MTH70 | |
| Max.torque (Nm) | 1882 | 4466 | 7451 | 10732 | 15339 | 20108 | 26392 | 35397 | 48740 | 70660 | |
| Min.torque (Nm) | 188 | 447 | 745 | 1073 | 1536 | 2011 | 2639 | 3540 | 4874 | 7066 | |
| Nut side dimension (mm) | 16-36 | 22-48 | 27-55 | 30-64 | 36-72 | 42-90 | 42-90 | 48-100 | 64-120 | 90 | |
| Drive shaft | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2 " | 2-1/2 " | 2-1/2 " | 2-1/2 " | 2-1/2" | |
| L1(mm) | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 | 376 | |
| L2(mm) | 182 | 249 | 286 | 326 | 336 | 391 | 433 | 464 | 494 | 528 | |
| H1(mm) | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 | 162 | |
| H2(mm) | 77 | 98 | 125 | 134 | 144 | 164 | 187 | 206 | 217 | 226 | |
| H3(mm) | 96 | 127 | 149 | 172 | 181 | 206 | 221 | 258 | 279 | 291 | |
| H4(mm) | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 293 | 315 | 326 | |
| R1(mm) | 25.8 | 34.8 | 39.8 | 16.8 | 50.8 | 56.8 | 59.8 | 70.8 | 76.8 | 78.9 | |
| R2(mm) | 102 | 140 | 160 | 184 | 192 | 223 | 248 | 256 | 271 | 295 | |
| Weight (Kg) | 1.7 | 3.8 | 6.6 | 9 | 12.9 | 24.5 | 24.5 | 30.7 | 44.8 | 63.2 | |



































































































































































































































































































.jpg)
