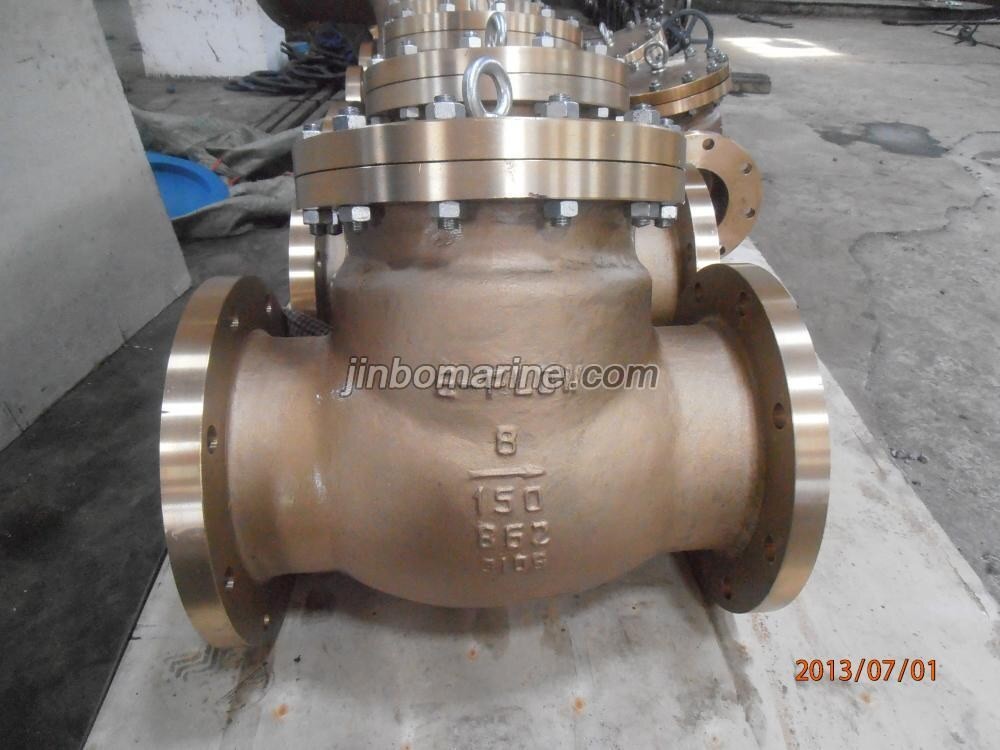

API Bronze Swing Check Valve
- Category:Check Valve
- Material:Bronze
- Standards:BS1868 & API 6D
- Certificate:Mill Certificate
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Standard:
Design Standard: BS1868 & API 6D
Face to Face: ANSI B16.10 & API 594
Flange Standard: ANSI B16.5
Temperature & Pressure: ANSI B16.34
Test Standard: API 598
Test Pressure:
| Nominal Pressure (Lb) | Shell Strength Test | Water Seal Test | Air Seal Test | |||
| MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| 150 | 3 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | ||
| 600 | 15.3 | 2220 | 11.3 | 630 | ||
| 900 | 23 | 3330 | 17 | 2445 | ||

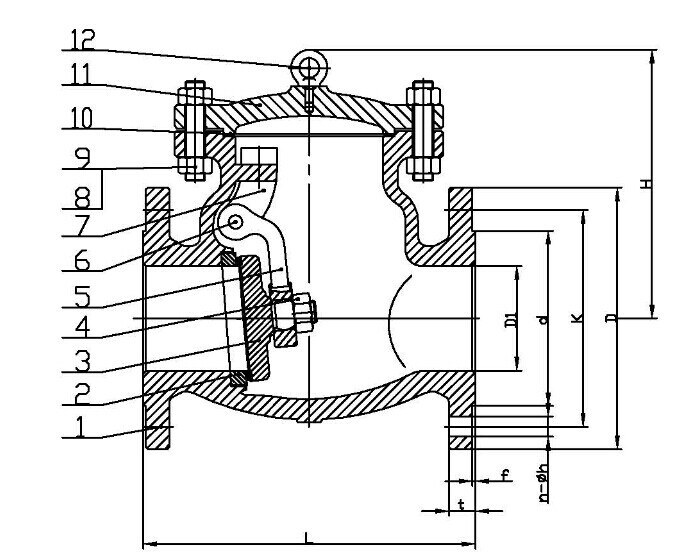

Main Parts & Material:
Body---Bronze
Bonnet---Bronze
Disc---Bronze
Rock Arm---Bronze
Hinge Pin---Bronze
Bolts & Nuts---Carbon Steel or Stainless Steel
Main Size List(mm):
| Size | 150Lb、10K | 300Lb、20K | 600Lb | 900Lb | |||||
| in | mm | L(RF) | H | L(RF) | H | L(RJ) | H | L(RJ) | H |
| 2 | 50 | 203 | 165 | 267 | 190 | 292 | 210 | 372 | 335 |
| 2 1/2 | 65 | 216 | 175 | 292 | 205 | 330 | 230 | 422 | 370 |
| 3 | 80 | 241 | 190 | 318 | 220 | 356 | 255 | 384 | 300 |
| 4 | 100 | 292 | 215 | 356 | 245 | 432 | 295 | 460 | 340 |
| 6 | 150 | 356 | 265 | 444 | 295 | 559 | 365 | 613 | 425 |
| 8 | 200 | 495 | 320 | 533 | 330 | 660 | 420 | 740 | 490 |
| 10 | 250 | 622 | 356 | 622 | 420 | 787 | 505 | 841 | 585 |
| 12 | 300 | 698 | 415 | 711 | 480 | 838 | 545 | 968 | 655 |
| 14 | 350 | 787 | 460 | 838 | 535 | 889 | 600 | 1038 | 710 |
| 16 | 400 | 864 | 495 | 864 | 585 | 991 | 650 | 1140 | 765 |
| 18 | 450 | 978 | 590 | 978 | 615 | 1092 | 735 | 1232 | 810 |
