Apron Sand Blasting Machine
- Category:Shot Blasting Machine
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

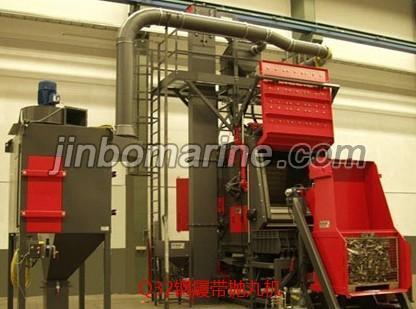

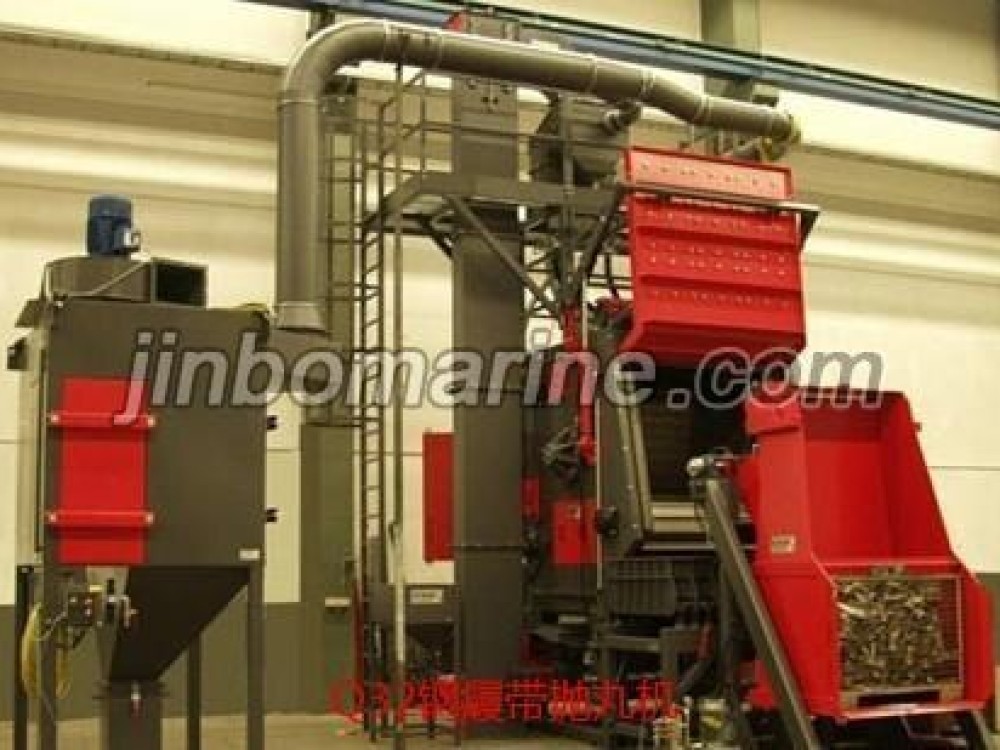

China Apron Sand Blasting Machine:
It is the most popular type among all shot blasters as their design makes them suitable for processing parts of all kind of sizes in bulk loads.
Work pieces from small to big metal parts or casting parts can be blasted in these machines.
The machine consists of an endless conveyor belt with high resistance to wear, abrasive separator and dust collector.
Specification:
| Type parameter | Q326 | Q3210 | QR3210 |
| Producitivity (T/H) | 0.6-1.2 | 3-5 | 1.5-2.5 |
| Loading weight (KG) | 200 | 800 | 600 |
| The maximum weight of | 10 | 15 | 30 |
| one piece (KG) | |||
| Diameter of roller (MM) | 650mm | 1000mm | 1000mm |
| Available capacity (M3) | 0.15 | 0.4 | 0.3 |
| Blasting capacity (KG/MIN) | 100 | 250 | 250 |
| Dedusting air volume (M3/H) | 2200 | 6000 | 5000 |
| Power consumption (KW) | 12.6 | 32.6 | 24.3 |
| Appearance dimension (MM) | 3681*1650*5800 | 3644*2926*5856 | 3972*2600*4768 |
| Total weight of machine (KG) | 2340kgs | 5843kgs | 7400kgs |
