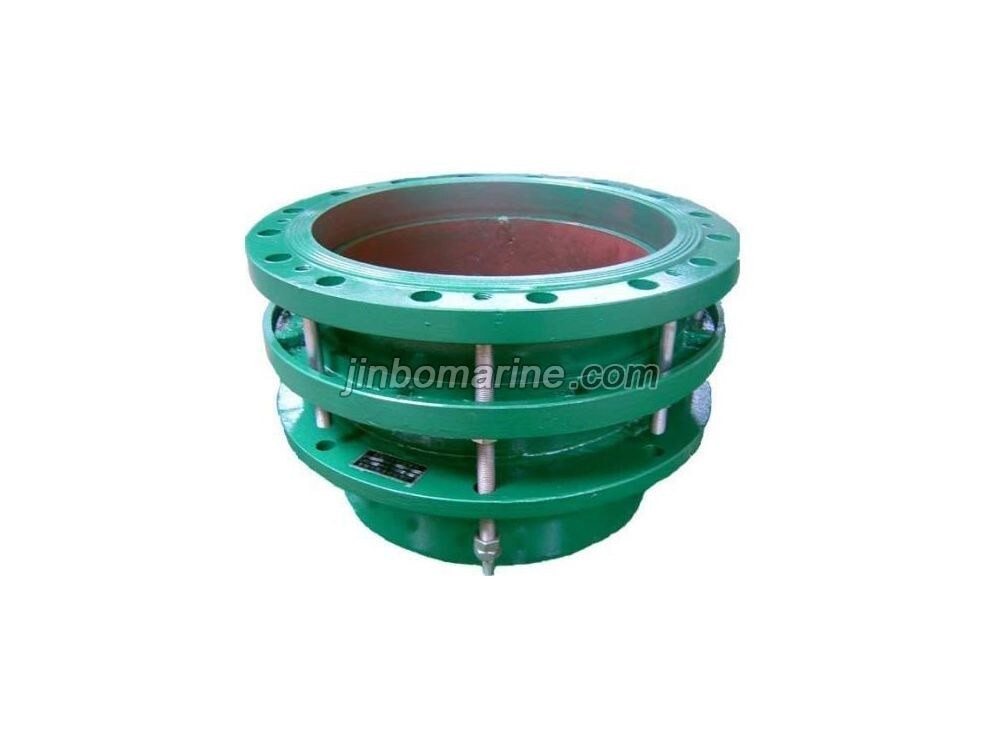

BFL Flange Type Limited Expansion Joint

Request a Quote Not what you need, please send your RFQs via Email.

Details

China BFL Flange Type Limited Expansion Joint:

Limited expansion joint is form by adding a limit device to the basic sleeve type expansion joint and locked at maximum expansion by double nut. The pipeline can thus freely in certain limit. When maximum valve id reached, it will be limited and effectively assure the pipeline working safety. Limited expansion joint is especially for pipeline connection where vibration occur, where taper connection requested and for bend pipeline connection.

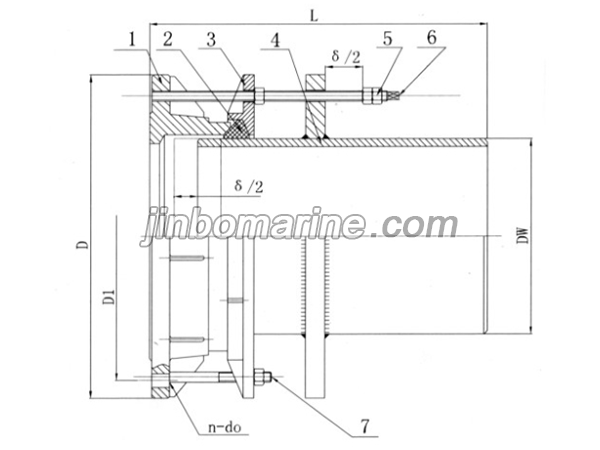

No Name Quantity Material
1 Body 1 QT400-15,Q235
2 Sealing Ring 1 NBR,NR,FPM
3 Follower 1 QT400-15,Q235
4 Lingted Short Pipe 1 Q235,20,16Mn
5 Nut 4n Q235,35,304
6 Long Bolt n Q235,35,304
7 Bolt n Q235,35,304

BFL Flange Type Limited Expansion Joint Main Specifications

DN Pipe DW Pipe DO Length Compensation Flange connecting dimension
0.6MPa 1.0MPa
L L1 D D1 D D1
65 76 76 340 105 50 160 130 185 145
80 89 89 340 105 50 190 150 200 160
100 108 108 340 105 50 210 170 220 180
114 114 340 105 50 210 170 220 180
125 133 133 340 105 50 240 200 250 210
140 140 340 105 50 240 200 250 210
150 159 159 340 105 50 265 225 285 240
168 168 340 105 50 265 225 285 240
200 219 219 340 105 50 320 280 340 295
250 273 273 340 105 50 375 335 395 350
300 325 325 350 130 65 440 395 445 400
350 377 377 350 130 65 490 445 505 460
400 426 426 350 130 65 540 495 565 515
450 480 480 350 130 65 595 550 615 565
500 530 530 350 130 65 654 600 670 620
600 630 630 350 130 65 755 705 780 725
700 720 720 350 130 65 860 810 895 840
800 820 820 590 220 130 975 920 1015 950
900 920 920 590 220 130 1075 1020 1115 1050
1000 1020 1020 590 220 130 1175 1120 1230 1160
1200 1220 1220 590 220 130 1405 1340 1455 1380
1400 1420 1420 590 220 130 1630 1560 1675 1590
1500 1520 1528 590 220 130 1730 1660 1795 1705
1600 1620 2628 590 220 130 1830 1760 1915 1820
1800 1820 2828 590 220 130 2045 1970 2115 2020
2000 2020 2030 590 220 130 2265 2180 2325 2230
2200 2220 2230 590 220 130 2475 2390 2550 2440
2400 2420 2430 590 220 130 2685 2600 2760 2650
2600 2620 2630 600 240 140 2905 2810 2960 2850
2800 2820 2830 600 240 140 3115 3020 3180 3070
3000 3020 3030 600 240 140 3315 3220 3405 3290
3200 3220 3230 600 240 140 3525 3430 3615 3480
3400 3420 3430 600 240 140 3735 3640 3825 3690
3600 3620 3360 600 240 140 3970 3960 4145 4050
