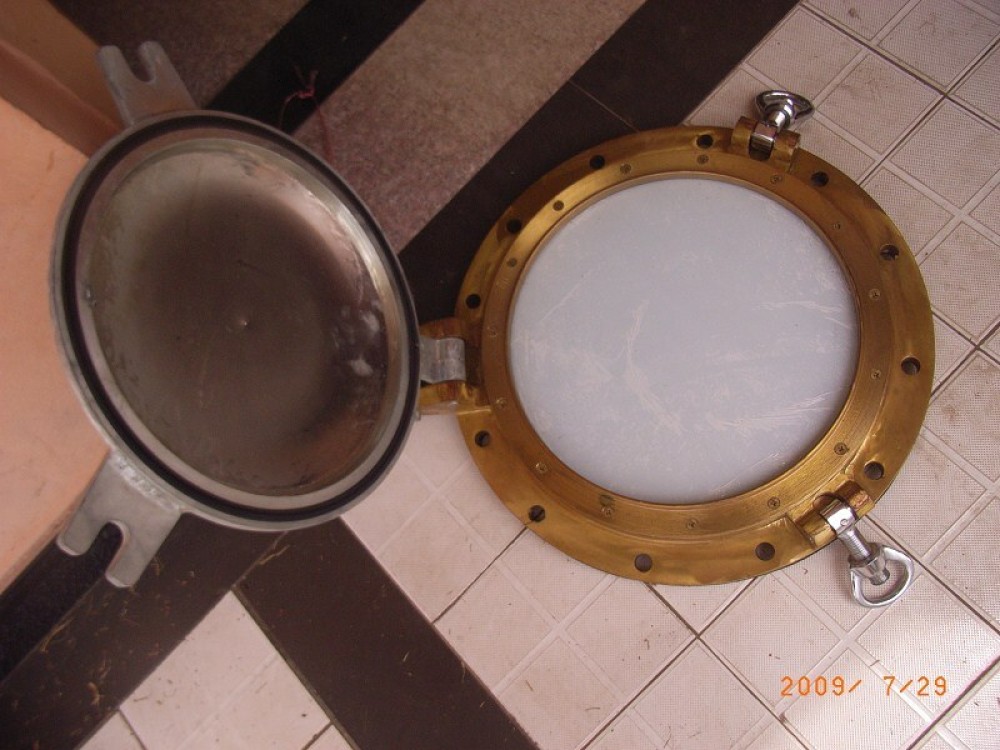

Brass Opening Side Scuttle With Deadlight

  • Category:Marine Window
  • Material:Copper
  • Standards:GB/T14413-93
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Side Scuttles for Ships Details:

Standard: GB/T14413-93

It is also be called as porthole, the material can be aluminum, copper or steel, is used for sea-going ships and warships, also can be used for inland ship.

The side scuttle can be with or without deadlight, the deadlight also be called as storm cover.

1. List for model of side scuttle and the principal characteristics of scope

Name

Type

Clear Size (D)

Opening Type

Mounting Type

Material code number

Opening and fastening type of deadlight

Glass

ApplicationPlace

Opening

Non-opening

Bolted

Welded

Heavy

A

200

Left opening type, right opening type, common hinge type

Fixed type

Bolted or welded

112

212 or 222

Hook (G) or Pawl (J)

Transparent or Frosted

The spaces below bulkhead deck or freeboard of marine ships, which are allowed to cut openings on the sides and required to be watertight and gastight

250

300

350

400

Medium

B

200

112 or 222 or 333

212 or 222 or 233

The sides above bulkhead deck or free board deck of passenger ships, or the ends o superstructures. Both sides and ends of the first tier of superstructure on the freeboard deck of ships other than passenger ship.

250

300

350

400

450

Light

C

200

Opening

220 or 330 or 110

210 or 220 or 230

Nothing

The sides and rear-ends of first tier of superstructure above bulkhead deck or freeboard deck of passenger ships or all tiers above the first tier of superstructure. The sides and rear-ends of all tiers above the first tier of superstructure on free board deck of ships other than passenger ships.

2. Material code numbers indicate combinations of the material code number for main frame, glass holder, deadlight.

Material code number

Material

Demonstration

1

Copper

1. if the steel(2) main frame, copper(1) glass holder, steel(2) deadlight, the material code number is 212.

2. If aluminum(3) frame, aluminum(3) glass holder, without deadlight(0), the material code number is 330.

2

Steel

3

Aluminum

0

Without deadlight

3.Opening and fastening models of deadlight:

Clear Size (D)

200

250

300

350

400

450

minimum distance of side scuttle centre to ceiling

Paw (J)

300

350

400

450

540

580

Hook (G)

selected by user

4.Main Size List(mm):

Model D D1 D2 D3 D4 D5 h t a No of fasterners Bolts for installation Wall Cut Out Size
Deadlight Glass Holder Thread Quantity
A LB,RB,SB,NB 200 245 204 250 350 310 155 8 45° 2 3 M12 8 253
250 295 254 305 400 363 182 8 48° 2 3 M16 8 308
300 350 304 360 450 414 207 10 31° 3 3 M16 12 363
350 400 354 410 500 464 232 12 31° 3 3 M16 12 413
400 450 404 460 550 514 257 12 31° 3 3 M18 12 463

Model D D1 D2 D3 D4 D5 h t a No of fasterners Bolts for installation Wall Cut Out Size
Deadlight Glass Holder Thread Quantity
B LB,RB,SB,NB 200 245 204 250 350 310 155 8 45° 2 3 M12 8 253
250 295 254 305 400 363 182 8 48° 2 3 M16 8 308
300 350 304 360 450 414 207 10 31° 3 3 M16 12 363
350 400 354 410 500 464 232 12 31° 3 3 M16 12 413
400 450 404 460 550 514 257 12 31° 3 3 M18 12 463
450 500 454 510 600 564 282 15 31° 3 4 M20 12 523

Model D D3 D4 t Bolts for installation Wall Cut Out Size
Thread Quantity
C LB,RB,NB 200 250 350 6 M12 8 253
250 305 400 6 M16 8 308
300 360 450 8 M16 12 363
350 410 500 8 M16 12 413
400 460 550 10 M18 12 463
450 510 600 10 M20 12 523
