Brass Souding Pipe Head CB/T3778 Type A
Brass Sounding Pipe Head is also called as brass plug, sounding head, inject head. Type A is flush type. Brass sounding pipe head must pass the seal test with the water pressure 0.11Mp...
Loading product images...
Brass Souding Pipe Head CB/T3778 Type A
PDF Datasheet
We can supply according to your requirement.
China Brass Souding Pipe Head CB/T3778 Type A:

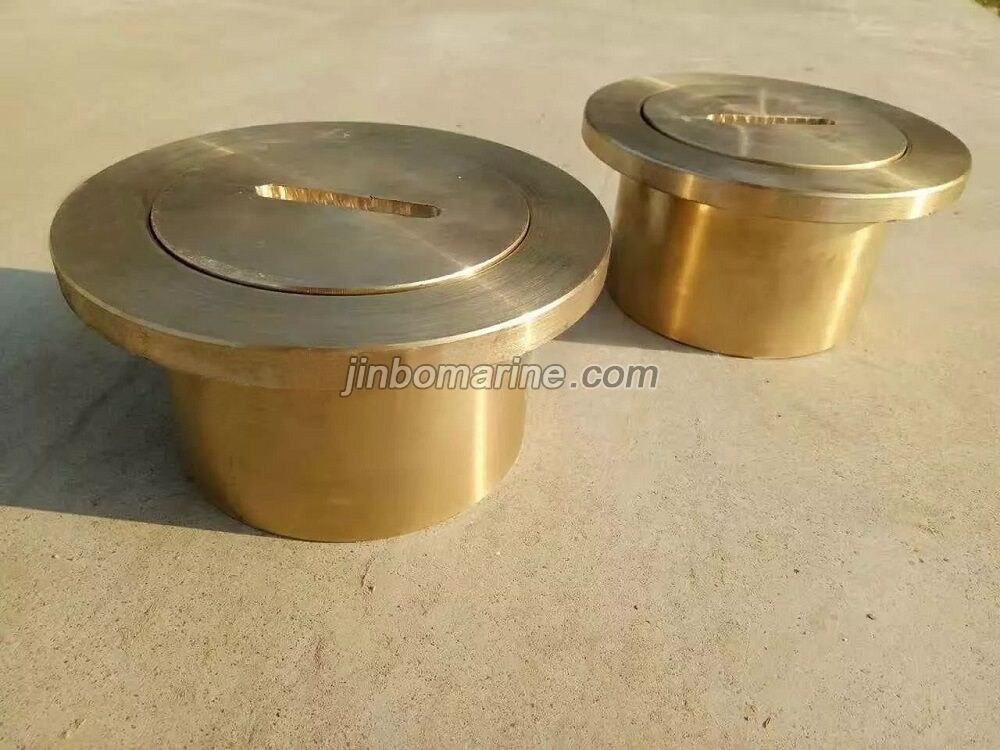

Brass Sounding Pipe Head is also called as brass plug, sounding head, inject head. Type A is flush type.
Brass sounding pipe head must pass the seal test with the water pressure 0.11Mpa, and last for 5minutes.
Standard: CB/T3778-1999, JIS F3002
Material:
1-Body: Brass
2-Cover: Brass
3-Gasket: NBR
Main Size List(mm):
| DN | H | D1 | D2 | D3 | a | B | d | D | b | Weight(kgs) |
| 40 | 60 | 64 | 50 | 70 | 34 | 6 | M45*3 | 90 | 6 | 0.96 |
| 50 | 65 | 76 | 62 | 82 | 34 | 6 | M60*3 | 113 | 6 | 1.4 |
| 65 | 70 | 96 | 82 | 102 | 34 | 6 | M76*3 | 125 | 6 | 1.82 |
| 80 | 75 | 109 | 93 | 115 | 55 | 10 | M90*3 | 145 | 10 | 2.81 |
| 100 | 80 | 134 | 118 | 140 | 55 | 10 | M115*3 | 170 | 10 | 4.62 |
| 150 | 100 | 188 | 172 | 194 | 55 | 10 | M165*3 | 210 | 10 | 9.58 |
