Bronze BSP Female Threaded Globe Valve
- Category:JIS Marine Globe Valve
- Material:Bronze
- IMPA Code:755101~755110
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

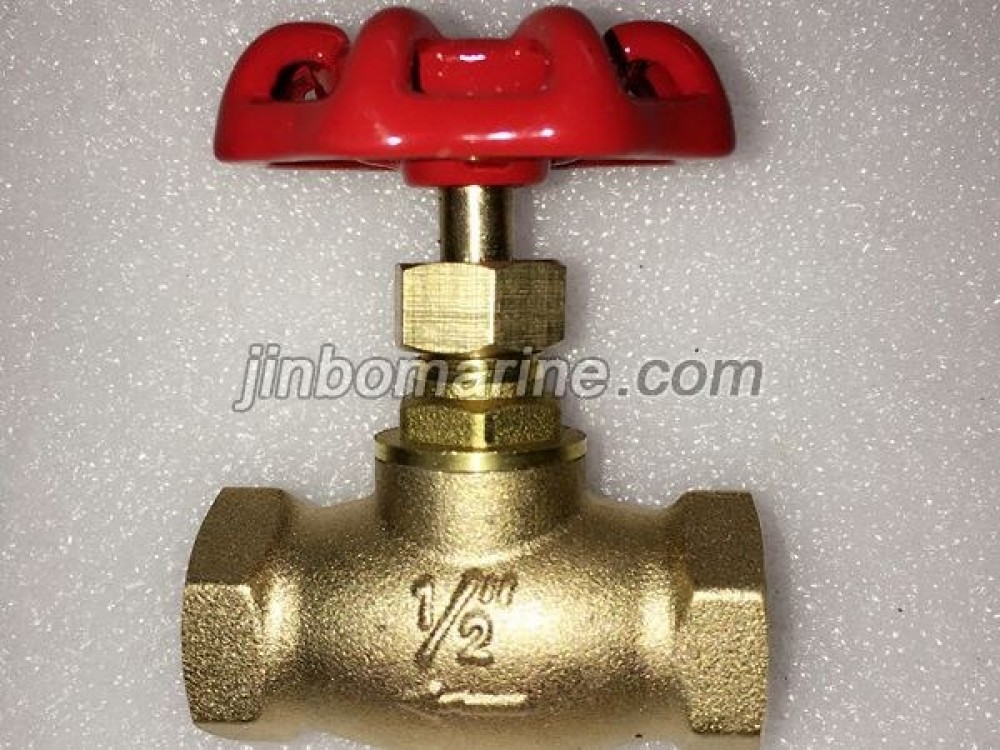

China Bronze BSP Female Threaded Globe Valve:
Bronze Globe Valve with threaded bonnet, metal seated, stragiht and angle pattern. BSP female threaded connection, inside srewed stem and rising handwheel.
Specification:
Application: water, oil, air, and gas
Max Pressure； 16Bar
Main Parts & Material:
1. Body---Bronze
2. Bonnet--Brass
3. Disc---Brass
4.Stem---Brass

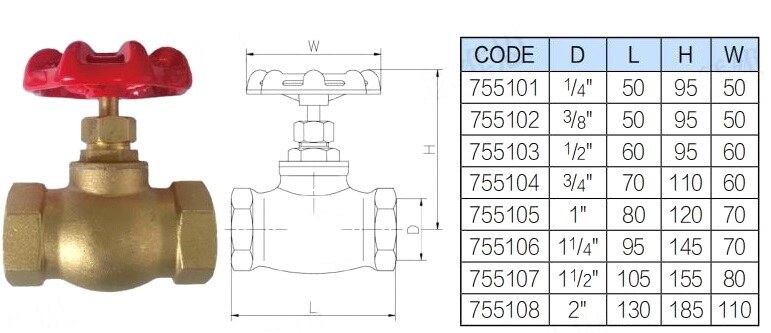

Main Size:
| IMPA CODE | DN | L | H | W |
| 755101 | 1/4" | 50 | 95 | 50 |
| 755102 | 3/8" | 50 | 95 | 50 |
| 755103 | 1/2" | 60 | 95 | 60 |
| 755104 | 3/4" | 70 | 110 | 70 |
| 755105 | 1" | 80 | 120 | 70 |
| 755106 | 1-1/4" | 95 | 145 | 70 |
| 755107 | 1-1/2" | 105 | 155 | 80 |
| 755108 | 2" | 130 | 185 | 110 |
| 755109 | 2-1/2" | 155 | 245 | 130 |
| 755110 | 3" | 180 | 280 | 150 |
