Cargo Crane
- Category:Marine Davit and crane
- Material:Cast steel
- Standards:standard
- Certificate:DNV,ABS,RINA,CCS,
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

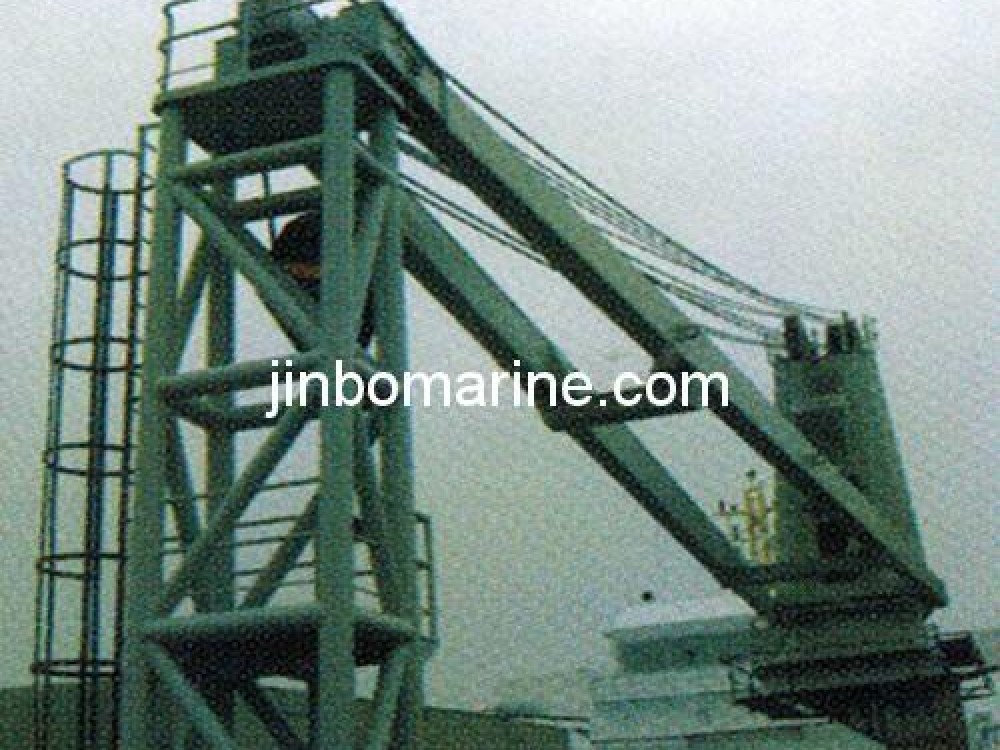

Cargo Crane
General description
The cargo crane is special equipment used on marine for lifting cargo. Design and manufacture of products comply in full compliance with current and applicable rules for lifting appliance.
Technical sheet
|
型号 Type |
工作负荷 SWL (t) |
跨距 Outreach max./min. (m) |
起升速度 Hoisting speed (m/min) |
回转速 度 slewingspeed (r/min) |
横倾/纵倾 List+Trim (degree) |
电机功率 Motor power (kw) |
| KXCC25 | 25 | 32/4.5 | 20/40 | 0-1 | 5+2 | 130 |
| KXCC30 | 30 | 32/4.5 | 20/40 | 0-1 | 5+2 | 160 |
| KXCC36 | 36 | 32/4.5 | 20/40 | 0-1 | 5+2 | 160 |
| KXCC40 | 40 | 32/4.5 | 20/40 | 0-1 | 5+2 | 190 |
| KXCC45 | 45 | 32/4.5 | 20/40 | 0-1 | 5+2 | 210 |

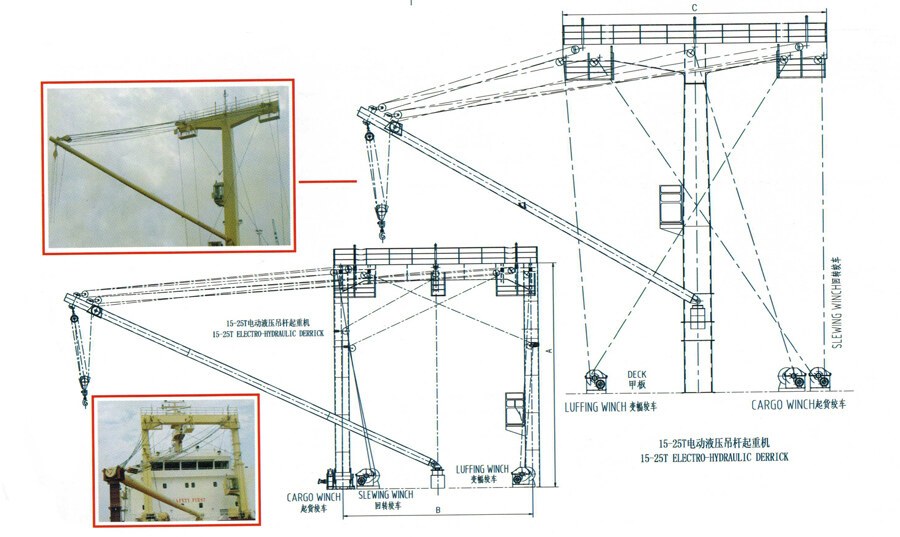

Installation drawing
