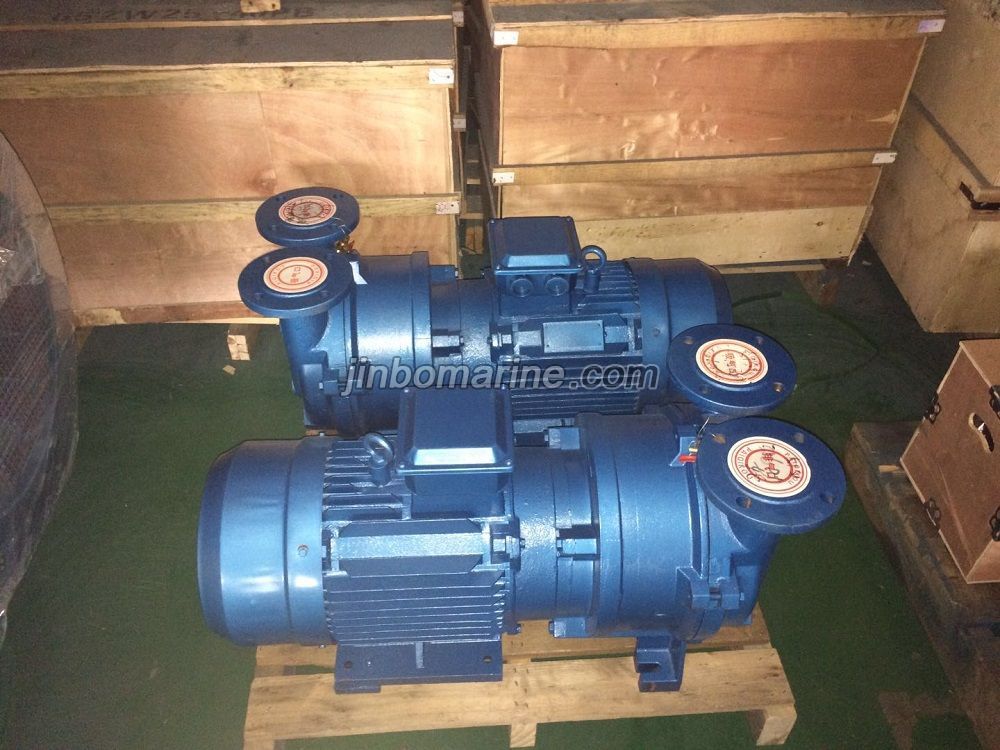

CDF Series Water Ring Vaccum Pump
- Category:Vacuum Pump
- Material:Cast iron pump cast, Bronze/SS316 impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CDF Series water ring vaccum pump
CDF series is widely used in marine industry.
Main Specification
| Type | Motor rated output | Max capacity | Working liquid | Weight |
| (kw) | (m3/min) | (m3/h) | (kg) | |
| CDF120-0 | 1.1 | 0.45 | 0.2 | 34 |
| CDF121-0 | 1.5 | 0.83 | 0.25 | 37 |
| CDF122-0 | 2.2 | 1.08 | 0.3 | 40 |
| CDF140-0 | 3 | 1.33 | 0.4 | 55 |
| CDF220-0 | 4 | 2.41 | 0.5 | 102 |
| CDF221-0 | 5.5 | 3.43 | 0.6 | 122 |
| CDF240-0 | 7.5 | 4.62 | 0.75 | 140 |
| CDF260-0 | 11 | 6.43 | 0.9 | 190 |
