CGF-180 Reflector Magnetic Compass

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CGF-180 Reflector Magnetic Compass:

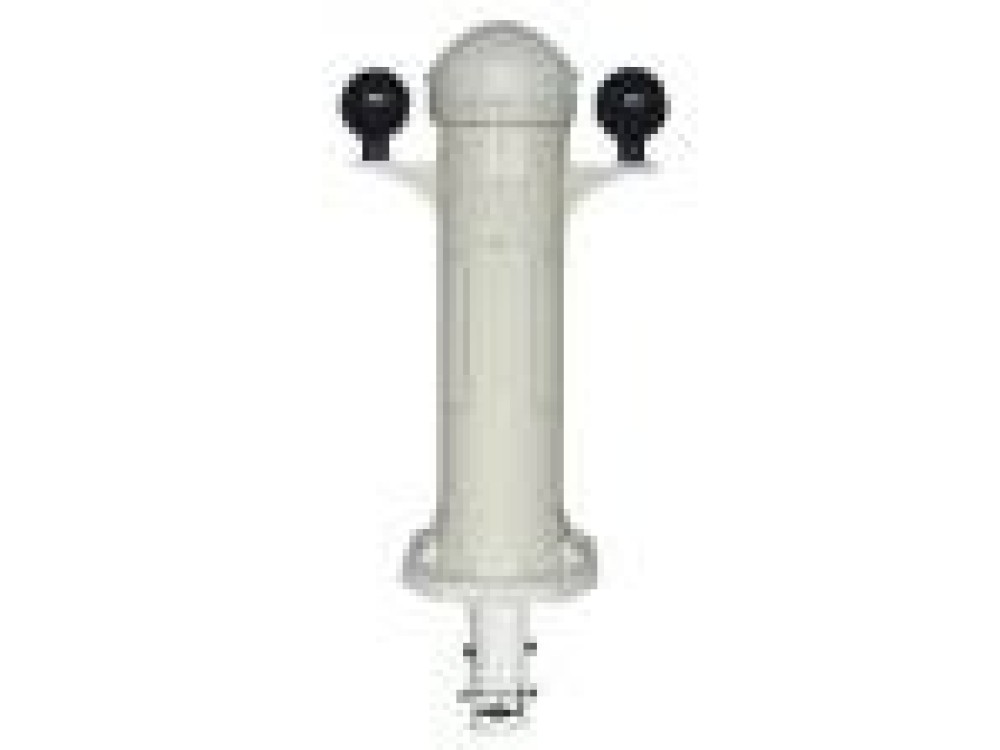

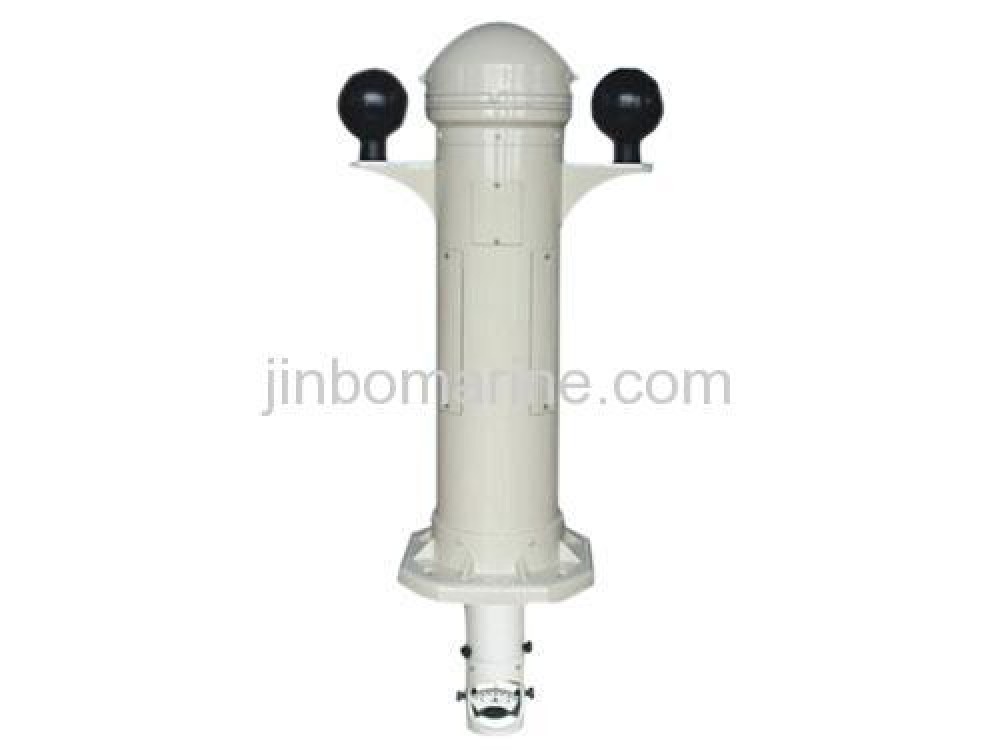

Our company has developed entirely new generational reflector magnetic compass . The product has the advantages of beautiful outline , clear and bright reflector dial , its performance are completely in accordance with the ISO 449 and IMO standard and requirement related to navigation equipment . The magnetic compass adopts new generational directional alnico and correctional alnico , it can raise the precision of magnetic compass and transducer by a large margin.

Components:

Magnetic compass:1pc

Projection tube:1pc The length of projection tube are seven kinds from300mmto900mmand could be made by special length following customer’s requirement.

Controlling box for light adjusting:1pc

Calibrating equipment(fitting case):1 set Main semicircle self heterodyne adjusting magnetic bar 8pcs

Spare parts:Projection lamp device 12pcs

Main technical parameters:

Dial diameter 180mm
Dial graduation 0°~360°1°for each grid
Using temperature -25℃~+70℃
Indicating deviation(H=35μT,T=20±3℃) ≤0.5°
Half period(H=35μT,T=20±3℃) ≥8.62S
Friction deviation(H=35μT,T=20±3℃) 0.09°
Main semicircle self heterodyne correcting energy 1°~45°
Secondary semicircle self heterodyne correcting energy 1°~6°(Magnetic inclination Q=15°)
Quodrant self heterodyne correcting energy 0.5°~10°
Inclining self heterodyne correcting energy -75~+75μT
Lens barrel flexing range ±100mm
Dial image expanding rate ≈2 times(original dial graduation)
Lighting power supply AC220V,DC24V
Outline Dimension 825x511x1359mm(Excluding the length of lens barrel)
Diameter of mounting holes Pitchrow 445ApertureΦ24
Weight 82kg.
