CK-1 8-96 Ways Users Auto-Telephone Exchanger

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China CK-1 8-96 Ways Users Auto-Telephone Exchanger:

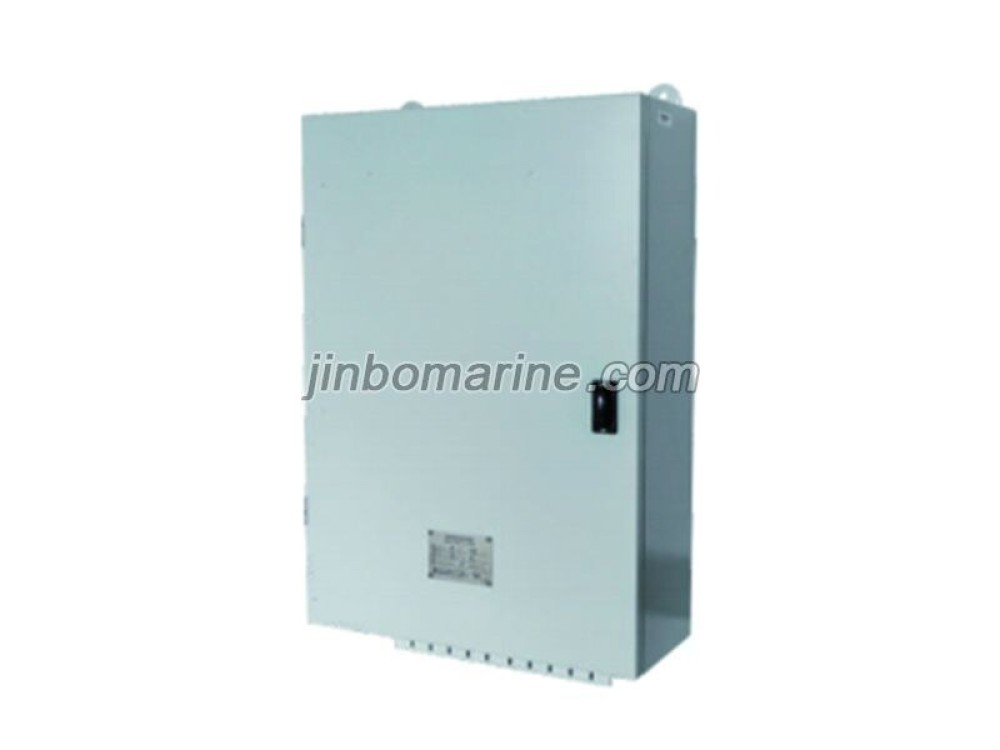

CK-1 8-96 Ways Users Auto-Telephone Exchanger

1)Chapter 1 of Part 4 of the “ Steel Ship Classification Rules" of the China Classification Society;
2)YD/T729-94 method for automatic exchanger network access;
3)GF002-9002.4 technique specification for automatic exchanger equipments in technical ministry of posts and tele communication.

NO. Type Gate number Power consumption Power supply Colour Shell material IP rating Weigjt
1 CK-1A 8-24 50 AC220V DC24V White RAL7035 Q235B IP22 14KGS
2 CK-1 35-56 150 AC220V DC24V White RAL7035 Q235B IP22 23KGS
3 CK-1B 64-96 150 AC220V DC24V White RAL7035 Q235B IP22 23KGS
