Claw Type Load Binder

Request a Quote Not what you need, please send your RFQs via Email.

Details

Size Table

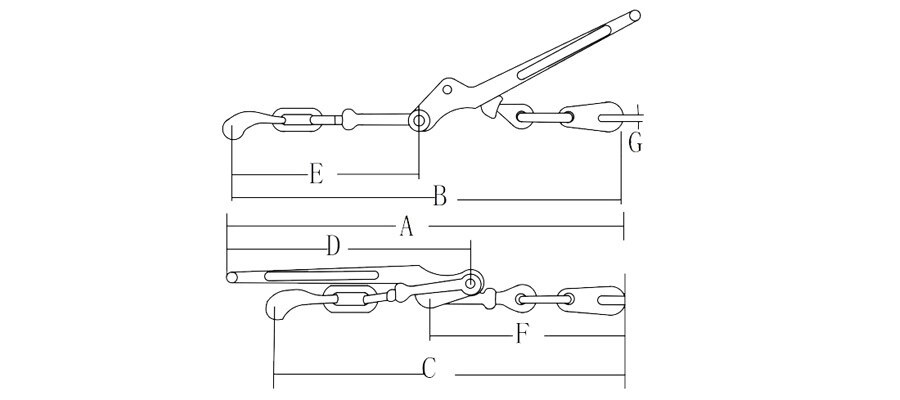

Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load Weight Handle Length Dimension(in)
(in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) A B C D E F G
JB50 1/4-5/16 2600 5200 7800 3.6 11.42 20.66 18.7 15.35 11.42 8.85 8.85 0.35
JB51 5/16-3/8 5400 10800 19000 8.56 15.43 25.2 25.2 21.46 15.55 12.2 12.2 0.47
JB52 3/8-1/2 9200 18400 28000 12.38 17.24 28.15 28.7 24.61 17.52 13.58 13.58 0.59
