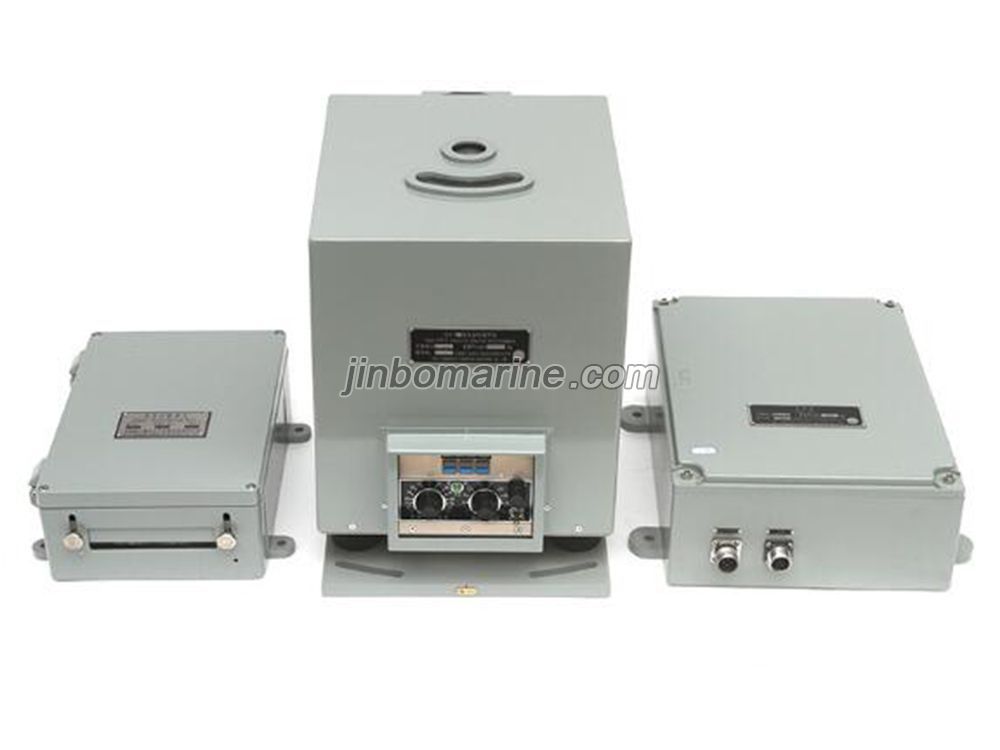

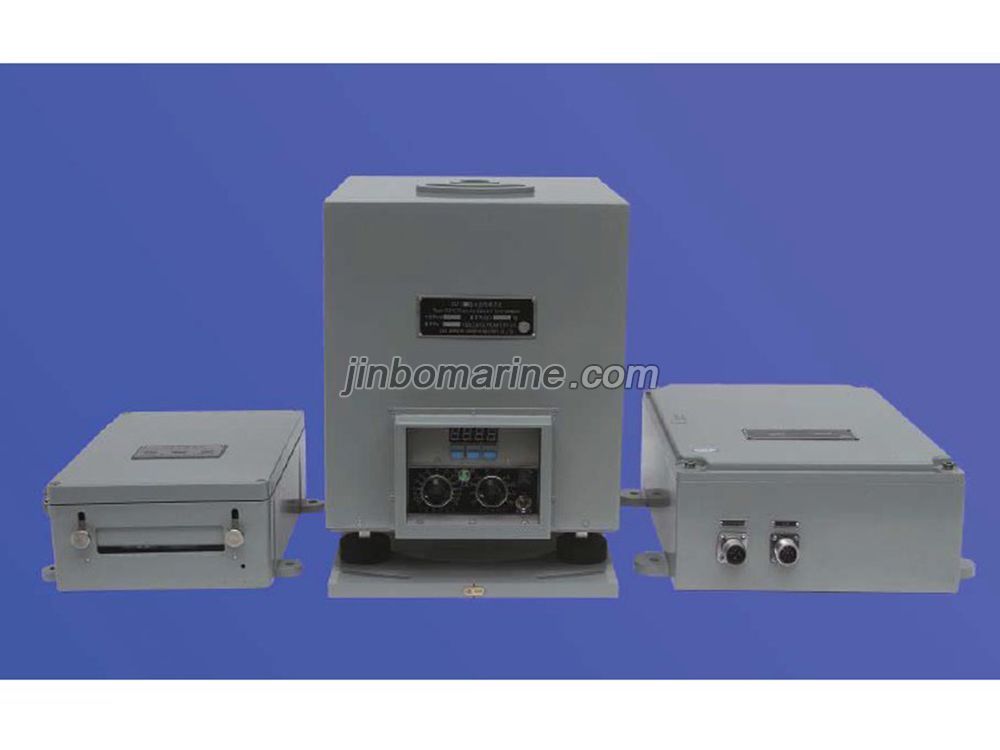

CLP-2AS electric compass is a digital compass. The main compass, power box and distribution unit can be installed in the console and connected by cable. This compass has equipped with a three-way damping and rapid stabilization device, having the advantages of fast start-up, stable output heading, high accuracy of output heading and etc.

The stable point error within ±0.5° × secφ.

The repeatability accuracy of stable point error ≤0.25 °× secφ.

Mean time between failures is more than 3000 hours, working accuracy is ±1.5°x Secφ

With Automatic fast stabilizing device. When course change 30°, it can enter into ±1.5°within 1 hours.

The stable time ≤4h.

The stable point error within ±0.75° × secφ;

The rolling error within ±1°× secφ.

When speed is 20KN,the error caused by course fast transformation 180°: ±3°

Applicable ship power: AC220V 50Hz self-consuming 200W

Applicable ship power: AC220V 50Hz self-consuming 200W..

8 repeater compass interfaces, including 24V power supply interfces and IEC61162-1 communication interfaces

4 IEC 61162-1 standard interfaces for output

Heading send frequency: can be set to 1 time/s, 10 times/s or 50 times/s to support high-speed ship.
