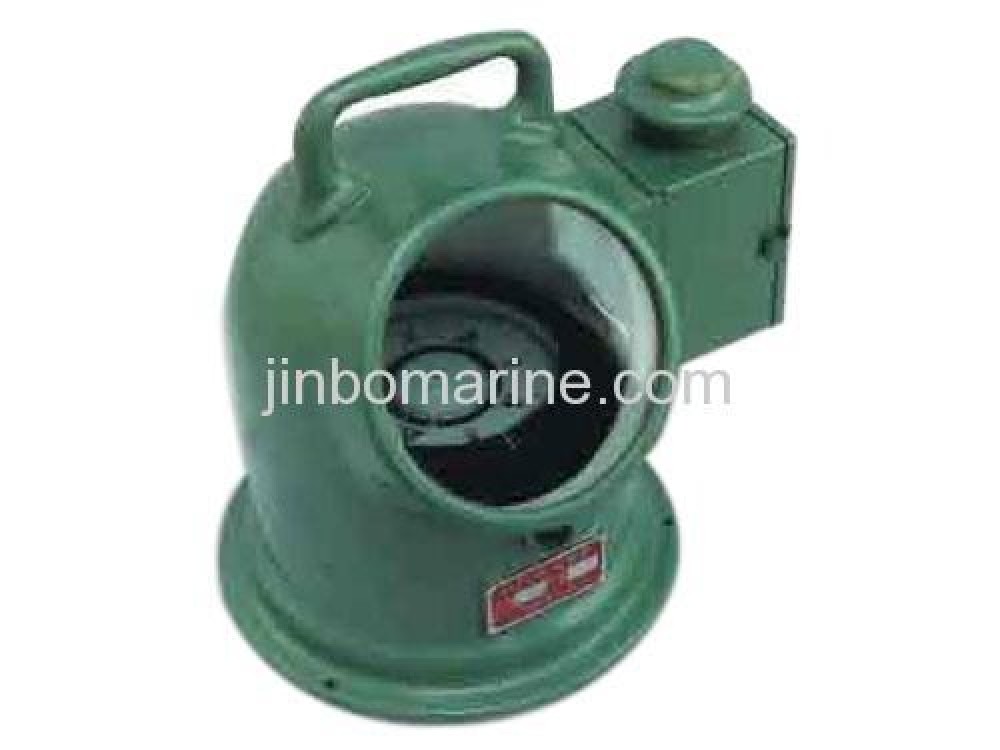

CPS-100 Magnetic Compass

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CPS-100 Magnetic Compass:

The magnetic compass is a small size and portable liquid compass. It is specially designed for use on craft to indicate the heading and determine the azimuth.

Main Characteristics:

Stable in magnetism,reliable in operation,high in sensitivity.
Simple and compact in construction,easy in maintenance.
Light in weight,with store-box,easy to carry.
The illuminator is the type of wind-proof oil lamp,and can be used in night and in the open air.

Technial Data:

Card diameter Φ100mm
Card graduations 0°~360°(2 per graduation)
Swinging semi-period(H=34uT at 20±3°C) not less than 4.37sec
Operating temperature -20°~60°C
Direction error not more than 1.5°
Friction error(H=34uT at 20±3°C) 0.26°
Overall dimensions 272×216×271mm
Total weight of the compass(excluding the store box) 4.5kg
