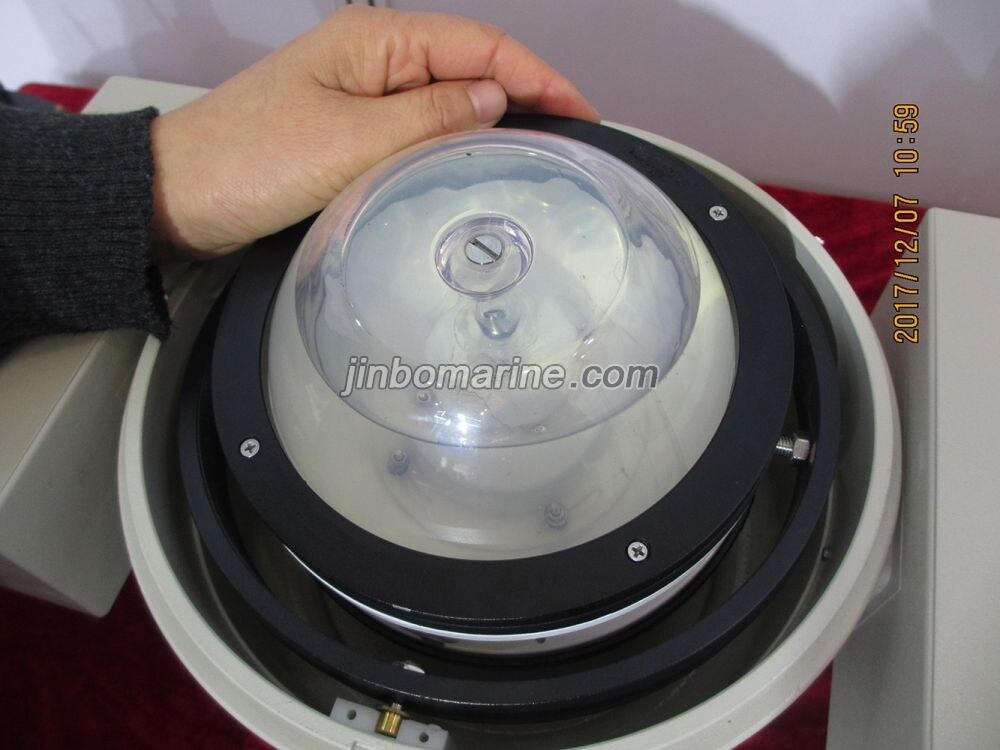

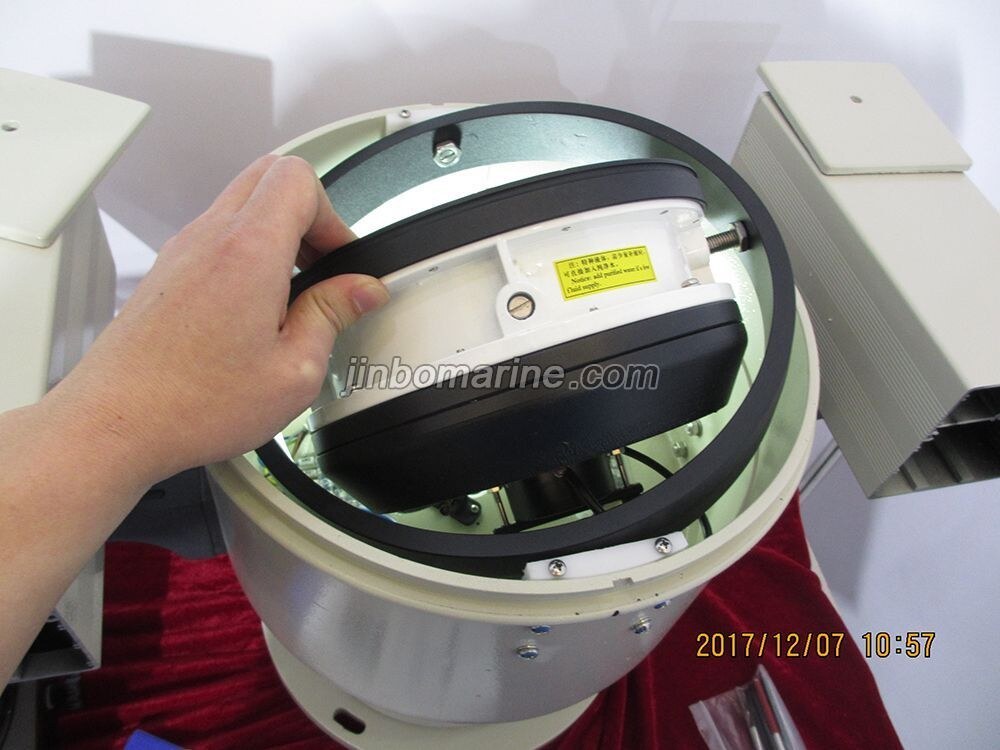

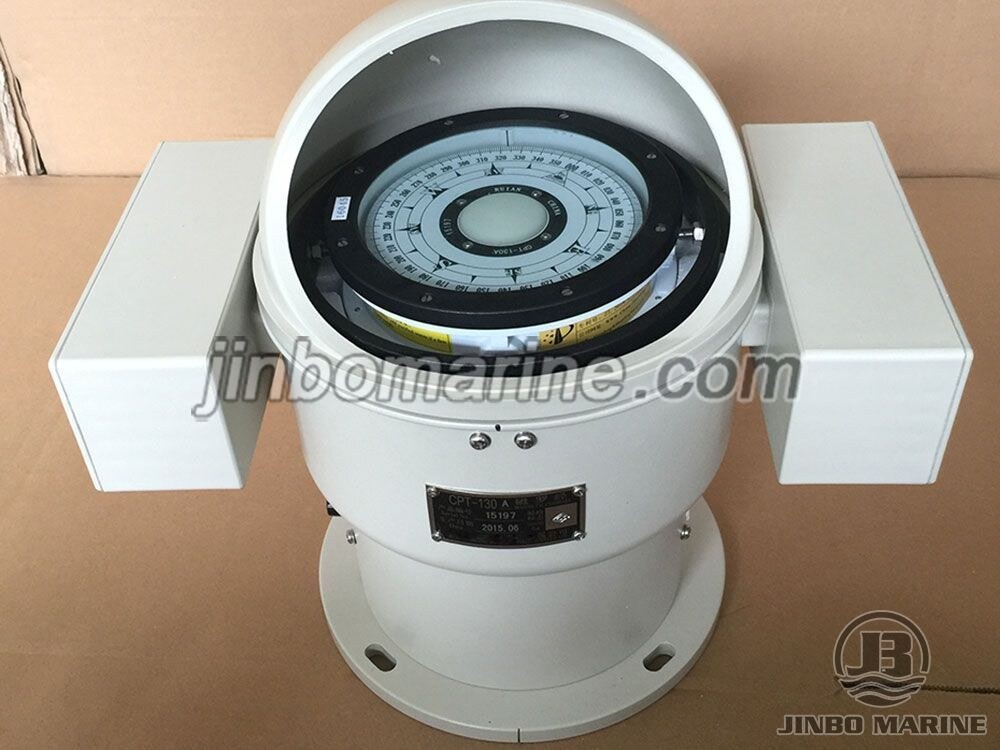

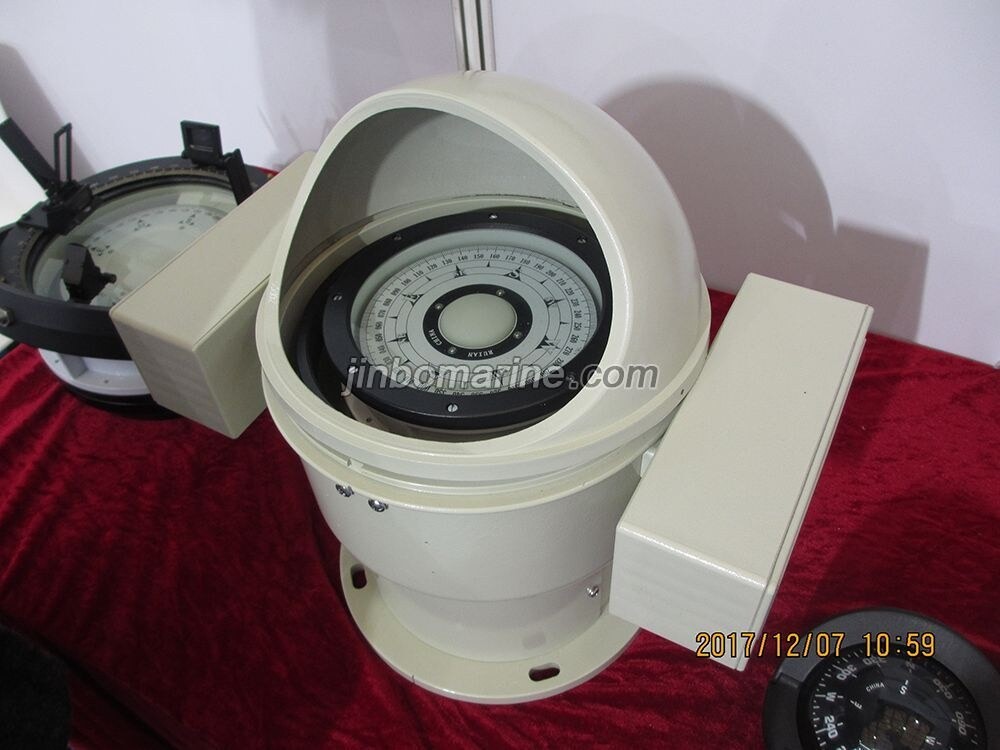

CPT-130A Magnetic Compass

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CPT-130A Magnetic Compass:

CPT-130A Magnetic Compass is a sort of table model liquid magnetic compass . The compass is a magnetic compass class B and it is designed and manufactured in accordance with the national standard GB/T 10104-1995 ( General Technical Terms of Marine Magnetic Compass Class B ) . The product has the advantages of simple structure,complete function,convenient correcting difference,accurate direction,stabilization and reliable .The magnetic compass is suitable for the large and middle motorized fishing boats and small steel vessels acting as steering compass.

Components:

Magnetic compass:1pc

Calibrating equipment(fitting case):1 set

Main semicircle self heterodyne adjusting magnetic bar 6pcs

Quadrant self heterodyne adjusting pure iron sheet 10pcs

Inclining self heterodyne adjusting magnetic bar 2pcs

Main technical parameters:

Dial diameter 130mm
Dial graduation 0°~360°1°for each grid
Using temperature -25℃~70℃
Indicating deviation(H=35μT,T=20±3℃) ≤1.5°
Half period(H=35μT,T=20±3℃) ≥5.59S
Friction deviation(H=35μT,T=20±3℃) 0.26°
Quadrant self heterodyne correcting energy 0.5°~7°
Inclining self heterodyne correcting energy -75~+75μT
Lighting power supply AC220V,DC24V
Outline Dimension 390x240x370mm
Diameter of mounting holes Pitchrow 214 ApertureΦ10
Weight 7.5kg.
