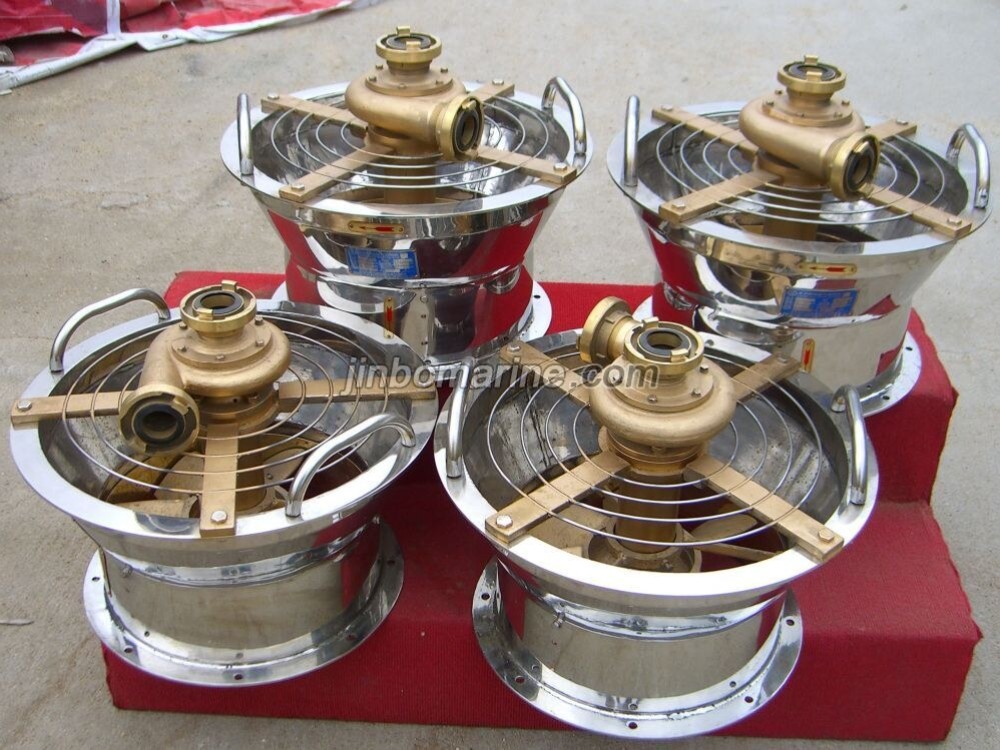

CSZ Marine Hydro Driven Axial Fan

  • Category:Marine Fan/Blower
  • Material:Stainless Steel, Copper
  • Standards:GB11799, GB3836-83
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.



CSZ series marine hydro-driven axial fan has the high explosion proof class, anti-corrosion, swing resistance, shock resistance. The structure is simple, compact. The weight is light, the operation is easy.Normally only one operator is required. It is directly driven by the fire fighting water, no need for other power equipment.It can deliver the flammable and explosive gas, steam and other dangerous & poisonous gas.


The fan is composed of water turbine, casing, frame,rotor and impellers. The water turbine is casted by anti-corrosive copper alloy, the casing is welded by the stainless steel. The water turbine and the rotor adopt two grades of sealing, mechanical seal and packing seal. A safe brass ring fitted between the casing and the impellers,so that it is without spark structure..

CSZ fan serve as supply fan or exhaust fan, but they can not displace the function.

Applicable Conditions:

The places where there are explosive grad IIB & IIC and group from T4 to T6.

Ambient temperature: -25 centigrade degree to 55 centigrade degree

Relative humidity of the air: not over 95%

Cyclical vacillation:+-22.5 degree

Sustained horizontal tilting: +-15 degree

Sustained vertical tilting:+-10 degree

Main Parameter:

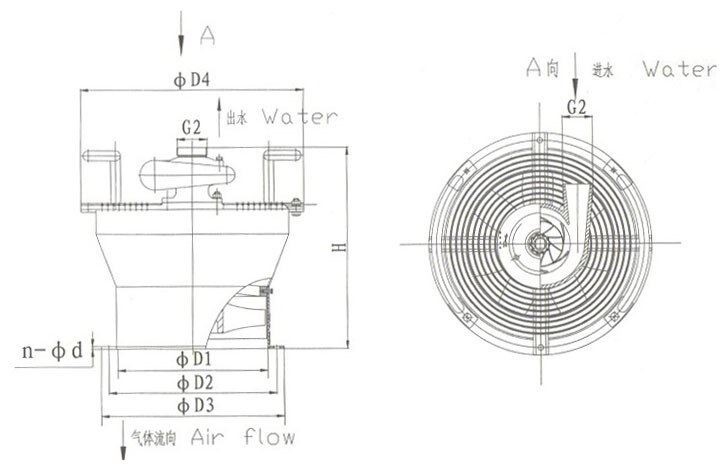

Model Flow rate Static pressure Water pressure Water consumption D1 D2 D3 D4 H n-d Weight
m3/h Pa Mpa m3/h kgs
CSZ-300 3000-6000 260-820 0.2-0.5 25-43 300 336 366 446 404 8-D11 30.5
CSZ-380 4000-10000 380-1020 0.2-0.5 28-53 380 416 446 546 546 8-D11 35
