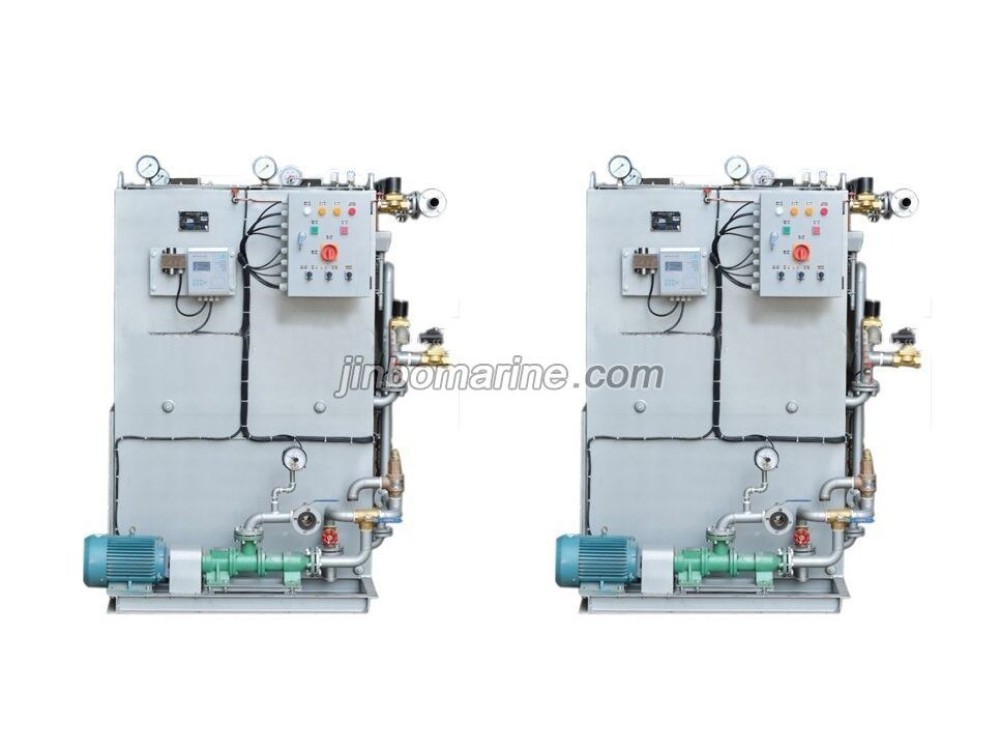

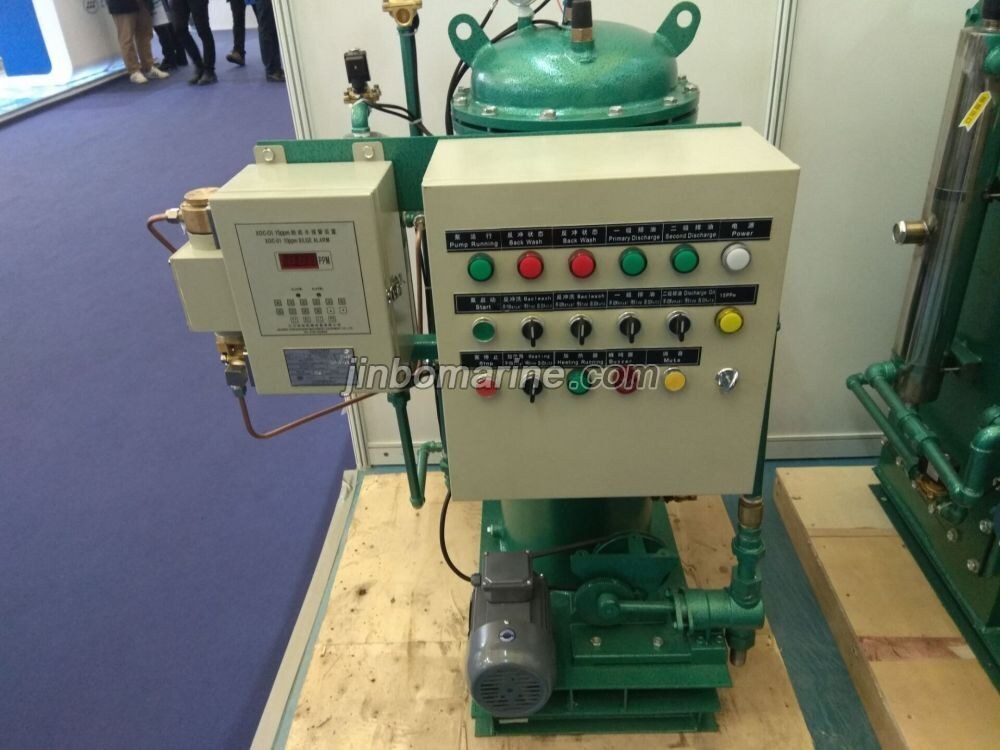

CYFE Series Oily Water Separator
CYFE series 15ppm bilge separator is a kind of environment protection product designed om international marinetime orianization IMO MEPC.107(49) standard
Loading product images...
CYFE Series Oily Water Separator
PDF Datasheet
We can supply according to your requirement.
Main Features:
It is a compact one and also is one of the smallest oily water separator equipment in word, only2/3 volume compare with our previous generation product.
It pump set can be individually positioned, and equipment from such a small cabin is also easy in stall.
Non-absorbent material inside the device, thus ensuring the durability of all material inside.
Technical data:
| Type | Standard | Capacity (m3/hour) | L (mm) | W (mm) | H (mm) |
| CYFE-0.1 | IMO 107(49) | 0.1 | 746 | 540 | 977 |
| CYFE-0.25 | 0.25 | 955 | 540 | 1050 | |
| CYFE-0.5 | 0.5 | 1060 | 710 | 1350 | |
| CYFE-1 | 1 | 1160 | 730 | 1550 | |
| CYFE-2 | 2 | 1260 | 780 | 1610 | |
| CYFE-3 | 3 | 1320 | 830 | 1670 | |
| CYFE-5 | 5 | 1570 | 1044 | 1820 |
