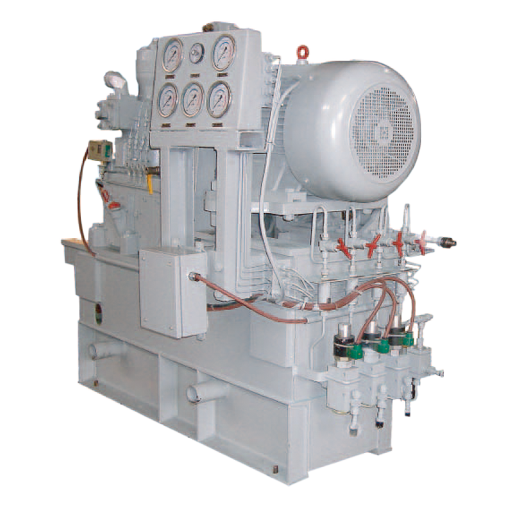

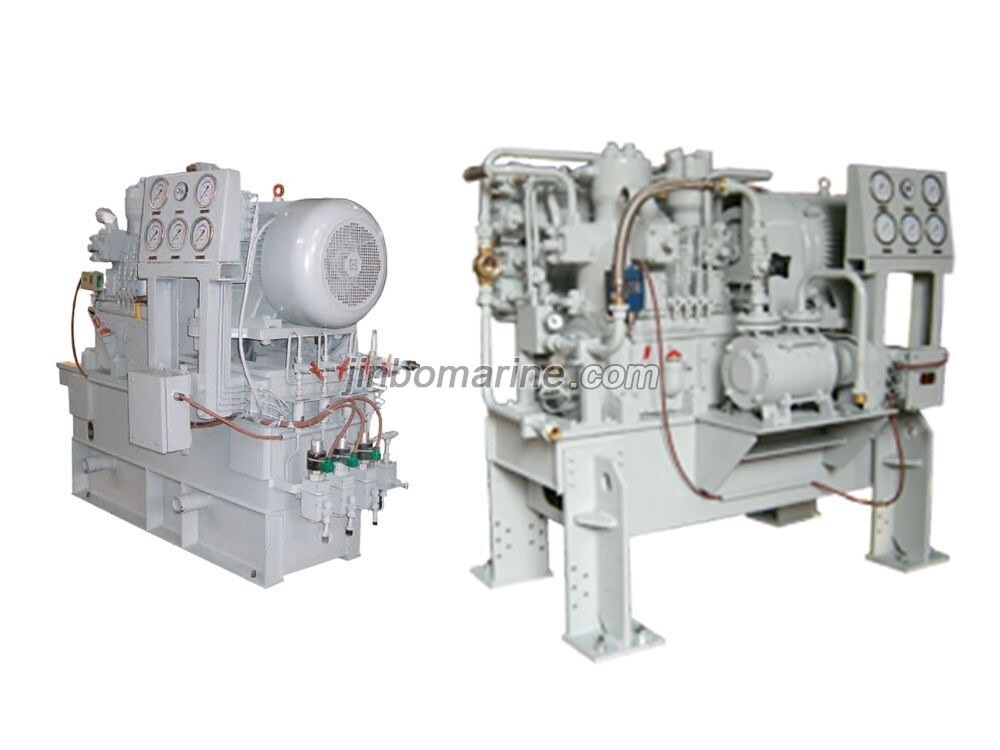

CZS-0.5/150 Navy Marine High Pressure Water Cooled Air Compressor
Design Particulars: The emergency marien high pressure air compressor has the advantages of fast start-up, safety and stability, small volume and compact structure. Techa...
Loading product images...
CZS-0.5/150 Navy Marine High Pressure Water Cooled Air Compressor
PDF Datasheet
We can supply according to your requirement.
Design Particulars:
The emergency marien high pressure air compressor has the advantages of fast start-up, safety and stability, small volume and compact structure.
Techanical Data:
| Model | Pressure (MPa) | Stages | Speed r/min | Capacity (m3/h) | Power required (KW) | Power of Motor (KW) | Type pf Cooling | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|---|
| 1-0.433/60 | 6 | 2 | 500 | 26 | 9.5 | 11 | Water Cooled | 1170*700*1220 |
| CZS-0.5/150 | 15 | 3 | 730 | 30 | 10 | 11 | 1170*700*1220 | |
| CZS-1.6/150 | 15 | 4 | 900 | 100 | 37 | 45 | 1800*850*1540 | |
| CZS-1.4/200 | 20 | 4 | 1000 | 84 | 35 | 45 | 1800*850*1540 | |
| CZS-1.4/250 | 25.0 | 4 | 970 | 84 | 42 | 45 | 1800*850*1540 | |
| CZS-1.6/250 | 25.0 | 4 | 1170 | 100 | 43 | 45 | 1800*850*1540 |
