Diving Breathing High Pressure Air Compressor LYV100

Request a Quote Not what you need, please send your RFQs via Email.

Details

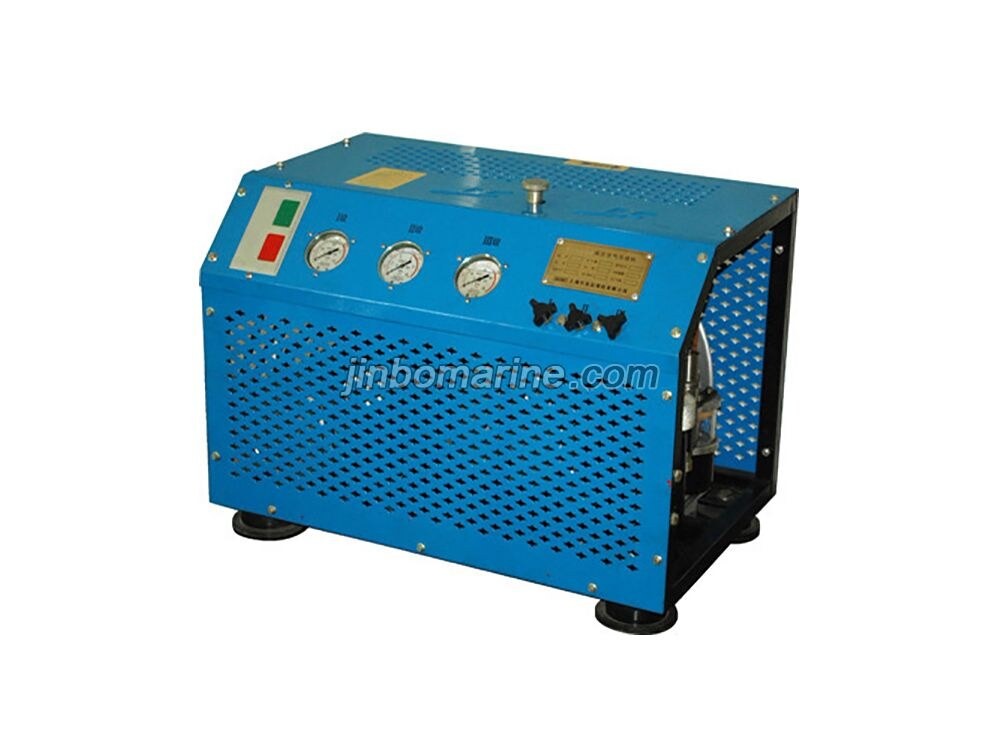

China Diving Breathing High Pressure Air Compressor LYV100:

LYV100 high pressure air compressor is designed for breathing in diving, firefighting and for testing as well. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. It is safe and reliable source of pure air.

Features

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Diving Breathing High Pressure Air Compressor LYV100 Main Specifications

Model Drive Operating pressure Delivery rate Power Dimension Net weight Noise level
LYV100A Three-phase motor Max 300BAR 100L/min 3kw 67*43*52Cm 80kg <75dB(A)
LYV100B Single-phase motor Max 200BAR 100L/min 2.2kw 67*43*52Cm 81kg <75dB(A)
