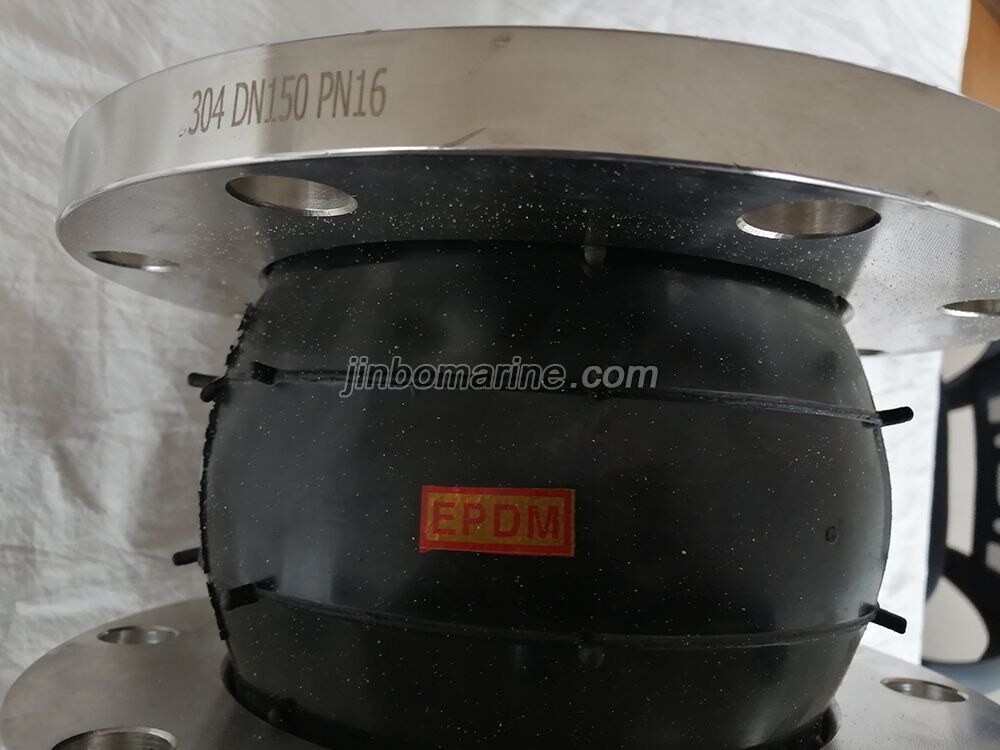

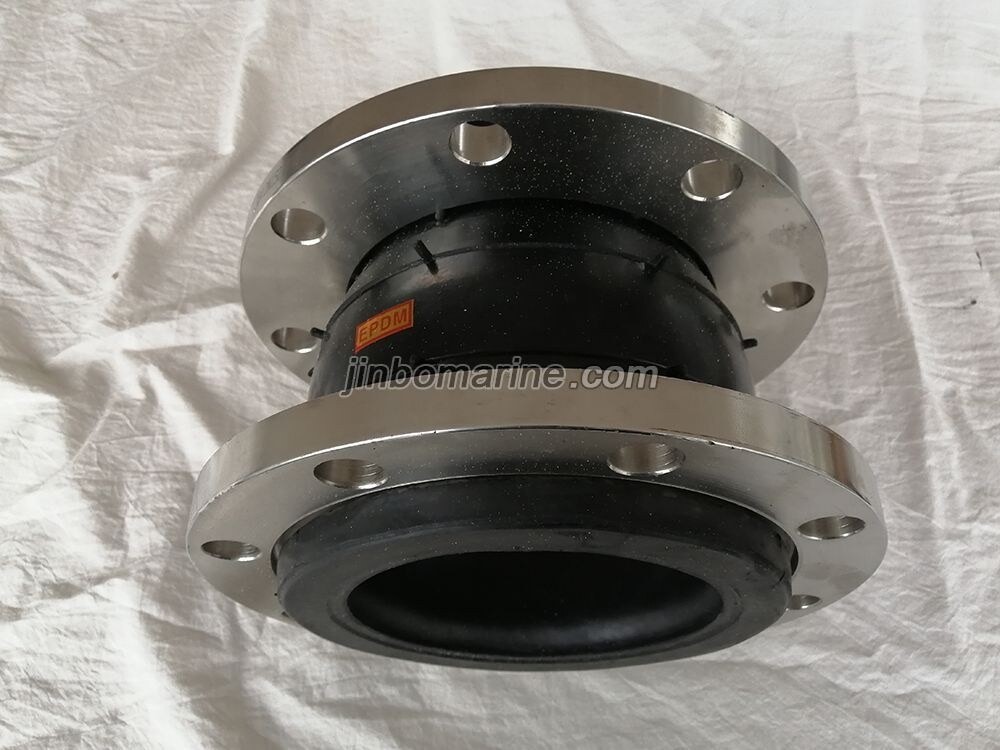

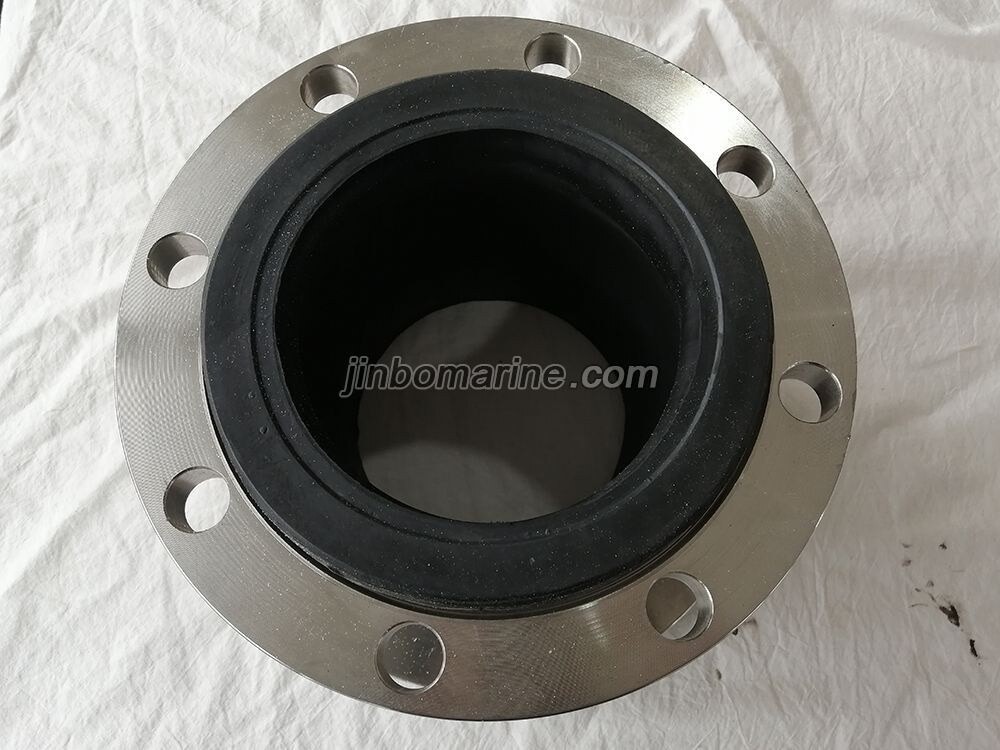

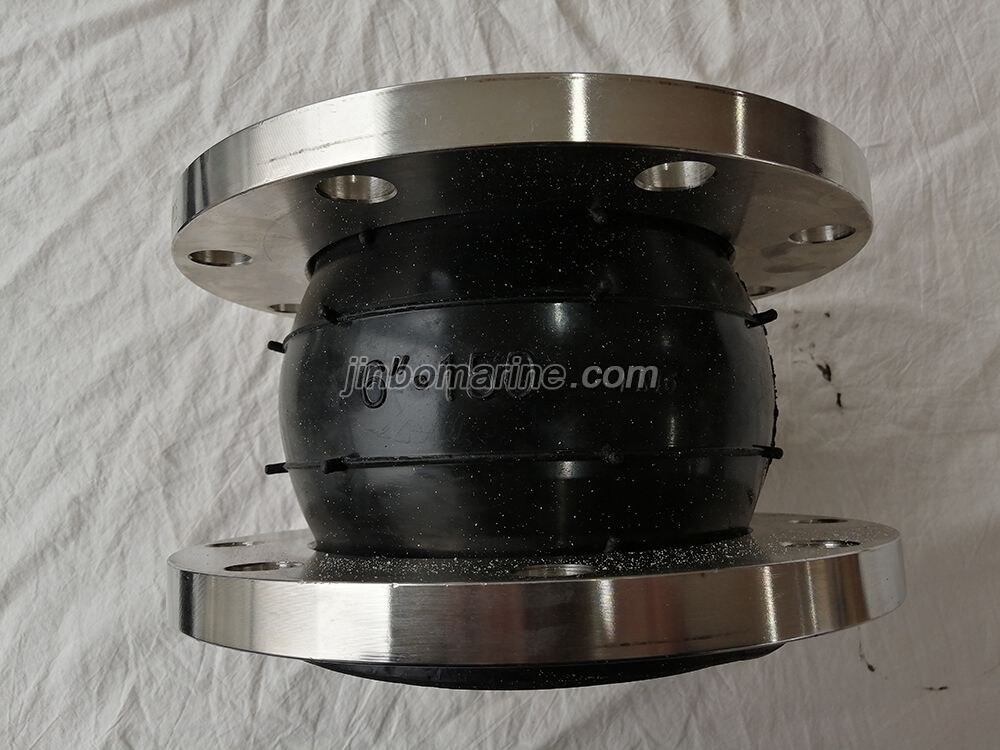

DN 150 PN16 stainless steel rubber flexible joint GB/9115.1-2000
- Category:Forging Flange
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
Product name: stainless steel rubber flexible joint
Product brand: JINBO MARINE
Material: carbon steel, SUS304, 316L
Nominal diameter: DN25 - DN4000 (can be customized as required)
Product features: convenient installation, durability and low cost.
Scope of application:
The flange standard is GB/9115.1-2000, which can be produced according to the flange standards of HG, DIN, BS, en, JIS, etc. The rubber can be natural rubber, EPDM, neoprene, butyl rubber, fluororubber, etc
The suspended water supply uses products with DN 200 and above, and the pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with a square pull-off device
|

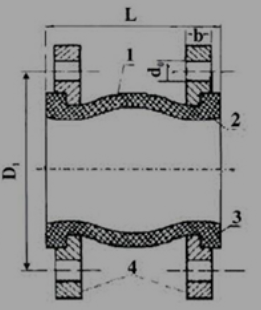

DN Nominaldiameter DN |
Length L (mm) |
Axial displacement | Lateral displacement(mm) |
Deflexion angle (al+a2) |
||
| DN | inch |
伸长 Extension |
压缩 Compression |
|||
| 32 | 1.25 | 95/130/152 | 6 | 9 | 9 | 15 |
| 40 | 1.5 | 95/130/152 | 6 | 10 | 9 | 15 |
| 50 | 2 | 105/130/152 | 7 | 10 | 10 | 15 |
| 65 | 2.5 | 115/130/152 | 7 | 13 | 11 | 15 |
| 80 | 3 | 130/135/152 | 8 | 15 | 12 | 15 |
| 100 | 4 | 130/135/150 | 10 | 19 | 13 | 15 |
| 125 | 5 | 130/152/165 | 12 | 19 | 13 | 15 |
| 150 | 6 | 130/152/180 | 12 | 20 | 14 | 15 |
| 200 | 8 | 130/152/180/200/210 | 16 | 25 | 22 | 15 |
| 250 | 10 | 130/200/230/240 | 16 | 25 | 22 | 15 |
| 300 | 12 | 130/200/245/260 | 16 | 25 | 22 | 15 |
| 350 | 14 | 200/255/265 | 16 | 25 | 22 | 15 |
| 400 | 16 | 200/255/265 | 16 | 25 | 22 | 15 |
| 450 | 18 | 200/255/265 | 16 | 25 | 22 | 15 |
| 500 | 20 | 200/255 | 16 | 25 | 22 | 15 |
