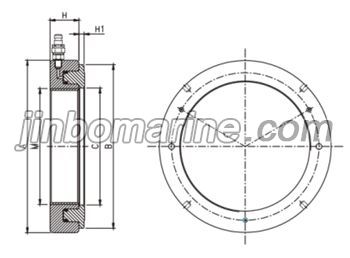

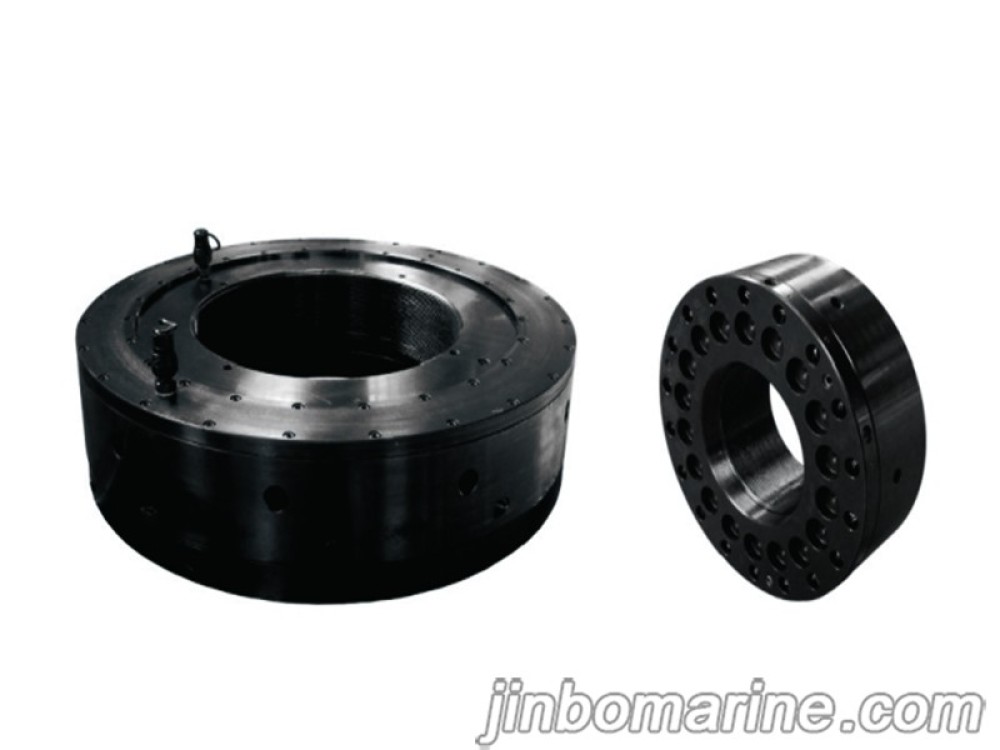

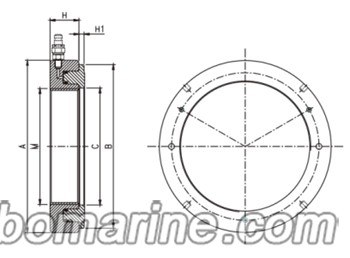

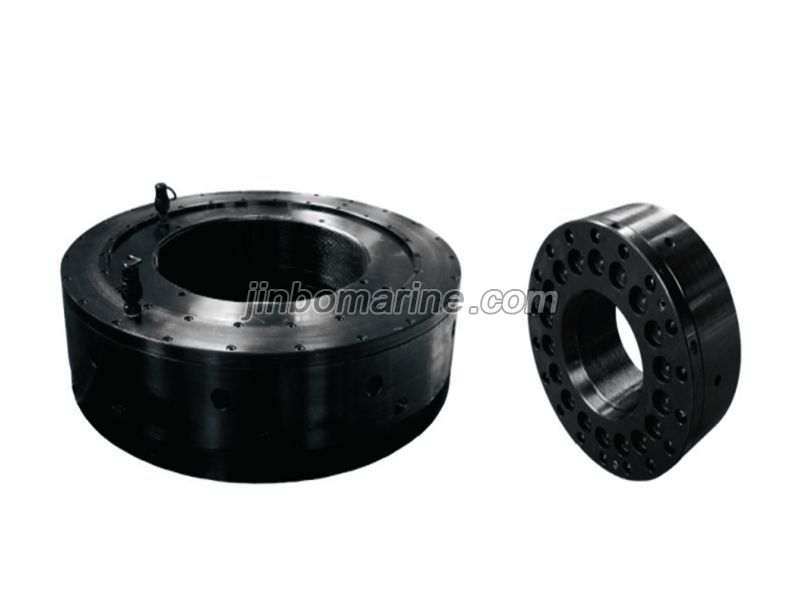

China DN/HN Series-Hydraulic Nut:

DN/HN Series-Hydraulic Nut

Model Thread
specification 		Outside
diameter 		Outer diameter
of pressure ring 		Inner diameter
of pressure ring 		Cylinder height Ring height Stroke Cylinder Effective
Area Advance 		Maximum Cyllinder
Capacity Advance 		Weight
M A B C H H1 mm cm2 KN kg
mm mm mm mm mm m
HMV50 M50X1.5 114 104 50.5 38 4 5 29 290 2.7
HMV55 M55X2 120 109 55.5 38 4 5 31.5 315 2.75
HMV60 M60X2 125 115 60.5 38 5 5 33 330 2.8
HMV65 M65X2 130 121 65.5 38 5 5 36 360 3
HMV70 M70X2 135 127 70.5 38 5 5 38 380 3.2
HMV75 M75X2 140 132 75.5 38 5 5 40 400 3.4
HMV80 M80X2 146 137 80.5 38 5 5 42 420 3.7
HMV85 M85X2 150 142 85.5 38 5 5 44 440 3.75
HMV90 M90X2 156 147 90.5 38 5 5 47 470 4
HMV95 M95X2 162 153 95.5 38 5 5 49 490 4.3
HMV100 M100X2 166 158 100.5 38 6 5 51 510 4.4
HMV105 M105X2 172 163 105.5 38 6 5 53 530 4.65
HMV110 M110X2 178 169 110.5 38 6 5 56 560 4.95
HMV115 M115X2 182 174 115.5 38 6 5 58 580 5
HMV120 M120x2 188 179 120.5 38 6 5 60 600 5.25
HMV125 M125X2 192 184 125.5 38 6 5 62 620 5.35
HMV130 M130x2 198 190 130.5 38 6 5 64 640 5.65
HMV135 M135X2 204 195 135.5 38 6 5 66 660 5.9
HMV140 M140X2 208 200 140.5 38 7 5 68 680 6
HMV145 M145X2 214 206 145.5 39 7 5 73 730 6.5
HMV150 M150X2 220 211 150.5 39 7 5 75 750 6.6
HMV155 M155X3 226 218 155.5 39 7 5 81 810 6.95
HMV160 M160X3 232 224 160.5 40 7 6 86 860 7.6
HMV165 M165X3 238 229 165.5 40 7 6 89 890 7.9
HMV170 M170X3 244 235 170.5 41 7 6 94 940 8.4
HMV180 M180X3 256 247 180.5 41 7 6 103 1030 9.15
HMV190 M190X3 270 259 191 42 8 7 115 1150 10.5
HMV200 M200X3 282 271 201 43 8 8 125 1250 11.5
HMV205 Tr205X4 288 276 207 43 8 8 128 1280 12
HMV210 Tr210x4 294 282 212 44 8 9 134 1340 12.5
HMV215 Tr215X4 300 287 217 44 8 9 137 1370 13
HMV220 Tr220X4 306 293 222 44 8 9 144 1440 13.5
HMV225 Tr225X4 312 300 227 45 8 9 152 1520 14.5
HMV230 Tr230X4 318 305 232 45 8 9 155 1550 15
HMV235 Tr235X4 326 311 235 46 8 10 162 1620 16
HMV240 Tr240X4 330 316 242 46 9 10 165 1650 16.5
HMV250 Tr250X4 342 329 252 46 9 10 176 1760 17.5
HMV260 Tr260X4 356 341 262 47 9 11 188 1880 19.5
HMV270 Tr270X4 368 352 272 48 9 12 198 1980 20.5
HMV280 Tr280X4 380 363 282 49 9 12 211 2110 22

Model Thread
specification 		Outside
diameter 		Outer diameter
of pressure ring 		Inner diameter
of pressure ring 		Cylinder height Ring height Stroke Cylinder Effective
Area Advance 		Maximum Cyllinder
Capacity Advance 		Weight
M A B C H H1 mm cm2 KN kg
mm mm mm mm mm m
HMV290 Tr290X4 390 375 292 49 9 13 224 2240 22.5
HMV300 Tr300×4 404 386 302 51 10 14 236 2360 25.5
HMV310 Tr310X5 416 397 312 52 10 14 249 2490 27
HMV320 Tr320X5 428 409 322 53 10 14 263 2630 29.5
HMV330 Tr330X5 438 419 332 53 10 14 270 2700 30
HMV340 Tr340X5 450 430 342 54 10 14 284 2840 31.5
HMV345 Tr345X5 456 436 347 54 10 14 294 2940 32.5
HMV350 Tr350X5 464 442 352 56 10 14 299 2990 35
HMV360 Tr360X5 472 455 362 56 10 15 313 3130 35.5
HMV365 Tr365X5 482 460 367 57 11 15 317 3170 38.5
HMV370 Tr370X5 486 466 372 57 11 16 328 3280 39
HMV380 Tr380X5 498 476 382 58 11 16 335 3350 40.5
HMV385 Tr385X5 504 483 387 58 11 16 347 3470 41
HMV400 Tr400X5 522 499 402 60 11 17 367 3670 45.5
HMV410 Tr410X5 534 510 412 61 11 17 383 3830 48
HMV420 Tr420X5 546 522 422 61 11 17 400 4000 50
HMV430 Tr430X5 556 532 432 62 11 17 408 4080 52.5
HMV440 Tr440X5 566 543 442 62 12 17 425 4250 54
HMV450 Tr450X5 580 554 457 64 12 17 441 4410 57.5
HMV460 Tr460X5 590 565 462 64 12 17 451 4510 60
HMV470 Tr470X5 602 576 472 65 12 18 469 4690 62
HMV480 Tr480X5 612 587 482 65 12 19 486 4860 63
HMV490 Tr490X5 624 597 492 66 12 19 495 4950 66
HMV500 Tr500X5 636 609 502 67 12 19 515 5150 70
HMV510 Tr510X6 648 624 512 68 12 20 533 5330 74
HMV520 Tr520X6 658 634 522 68 13 20 543 5430 75
HMV530 Tr530X6 670 645 532 69 13 21 562 5620 79
HMV540 Tr540X6 682 657 542 69 13 21 582 5820 81
HMV550 Tr550X6 693 667 552 70 13 21 592 5920 84
HMV560 Tr560X6 704 678 562 71 13 22 612 6120 88
HMV570 Tr570X6 716 689 572 72 13 23 632 6320 91
HMV580 Tr580X6 726 699 582 72 13 23 642 6420 94
HMV600 Tr600X6 748 721 602 73 13 23 673 6730 100
HMV630 Tr630X6 782 754 632 74 14 23 729 7290 110
HMV650 Tr650X6 804 775 652 75 14 23 762 7620 115
HMV670 Tr670X6 826 796 672 76 14 24 795 7950 120
HMV690 Tr690X6 848 819 692 77 14 25 842 8420 127
HMV710 Tr710X7 870 840 712 78 15 25 877 8770 135
HMV750 Tr750X7 912 883 752 79 15 25 952 9520 146
HMV800 Tr800X7 965 936 802 80 16 25 1039 10390 161
HMV850 Tr850X7 1020 990 857 83 16 26 1146 11460 181
HMV900 Tr900x7 1075 1043 902 86 17 30 1241 12410 205
HMV950 Tr950X8 1126 1097 952 86 17 30 1357 13570 218
HMV1000 Tr1000X8 1180 1150 1002 88 17 34 1458 14580 239
