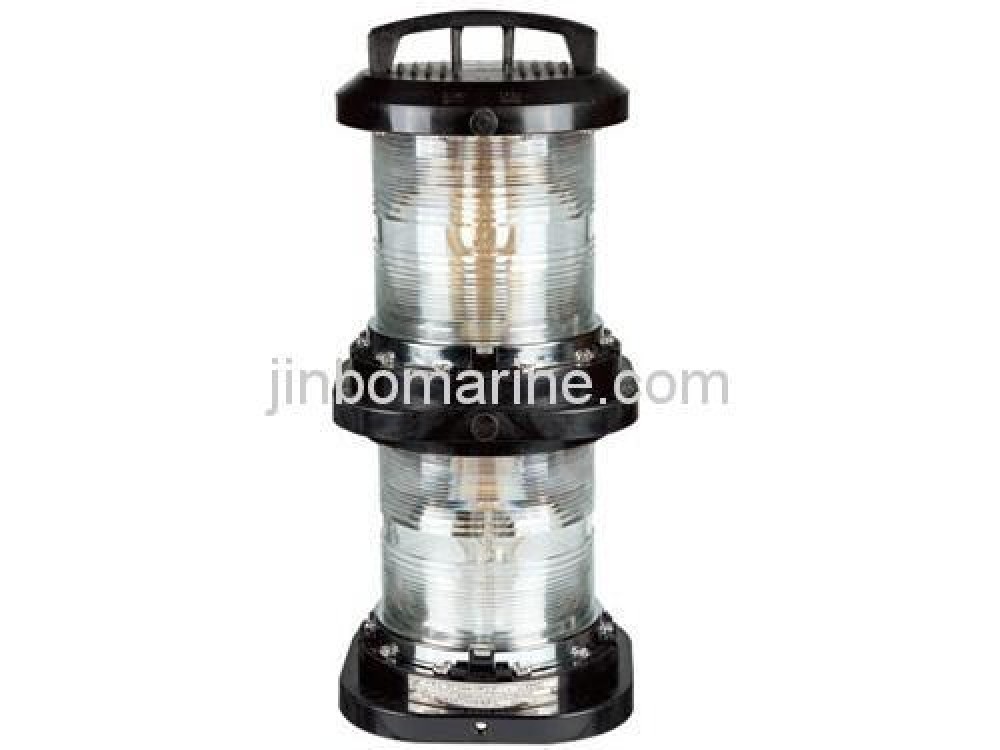

Double Deck Navigation Signal Light CXH-10P

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Double Deck Navigation Signal Light CXH-10P:

The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.

Product Advantages:

1. The signal lights have the seal structure, waterproof under the extreme enviroment.

2. The sheel is made of high-strength engineering plastic PA+GF, the lamp shade use injection of PC, lens hood of good quality stainless steel

3. Special light bulb with average life up to 700hrs.

4. Working Temperature:-30℃-55℃

Standards:

1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.

2. Confirm to the International Standard IEC60598-1-2008.

3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.

Main Specification:

Voltage 24V 110V 220V
Power 60W 60W 60W
Luminous Intensity 60cd
Lamp Holder P28S
Protection Class IP56
Cable Outside Diameter Dia.9

Name Type Visibility Level Arc Color Weight
Starboard Light CXH1-10P 3n.m 112.5o Green 3.8KGS
Port Light CXH2-10P 3n.m 112.5o Red 3.8KGS
Masthead Light CXH3-10P 3n.m 225o White 3.7KGS
Stern Light CXH4-10P 3n.m 135o White/Yellow 3.7KGS
All-round- Light CXH6-10P 3n.m 360o Red/green/white 3.6KGS

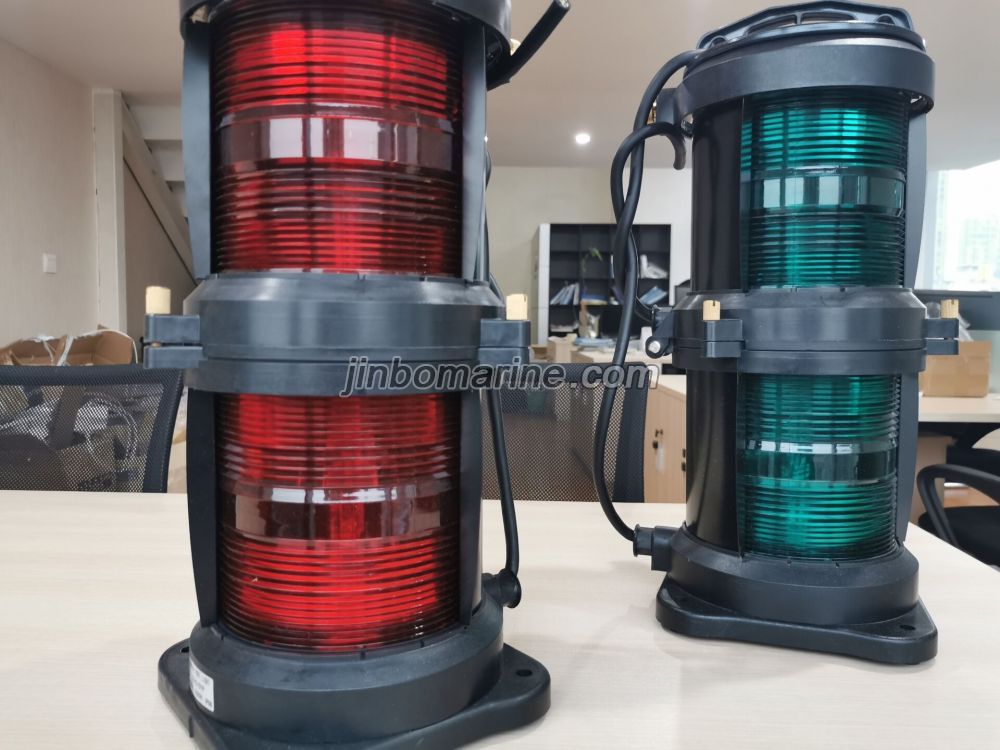

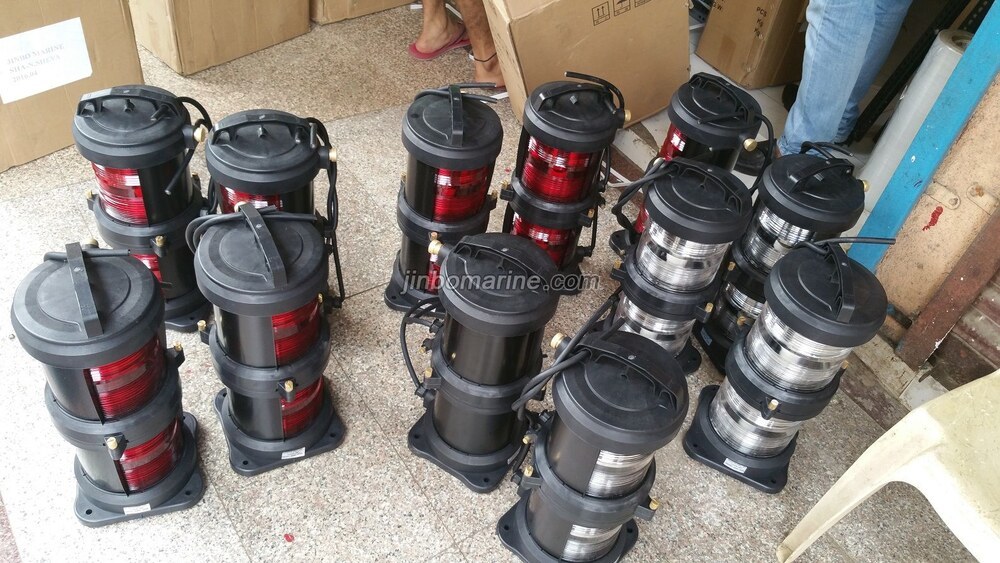

Navigation Signal Light CXH2-10P Supplied to India in 2016
