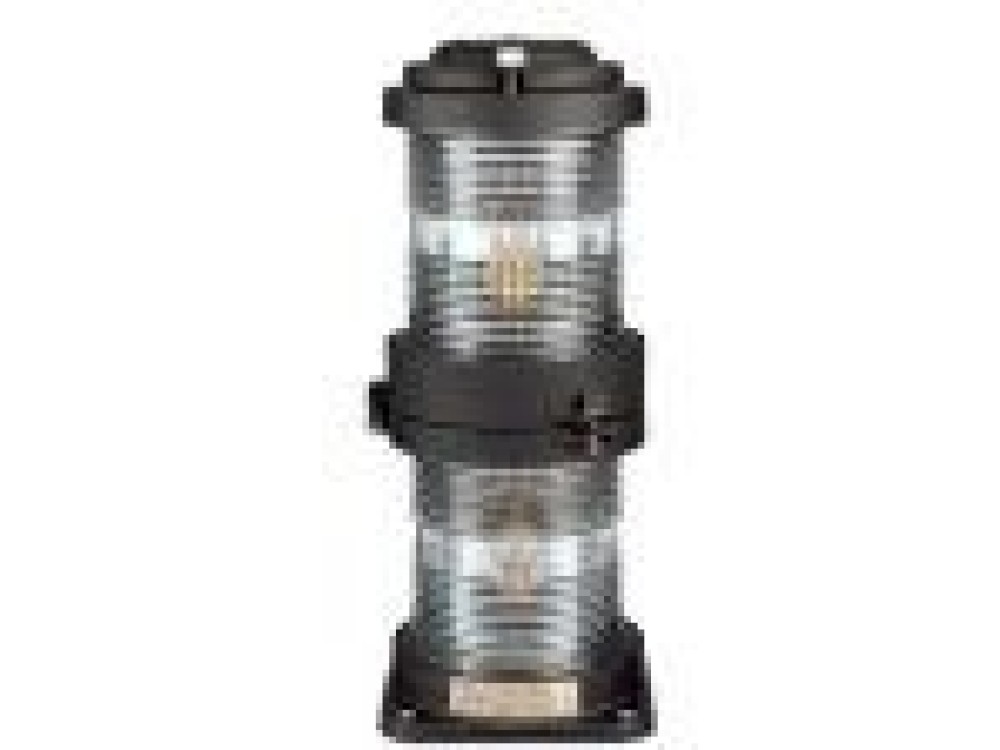

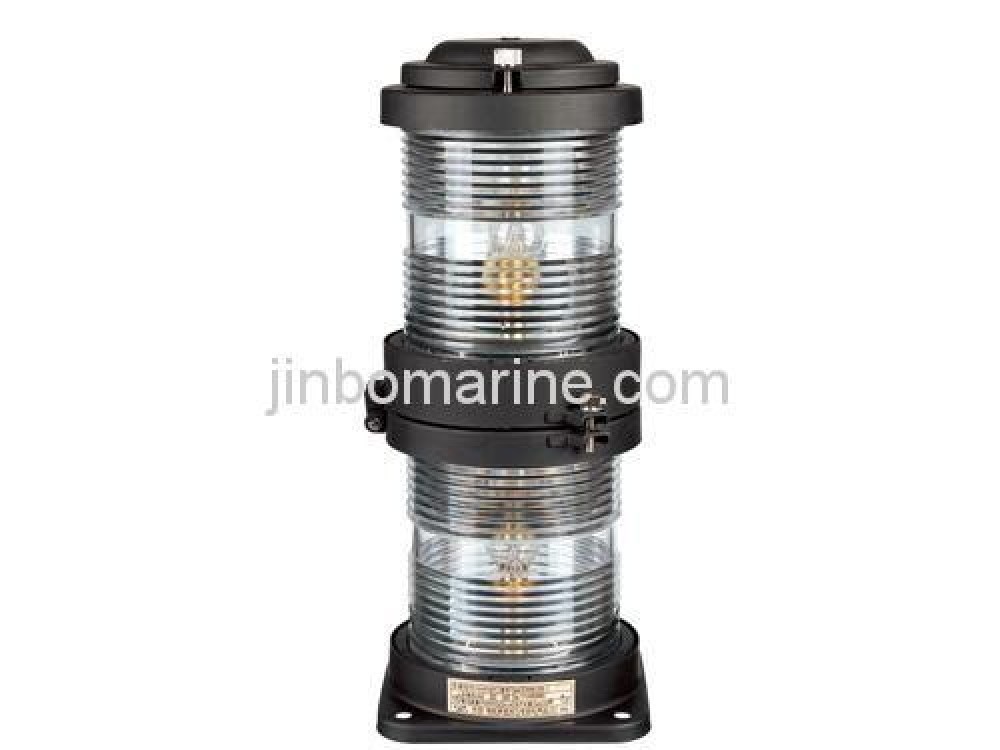

Double-Deck Stainless Steel Navigation Signal Light CXH-20S

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Double-Deck Stainless Steel Navigation Signal Light CXH-20S:

The Navigation Signal Light used to the ship with length12M or above as lamp signal liaison when night navigation.

Product Advantage:

1. Easy to Install and replace the bulb with a leakage hole at the bottom.

2. The sheel is made of stainless steel, corrosion resistance and impact resistance.

3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.

Standards:

1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.

2. Confirm to the International Standard IEC60598-1-2008.

3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.

Main Specification:

Voltage 24V
Power 2X30W
Lamp Holder P28S
Protection Class IP56
Cable Diameter Dia.8

Name Type Visibility Level Arc Color Weight
Starboard Light CXH1-20S 2n.m 112.5o Green 1.5KGS
Port Light CXH2-20S 2n.m 112.5o Red 1.5KGS
Masthead Light CXH3-20S 5n.m 225o White 1.4KGS
Stern Light CXH4-20S 2n.m 135o White/Yellow 1.4KGS
All-round- Light CXH6-20S 2n.m 360o Red/green/white 1.3KGS
