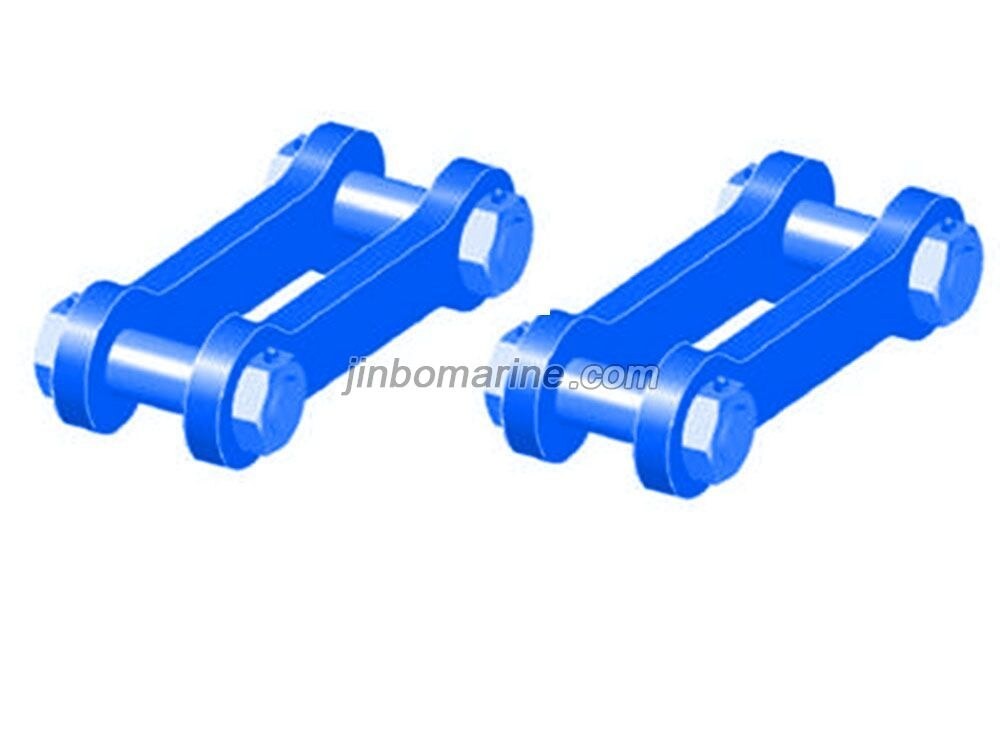

Double Pin Connector Shackle

  • Category:Shackle
  • Material:High Strength Alloy Steel
  • Standards:Customized
  • Delivery Time:30 days
  • Packing Details:Steel Plate/Wooden Box
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Double Pin Connector Shackle:

The body material is made of high strength steel and pin is made of high strenth alloy steel, finish is yellow painting. Please make sure that the load is centered on the pin. When there is too much space in the Jaw (B dimension), use washers to center the load.

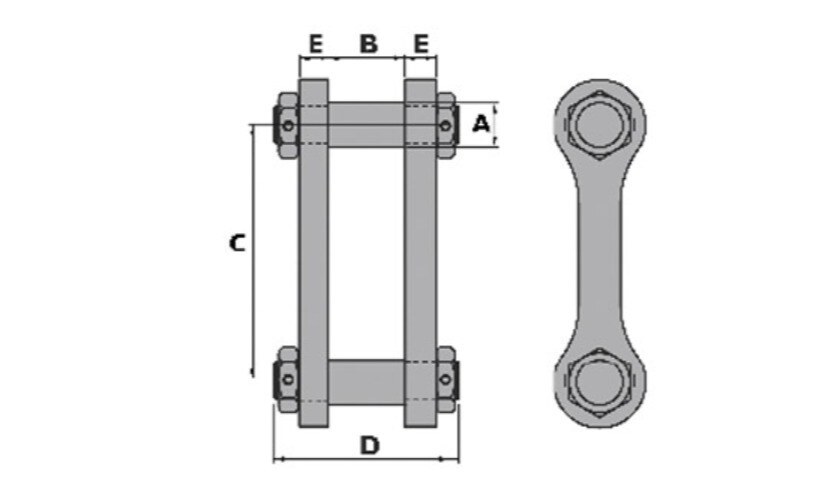

Size WLL (Tons) DIMENSIONS (Inches) Weight (Lbs.)
A B C D E
12" 110 4.33 6.69 21.26 20.08 3.54 465
15" 110 4.33 7.87 21.26 21.26 3.54 476
18" 110 4.33 8.86 27.95 22.24 3.54 538
21" 110 4.33 9.84 27.95 23.23 3.54 551
