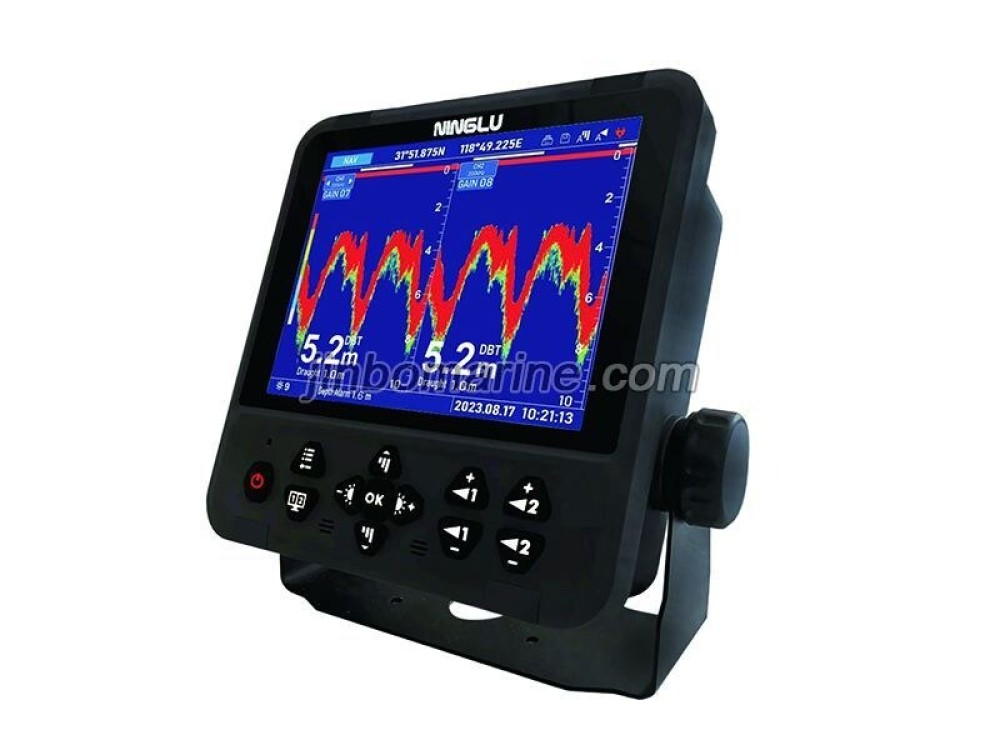

DS228 8 Inch TFT Dual-Channel Echo Sounder

DS228 8 Inch TFT Dual-Channel Echo Sounder

Display: 8 inch TFT 800x600 pixels

Power Supply:DC24V/AC100～ 240V

Power Output: 300～600W RMS

Frequency: CH1：200kHz

CH2：200kHz/50kHz

Pulse Width: 0.03～2ms

Depth Range：50kHz：2～200m

200kHz:0.3～200m

Resoiution：Depth ranger ≥ 0.5mm per meter; Shallow water ranger ≥ 5.0mm per meter

Channel: 1/2 channels display available

Depth Storage: 48h Depth storage

Data Input: GPS(GGA)

Data Output: NMEA0183(DPT/DBT)

Temperature: -15～+55°C

Display: IP23

Transducer: IP68
