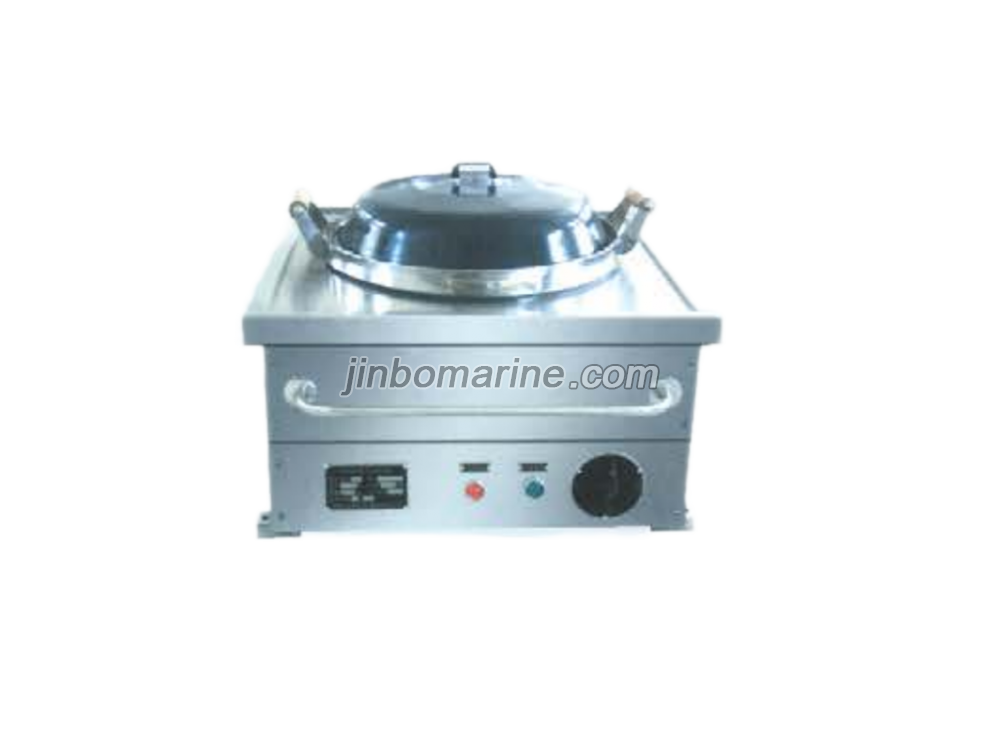

DZ-9 Marine Electric Stoves

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

R(DZ)-9 Model electric cooker is used for culinary works including steam, bake, fry and roast in such applications as vesseI, freshwater and ocean shipping passenger and cargo ship, dining room, restaurant, hotel,factory canteen and area and basement etc.

Techincal data:

Model Voltage Rated Power(kw) Structure Feature Size(LxWxH)mm Weight(kg)

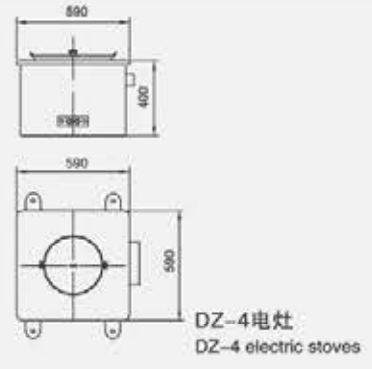

DZ-4 220V 3P
380V 3P
440V 3P 		4 One round headting plate for frying pan 590x590x400 40
DZ-9 9 One round headting plate for frying pan
One round headting plate for boiling pan 		1080x590x850 85
DZ-12 12 One round headting plate for frying pan
One round headting plate for boiling pan
One set oven 		1080x650x850 100
DZ-18 18 One round headting plate for frying pan
Three round headting plates for boiling pan
One set oven 		920x950x850 120
DZ-18 18 Two rectangle round headting plates for frying pan
Two round headting plates for boiling pan
One set oven 		1000x850x850 135
DZ-18 18 Four rectangle round headting plates
One set oven 		900x850x850 130
DZ-22 22 Six rectangle round headting plates
One set oven 		1200x800x850 150
DZ-32 32 Two rectangle round headting plates
Two round headting plate for boiling pan
Three sets oven 		2050x850x850 200
DZ-35 35 Two rectangle round headting plates
Four round headting plates for boiling pan
Two sets oven 		1600x1100x850 250
