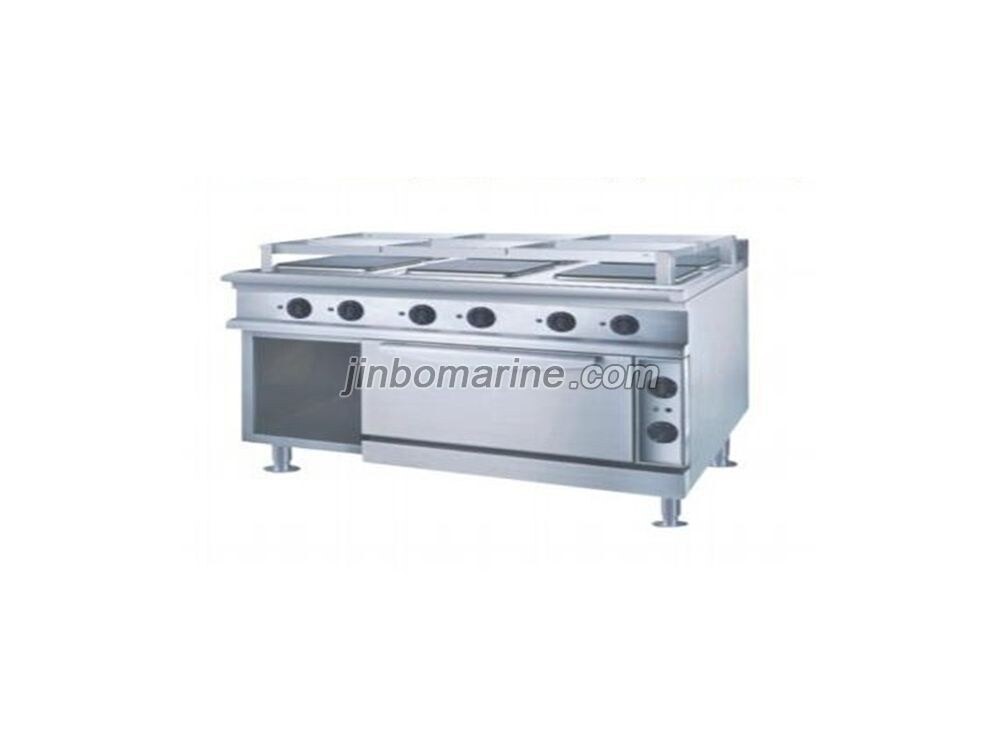

DZS4/R Square Hot Plate Marine Cooking Range W/Oven

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

DZS4/R Square Hot Plate Marine Cooking Range W/Oven

1.Complete stainless steel execution.
2.7-stop thermal control knob.
3.With handrail and storm racks.
4.The hot plates can stand abrasion,corrosion and high temperature.
5. Hot plates and control elements are imported from Germany.
6.Oven or locker can be set up under the range.

DZS4/R Square Hot Plate Marine Cooking Range W/Oven Specification



Model Voltage Rating Size(WxDxH)mm Weight
DZS4 380-415V/3P/50Hz
440-480V/3P/60Hz 		16Kw 800x900x850 100kg
DZS4/R 380-415V/3P/50Hz
440-480V/3P/60Hz 		29.8Kw 800x900x850 150kg
DZS6 380-415V/3P/50Hz
440-480V/3P/60Hz 		24Kw 1200x900x850 140kg
DZS6/R 380-415V/3P/50Hz
440-480V/3P/60Hz 		28.8Kw 1200x900x850 180kg
