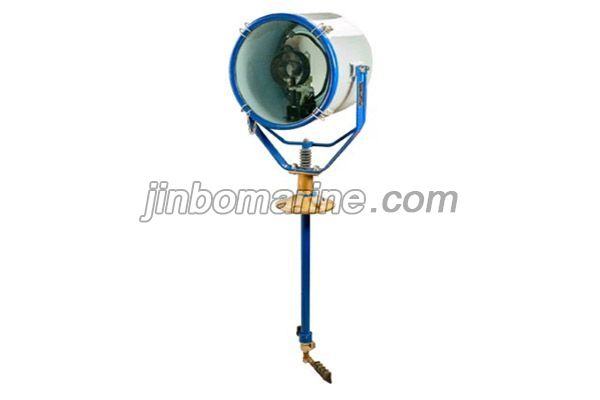

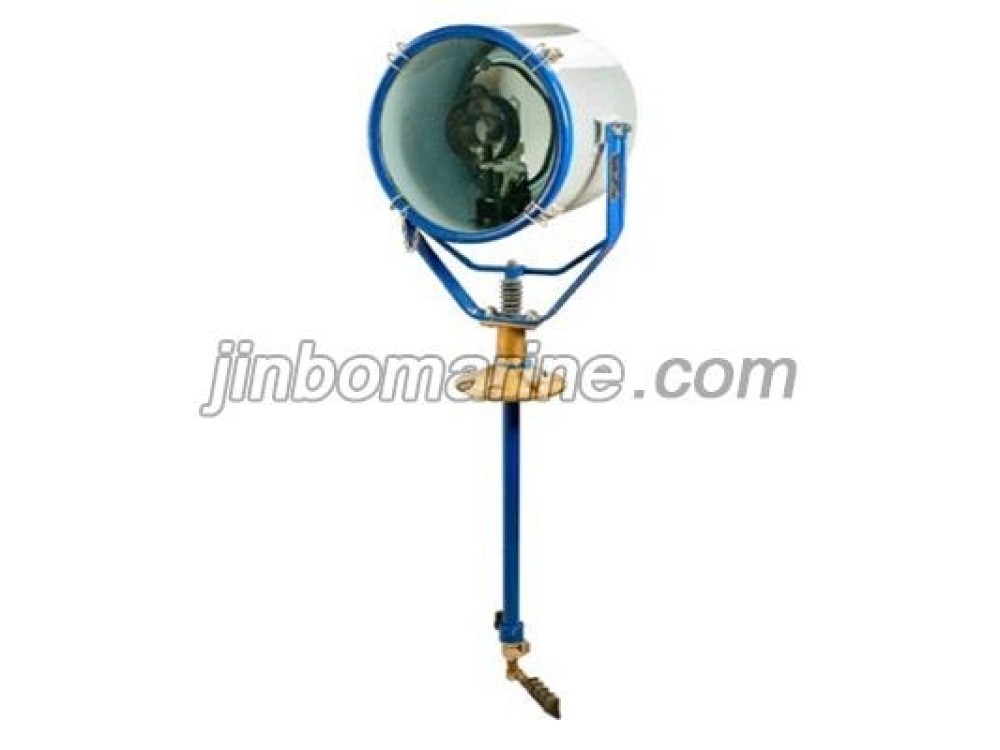

EF31B Marine Search Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

Application

Applied to illumination of military ship and ship, decks, dock, plaza and working areas.

Product Feature

1. The body is made of stainless steel, lampshade is transparent toughened glass.

2.It is operated on the deck, adjust up and down +/- 30 degree, 360 degree horizontally.

3. Protection Glass is IP56.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.

Specification

Type Voltage Power Shine Distance Lamp Holder Light Source Weight
EF31B 220V-240V 300W 300M GY9.5 Tungsten Halogen Lamp 12.5kg
EF51B 220V-240V 500W 380M GY9.5 Tungsten Halogen Lamp 18kg
EF101B 220V-240V 1000W 570M GY9.5 Tungsten Halogen Lamp 12.5kg
EF201B 220V-240V 2000W 1600M GY16 Tungsten Halogen Lamp 22.0kg
