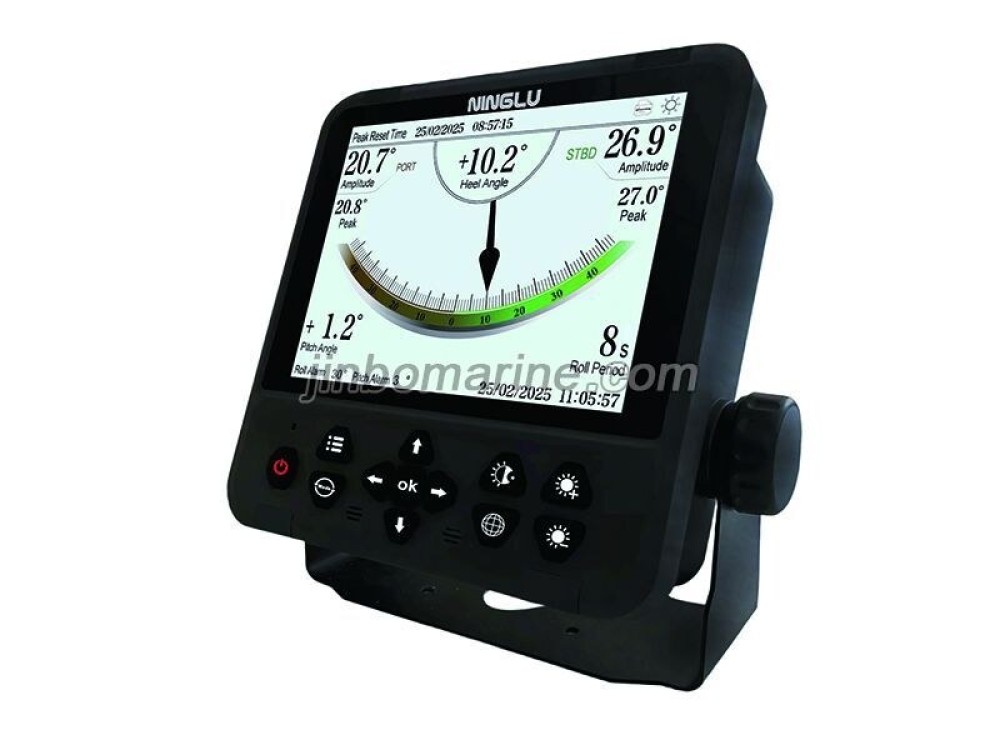

EI330 8 Inch TFT Electronic Inclinometer

EI330 8 Inch TFT Electronic Inclinometer

Display：8 inch TFT 800x600 pixels

Power Supply：DC24VIAC100～240V

Roll /Pitch Angle Range：-90～+90°

Roll /Pitch Angle Accuracy：±0.1°

Roll Amplitude Range：0 ～ +90°

Roll Amplitude Accuracy：±0.1°

Roll Period Range：4～40s

Roll Period Accuracy：1s

Alarm Mode：Roll Alarm / Sensor Failure/Power Failure Alarm

Data Output：NMEAO183(HRM/POS/ALC/ALF/HBT)

Operating Temperature：-15～+55°C

Display:IP23

Sensor:IP67
