China Electro-Hydraulic Jack:

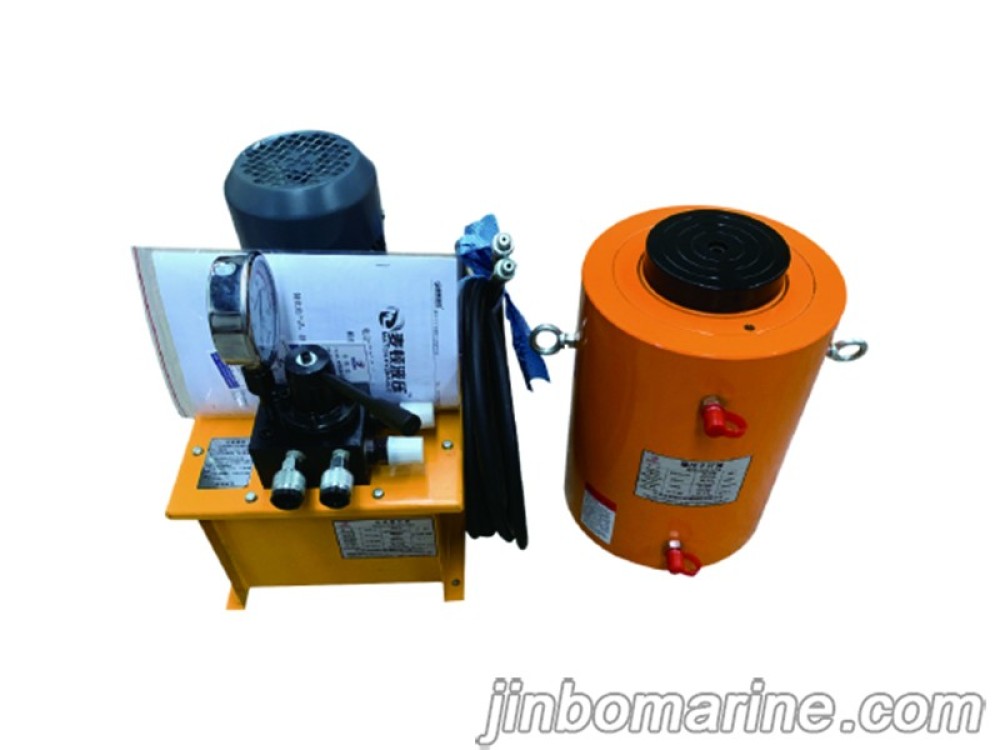

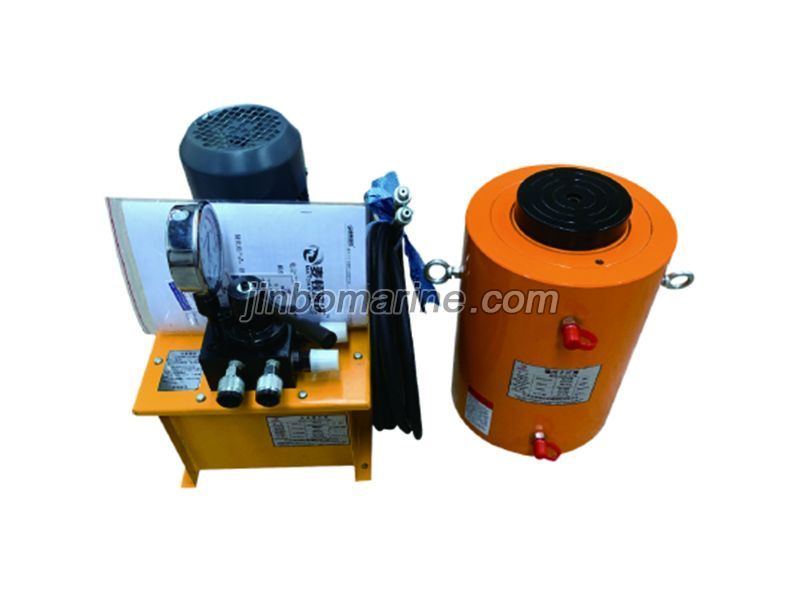

Electro-Hydraulic Jack
Product features:
Double acting, hydraulic reset
Piston rod is electroplated with 40Cr metal layer to increase surface brightness and hardness to prevent air corrosion.
The piston and guide ring are made of welded copper,which is more wear-resistant.
Special guide ring design can withstand eccentric loads up to 5%of the rated load capacity of the jack.
Equipped with a dust ring to prevent dust from entering the cylinder,all models include quick connectors and dust caps. Quick connectors contain layer protection.
There are as many as 13 seals inside the cylinder, which can effectively ensure the sealing performance and prolong the service life.
| Model |
Capacity T |
Height mm |
Stroke mm |
Max Height mm |
Outside mm |
Diameter mm |
Diameter mm |
Pressure Mpa |
Weight kg |
Electric pump station |
|||
| DYG 50/100 | 50 | 225 | 100 | 325 | 133 | 70 | 100 | 63Mpa | 35 |
50T-200T Optional 0.55kW 0.75kW 1.5kW 3kW 4kW 5.5kW |
|||
| DYG 50/160 | 285 | 160 | 445 | 39 | |||||||||
| DYG 50/200 | 325 | 200 | 525 | 46 | |||||||||
| DYG 50/300 | 425 | 300 | 725 | 48 | |||||||||
| DYG 50/500 | 625 | 500 | 1125 | 63 | |||||||||
| DYG 100/100 | 100 | 250 | 100 | 350 | 180 | 100 | 140 | 63Mpa | 58 | ||||
| DYG 100/160 | 310 | 160 | 470 | 63 | |||||||||
| DYG 100/200 | 350 | 200 | 550 | 78 | |||||||||
| DYG 100/300 | 450 | 300 | 750 | 96 | |||||||||
| DYG 100/500 | 650 | 500 | 1150 | 130 | |||||||||
| DYG 150/100 | 150 | 260 | 100 | 360 | 219 | 125 | 170 | 63Mpa | 58 | ||||
| DYG 150/160 | 320 | 160 | 480 | 69 | |||||||||
| DYG 150/200 | 360 | 200 | 560 | 86 | |||||||||
| DYG 150/300 | 460 | 300 | 760 | 103 | |||||||||
| DYG 150/500 | 660 | 500 | 1160 | 255 | |||||||||
| DYG 200/100 | 200 | 285 | 100 | 385 | 273 | 150 | 200 | 63Mpa | 100 | ||||
| DYG 200/160 | 345 | 160 | 505 | 120 | |||||||||
| DYG 200/200 | 385 | 200 | 585 | 150 | |||||||||
| DYG 200/300 | 485 | 300 | 785 | 190 | |||||||||
| DYG 200/500 | 685 | 500 | 1185 | 230 | |||||||||
| Model |
Capacity T |
Height mm |
Stroke mm |
Max Height mm |
Outside mm |
Diameter mm |
Diameter mm |
Pressure Mpa |
Weight kg |
Electric pump station |
|||
| DYG 320/100 | 320 | 310 | 100 | 410 | 320 | 180 | 250 | 63Mpa | 196 |
1.5kW 3kW 4kW 5.5kW |
|||
| DYG 320/160 | 370 | 160 | 530 | 240 | |||||||||
| DYG 320/200 | 410 | 200 | 610 | 258 | |||||||||
| DYG 320/300 | 510 | 300 | 810 | 311 | |||||||||
| DYG 320/500 | 710 | 500 | 1210 | 456 | |||||||||
| DYG 400/100 | 400 | 355 | 100 | 455 | 375 | 200 | 290 | 63Mpa | 198 |
3kW 4KW 5.5kW 7.5kW |
|||
| DYG 400/160 | 415 | 160 | 575 | 231 | |||||||||
| DYG 400/200 | 460 | 200 | 660 | 264 | |||||||||
| DYG 400/300 | 555 | 300 | 855 | 367 | |||||||||
| DYG 400/500 | 755 | 500 | 1255 | 456 | |||||||||
| DYG 500/100 | 500 | 360 | 100 | 460 | 430 | 200 | 290 | 63Mpa | 323 |
3kW 4KW 5.5kW 7.5kW |
|||
| DYG 500/160 | 420 | 160 | 580 | 330 | |||||||||
| DYG 500/200 | 460 | 200 | 660 | 420 | |||||||||
| DYG 500/300 | 560 | 300 | 860 | 581 | |||||||||
| DYG 500/500 | 760 | 500 | 1260 | 599 | |||||||||
| DYG 630/100 | 630 | 417 | 100 | 517 | 500 | 250 | 320 | 63Mpa | 560 |
4kW 5.5kW 7.5kW 11KW |
|||
| DYG 630/160 | 477 | 160 | 637 | 633 | |||||||||
| DYG 630/200 | 517 | 200 | 717 | 696 | |||||||||
| DYG 630/300 | 617 | 300 | 917 | 898 | |||||||||
| DYG 630/500 | 817 | 500 | 1317 | 1250 | |||||||||
| DYG 800/100 | 800 | 488 | 100 | 588 | 560 | 300 | 360 | 63Mpa | 896 |
7.5kW 11KW |
|||
| DYG 800/200 | 598 | 200 | 798 | 1040 | |||||||||
| DYG 800/300 | 698 | 300 | 998 | 1380 | |||||||||
| DYG 800/500 | 898 | 500 | 1398 | 1520 | |||||||||
| DYG1000/100 | 1000 | 530 | 100 | 630 | 610 | 320 | 450 | 63Mpa | 1286 |
7.5kW 11KW |
|||
| DYG1000/200 | 620 | 200 | 820 | 1337 | |||||||||
| DYG1000/250 | 670 | 250 | 920 | 1430 | |||||||||
| DYG1000/300 | 720 | 300 | 1020 | 1522 | |||||||||
| DYG1000/400 | 820 | 400 | 1220 | 1706 | |||||||||
| DYG1200/200 | 1200 | 640 | 200 | 840 | 670 | 380 | 500 | 63Mpa | 1647 | ||||
| DYG1200/250 | 690 | 250 | 940 | 1752 | |||||||||
| DYG1200/300 | 740 | 300 | 1040 | 1857 | |||||||||
| DYG1200/400 | 840 | 400 | 1240 | 2069 | |||||||||
| DYG1500/200 | 1500 | 670 | 200 | 870 | 750 | 400 | 560 | 63Mpa | 2140 | ||||
| DYG1500/250 | 720 | 250 | 970 | 2163 | |||||||||
| DYG1500/300 | 770 | 300 | 1070 | 2390 | |||||||||
| DYG1500/400 | 870 | 400 | 1270 | 2642 | |||||||||
| DYG2000/200 | 2000 | 720 | 200 | 920 | 860 | 480 | 630 | 63Mpa | 3088 | ||||
| DYG2000/250 | 770 | 250 | 1020 | 3264 | |||||||||
| DYG2000/300 | 820 | 300 | 1120 | 3440 | |||||||||
| DYG2000/400 | 920 | 400 | 1320 | 3794 | |||||||||
