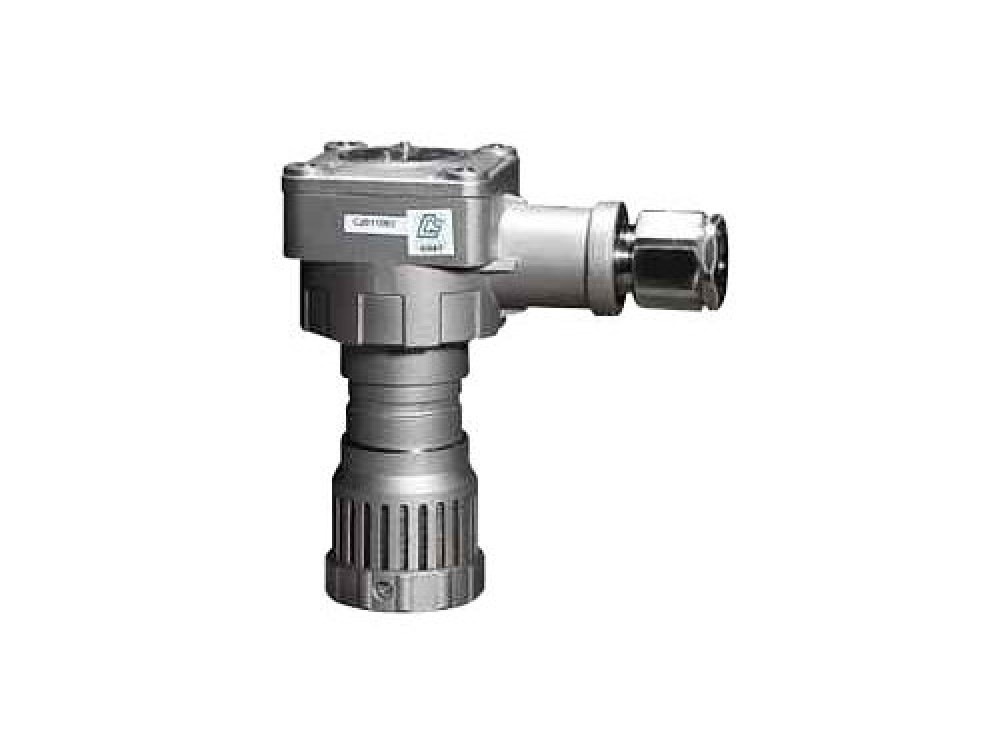

ES2000T Combustible Gas Detector

Request a Quote Not what you need, please send your RFQs via Email.

Details

Performance

Gas Detector: Combustible gas in the ES2000T(Marine) list of measurable combustible gas.

Detection Principle: Catalytic Combustion Type

Accuracy: +/-3% FS

Response Time: T90<20S(Flammable Gas)

Electrical Specification

Power Supply: 24V DC

Power consumption: <2.0W

Output Signal: Three wire system 4-20Ma

Structure Material

Main Body: Stainless Steel 304,

Approval

Ex Certification: Exdibll AT3

Fire Certification: CCCF

Classification Society Certificate: CCS

Metrological Certification:CMC

Executive Standard: GB168808, GD-01 2006

Protection Grade: IP56

Temperature Range: -40 -70 degree.

Humidity Range: 10-95%RH
