EU Swivel Eye And Jaw, SS304 OR SS316
- Category:Chain Swivel
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

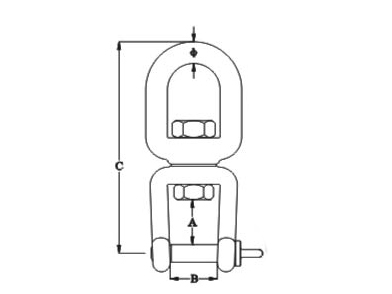

China EU Swivel Eye And Jaw, SS304 OR SS316:
| SIZE |
Φ mm |
A mm |
B mm |
C mm |
SWL kgs |
BL kgs |
| M6 | 6 | 11 | 12 | 60 | 300 | 1200 |
| M8 | 8 | 15.5 | 16 | 80 | 475 | 1900 |
| M10 | 10 | 20.5 | 20 | 103 | 875 | 3500 |
| M13 | 13 | 25.5 | 26 | 132 | 1250 | 5000 |
| M16 | 16 | 36 | 32 | 167 | 2125 | 8500 |
| M20 | 19 | 41 | 38 | 199 | 2500 | 10000 |
