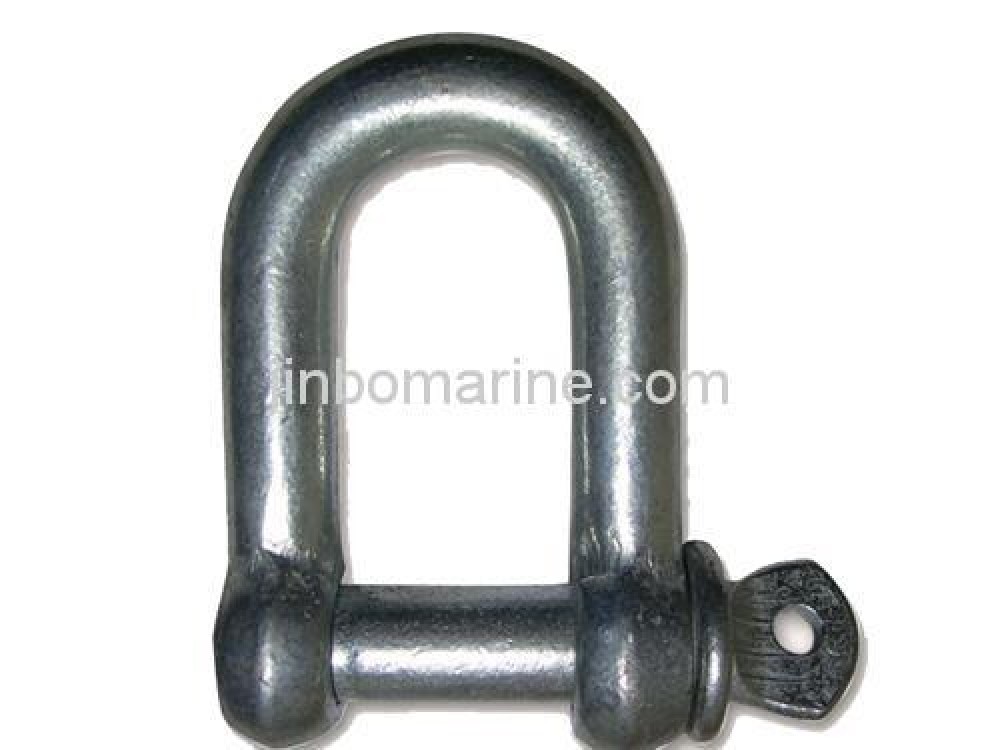

European Type Large Dee Shackle
- Category:Shackle
- Material:45# Steel and 40Cr Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Similar Name
European Type Dee Shackle
European Type Large Dee Shackle
European Type Free Forged Shackle
European Type Straight Shackle
Main Specification
- U type body and a lateral pin.
- Drop Forged
- 45# Steel and 40Cr Steel
- Used in lifting or fasten cargo or machinery purpose.

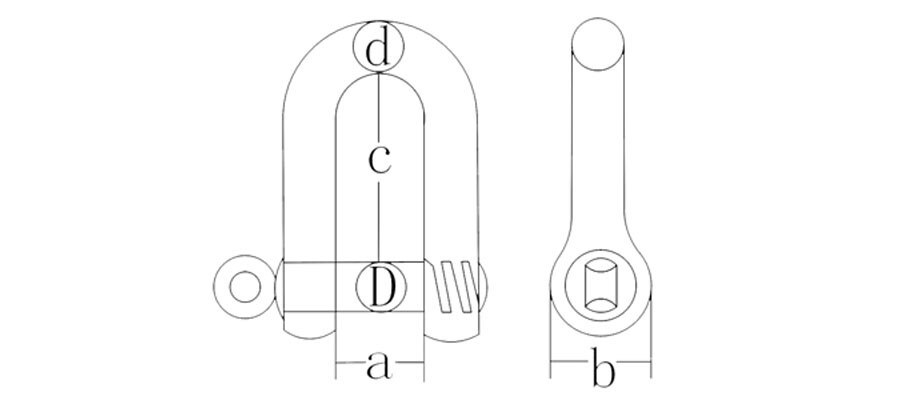

Size Table
| SWL | D | d | a | c | b | Weight/100 pcs |
| kg | mm | mm | mm | mm | mm | kg |
| 80 | 5 | 5 | 10 | 19 | 11 | 1.9 |
| 100 | 6 | 6 | 13 | 25 | 14 | 3.4 |
| 200 | 8 | 8 | 16 | 32 | 18 | 7 |
| 320 | 10 | 10 | 19 | 38 | 20 | 13 |
| 520 | 12 | 12 | 25 | 51 | 26 | 24 |
| 800 | 16 | 16 | 32 | 64 | 33 | 50 |
| 1100 | 20 | 20 | 38 | 76 | 40 | 80 |
| 1500 | 22 | 22 | 44 | 89 | 50 | 130 |
| 2100 | 25 | 25 | 51 | 100 | 57 | 200 |
| 3000 | 28 | 28 | 57 | 115 | 68 | 300 |
| 3500 | 32 | 32 | 64 | 127 | 73 | 430 |
| 5000 | 38 | 38 | 76 | 152 | 85 | 675 |
| 7000 | 45 | 45 | 90 | 180 | 96 | 1250 |
| 8000 | 50 | 50 | 102 | 200 | 108 | 1750 |
