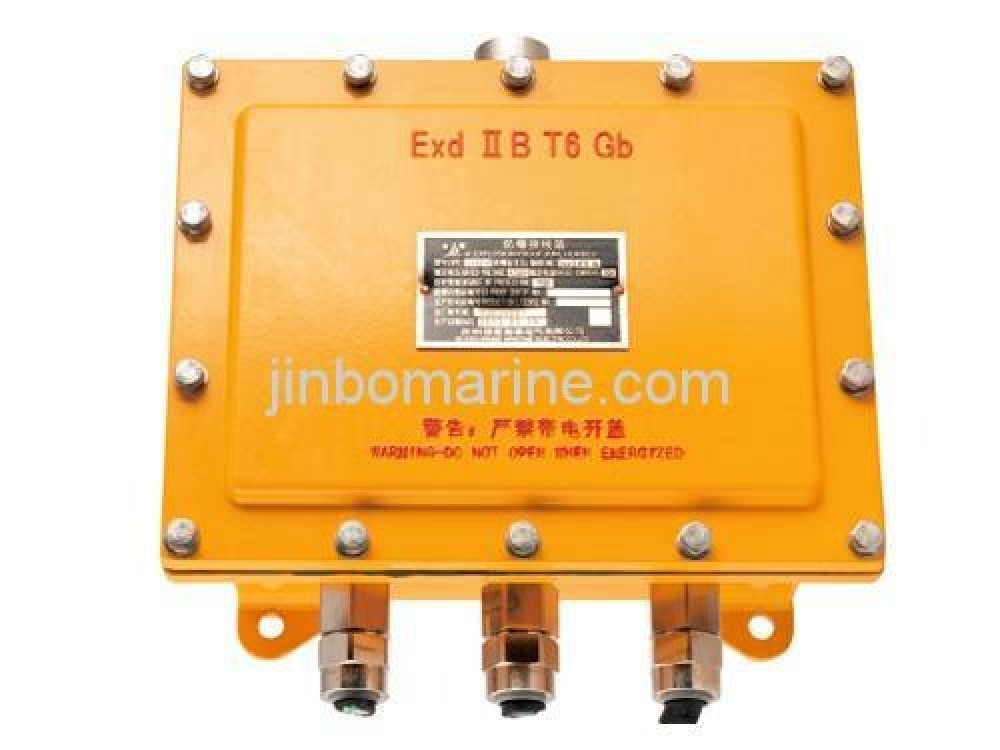

Explosion-proof Junction Box, JXD8-4
PDF Datasheet
We can supply according to your requirement.
Main Specification:
| Current | 20A |
|---|---|
| Voltage | AC 380V |
| Explosion-Proof Mark | Exe II B T6 gb |
| Protection Class | IP56 |
| Material | Cast Aluminum Alloy |
Explosion Gland
Unarmoured Cable
| Screw Thread Specification | Cable Diameter | Protection Class |
|---|---|---|
| M20X1.5 | Dia.11-14.3 | IP66/68 |
| M25X1.5 | Dia.13-20.2 | IP66/68 |
| M32X1.5 | Dia. 19-26.5 | IP66/68 |
| M40X1.5 | Dia. 25-32.5 | IP66/68 |
Armoured Cable
| Screw Thread Specification | Inside Diameter | Outside Diameter | Protection Class |
|---|---|---|---|
| M20X1.5 | Dia.11-14.3 | Dia.13-20.2 | IP66/68 |
| M20X1.5 | Dia8-11 | Dia. 12-17 | IP66/68 |
| M25X1.5 | Dia.13-20.2 | Dia. 19-26.5 | IP66/68 |
| M25X1.5 | Dia.12-17 | Dia. 17-22 | IP66/68 |
| M32X1.5 | Dia.19-26.5 | Dia. 25-32.5 | IP66/68 |
| M32X1.5 | Dia.17-22 | Dia.23-28 | IP66/68 |
| M40X1.5 | Dia. 25-32.5 | Dia. 31.5-42.3 | IP66/68 |
| M40X1.5 | Dia. 23-28 | Dia.30.37 | IP66/68 |
