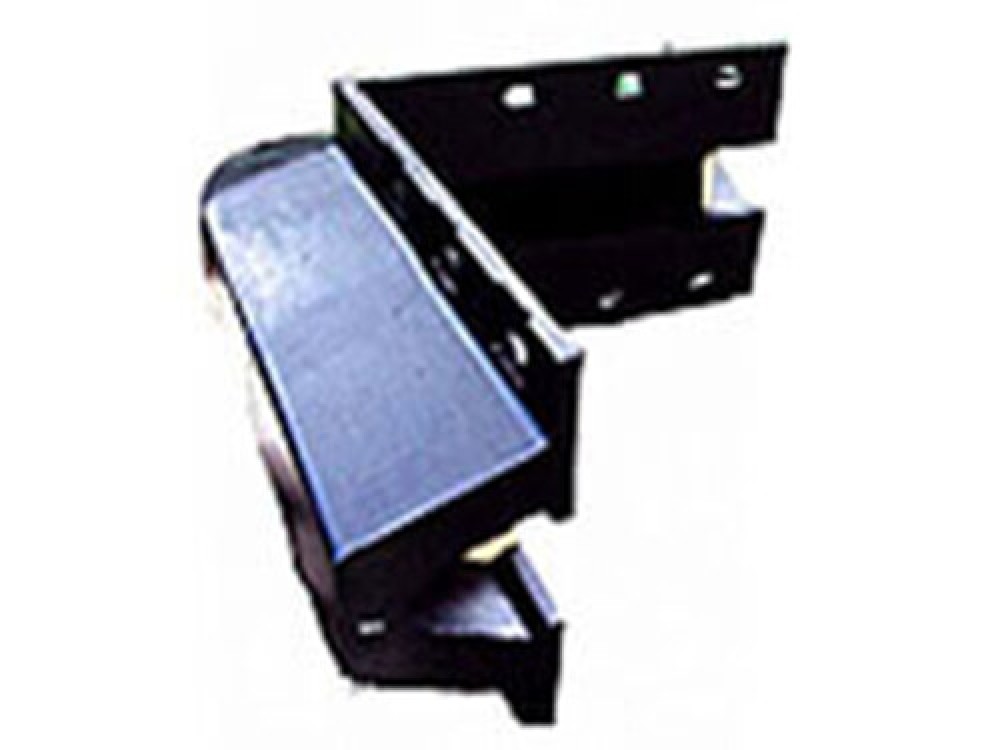

Fender For Dock Corner
- Category:Marine Fender
- Material:Natural Rubber
- Delivery Time:10 to 15 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Fender For Dock Corner:
Usually install on the cornder of harbour and dock.

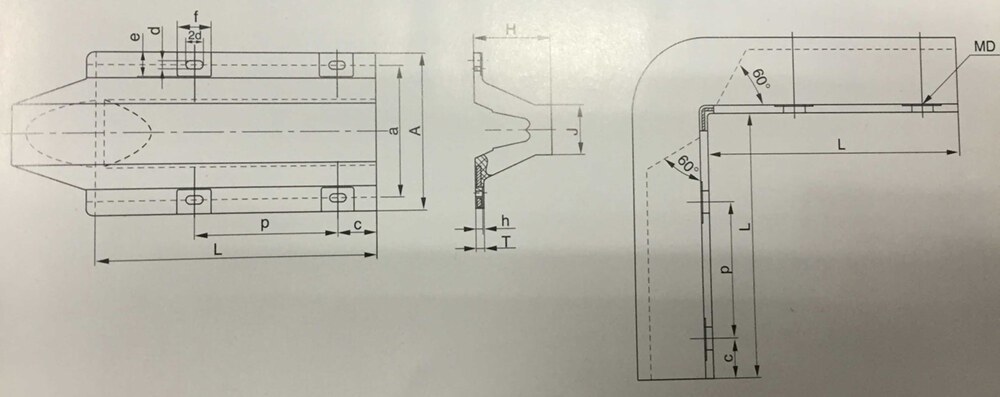

Specification:
| Specification | 150Hx500L | 200Hx750L | 250Hx750L | 250Hx1000L |
| H | 150 | 200 | 250 | 250 |
| L | 500 | 750 | 750 | 1000 |
| A | 300 | 400 | 500 | 500 |
| P | 200 | 350 | 350 | 550 |
| a | 240 | 320 | 410 | 410 |
| C | 75 | 100 | 100 | 150 |
| d | 25 | 29 | 34 | 34 |
| e | 55 | 75 | 90 | 90 |
| f | 95 | 105 | 125 | 125 |
| J | 98 | 130 | 164 | 164 |
| T | 22.5 | 35 | 37.5 | 37.5 |
| h | 16.5 | 30 | 20.5 | 20.5 |
| MD | M22 | M24 | M27 | M27 |
