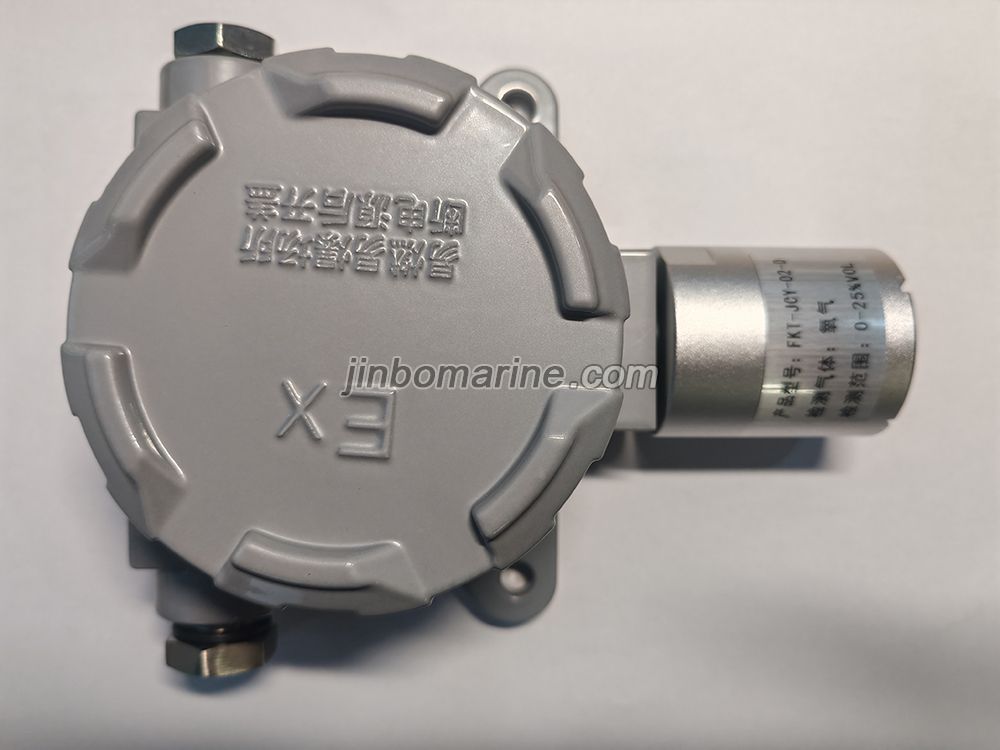

FKT-JCY-02-D oxygen gas detector

Technical Specifications

FKT-JCY-02-D oxygen gas detector

Operating voltage: 24VDC;

Detected gases: oxygen, toxic and hazardous gases;

Detection principle: Electrochemical;

Measurement range: 0~50,000 (depending on the detected gas);

Resolution: 1, 0.1, 0.01 (depending on the gas being detected);

Accuracy:±3%FS to±10%FS (dependent on the gas being measured);

Repeatability:±1.0%;

Linear error:±1.0%;

Response time: 10~180s (gas-dependent);

Recovery time: 10~180s (gas-dependent);

Maximum power consumption: 0.48W;

Output signal: 4~20mA current signal;

Control output: optical signal, optional;

Shell material: Aluminum alloy flameproof enclosure:

Weight: 1.1Kg;

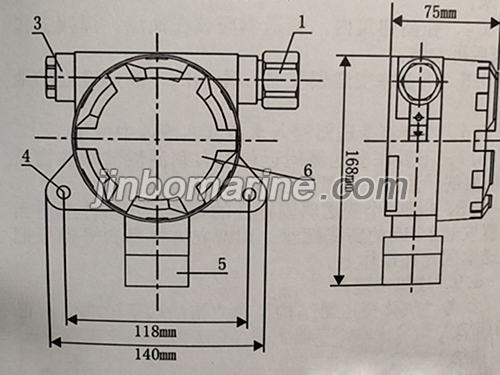

External dimensions: 168×140×75mm;

Operating temperature: -20°C to +50°C;

Relative humidity: 10% RH to 95% RH (non-condensing);
