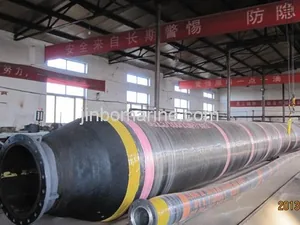

Floating Oil Hose

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Floating Oil Hose:

Good flexibility and low temperature, ozone and ethane resistance.

Hose Lining: NBR Synthetic Material

Reinforcement Layer: High tensile texitle with helix stainless steel helix

Cover Rubber Layer: CR Synthetic Low Temperature Resistance Material

Floating Oil Hose Specification

Type Dimension Working pressure (Mpa) Burst pressure
(Mpa)
ID(mm) OD(mm) Length(m) Bending Radium(m)
Floating Oil Hose 200 380 9.15/10.67 1.5 15bar 75bar
250 460 9.15/10.67 1.85
300 530 9.15/10.67 2.5
400 655 9.15/10.67 3.1
500 785 9.15/10.67 3.7
600 920 9.15/10.67 4.6

Submarine Oil Hose Specification

Type Dimension Working pressure (Mpa) Burst pressure
(Mpa)
ID(mm) OD(mm) Length(m) Bending Radium(m)
Submarine Oil Hose 150 200 9.15/10.67 0.9 15bar 75bar
200 255 9.15/10.67 1.2
250 310 9.15/10.67 1.5
300 360 9.15/10.67 1.85
400 470 9.15/10.67 2.5
500 582 9.15/10.67 3.1
600 694 9.15/10.67 3.7
