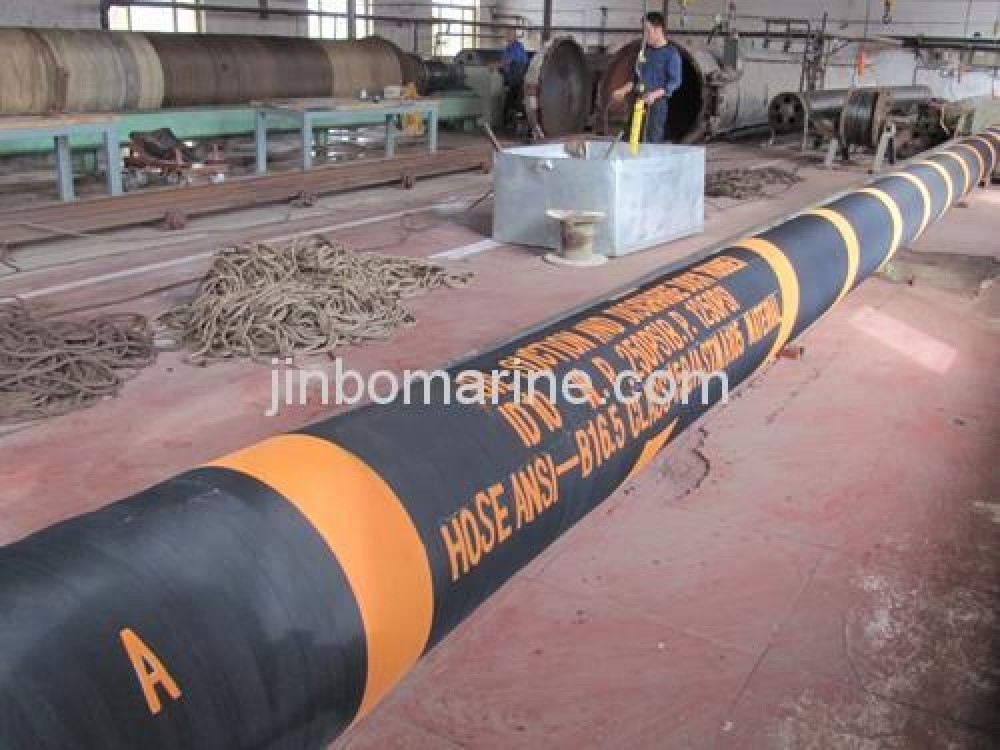

Fuel Discharge Hose

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Fuel Discharge Hose:

Used in all kinds of oil pump, the reinforcement is tire cord layer

T: Black Nitrile Rubber

R: Braided Wire Layer

Working Temperature: -30℃to +80℃

Safety Factor: 1:3

Specification

ID OD Length Bend radium WP Weight
in mm in mm ft m in mm Psi Kg/cm² Kg/m
2 50.8 2.709 68.8 66 20 14 350 150 10 2.69
2 1/2 63.5 3.209 81.5 66 20 16 400 150 10 3.22
3 76.2 3.803 96.6 66 20 18 450 150 10 4.19
4 101.6 5.031 127.8 66 20 24 600 150 10 7.33
5 127 6.031 153.2 66 20 30 750 150 10 8.89
6 152.4 7.142 181.4 66 20 34 850 150 10 13.76
8 203.2 9.409 239 66 20 44 1100 150 10 21.17
10 254 12.063 306.4 33 10 54 1350 150 10 41.34
12 304.8 14.126 358.8 33 10 64 1600 150 10 50
