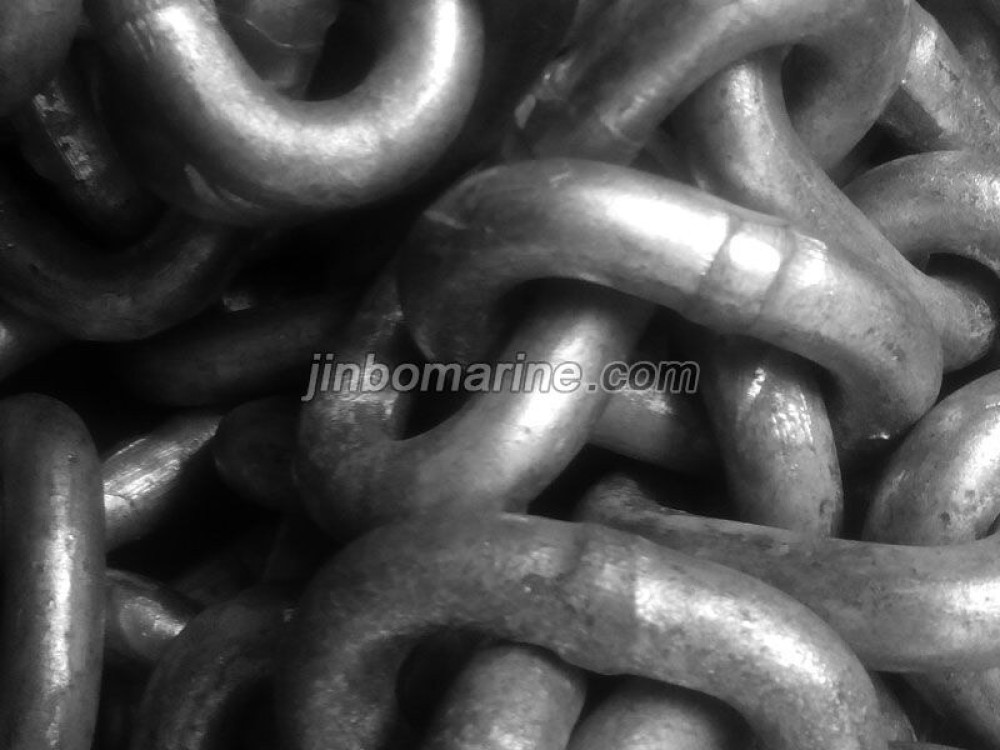

G43 High Strength Link Chain
- Category:Industrial Chains
- Material:Steel
- Packing Details:Wooden Case
- Delivery Time:30 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China G43 High Strength Link Chain:
G43 Link Chain is used for lifting, lashing, finishing or agriculture filed, surface finish is black color, galvanized or hot dip galvanized.
Material: Steel
Diameter: 7mm to 13mm
G43 Grade Chain Dimension
| Nominal Size | Working Load | Proof Test Load | Breaking Load | Inside Length | Inside Width | ||||||
| MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
| 7 | 1/4 | 1180 | 2800 | 17.3 | 3900 | 34.6 | 7800 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.7 | 5/16 | 1770 | 3900 | 26 | 5850 | 52 | 11700 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8 | 2450 | 5400 | 36 | 8100 | 72 | 16200 | 35 | 1.38 | 14 | 0.55 |
| 11.9 | 7/16 | 3270 | 7200 | 48 | 10800 | 96 | 21600 | 41.6 | 1.64 | 16.6 | 0.65 |
| 13 | 1/2 | 4170 | 9200 | 61.3 | 13800 | 122.6 | 27600 | 45.5 | 1.79 | 18.2 | 0.72 |
