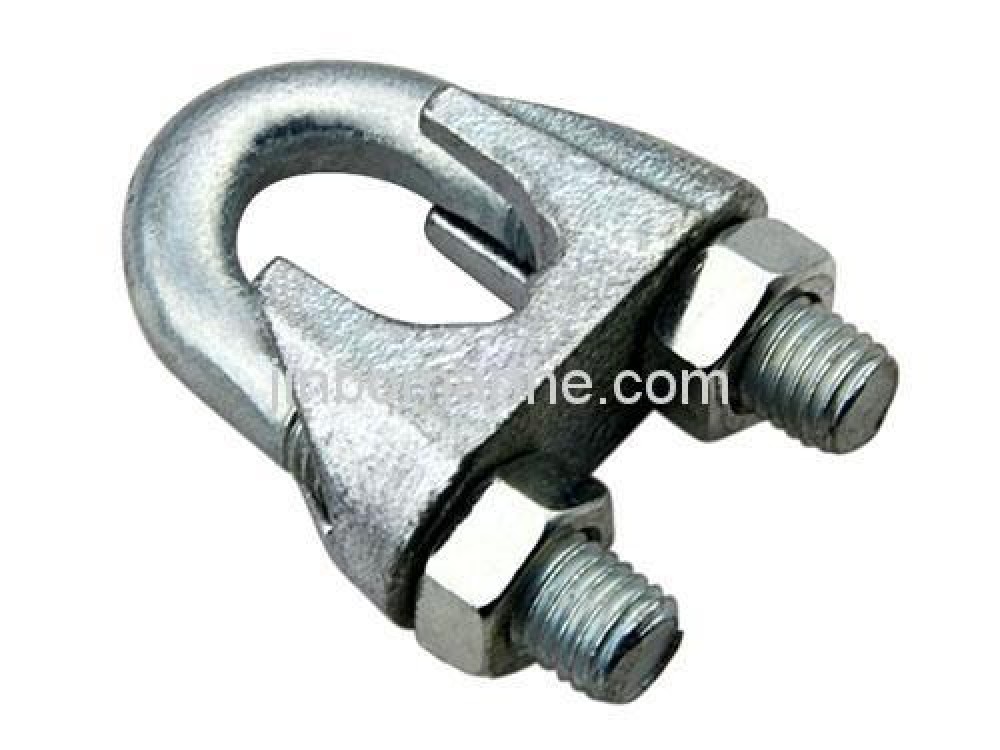

Galv Malleable Wire Rope Clips DIN 741 Clips

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Similar Name

DIN 741 wire rope clips

DIN 741 Wire rope clamps

Malleable Cable Clamp DIN741

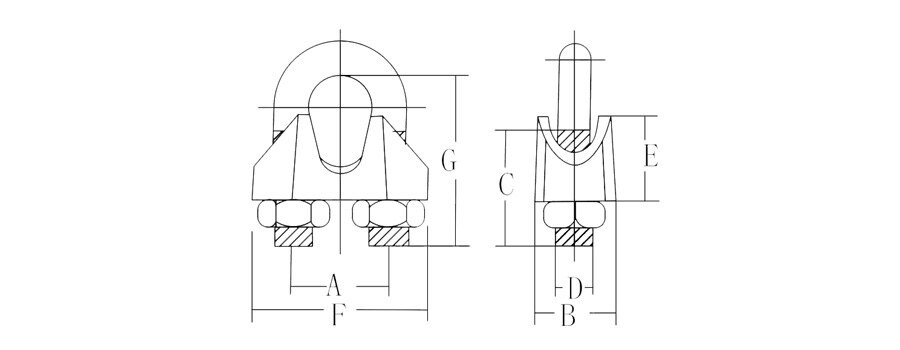

Size Table

Size(mm) A B C D E F G 100/WT
3 9 10 12 4 10 21 16 1.4
5 11 11 13 5 10 23 19 1.5
6.5 13 12 15 5 11 26 23 2.1
6 16 14 19 6 15 30 28 4.1
10 19 18 22 8 17 34 34 6.8
11 20 19 22 8 18 36 36 7.2
13 24 23 30 10 21 42 45 13
14 25 23 30 10 22 44 47 13.5
16 29 26 33 12 26 50 51 21
19 32 29 38 12 30 54 63 28
22 37 33 44 14 34 61 71 40
26 41 35 45 14 37 65 81 44
30 48 37 50 16 43 74 94 66
34 52 42 55 16 50 80 104 85
40 58 45 60 16 55 88 124 104
