Gliding Water Tight Lower Rudder Carrier CB*790-87

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Product Advantage

This lower rudder bearer is used together with CB*789 upper rudder bearer and has a

good sand prevention effect

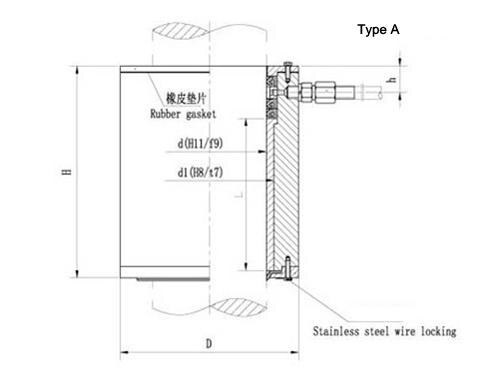

Type Dimensions (mm)
d D H L h
A 50 50 100 123 60 26
60 60 110 136 70 28
70 70 125 152 85 28
80 80 140 162 95 28
90 90 155 177 110 28
100 100 160 216 130 37
110 110 170 226 140 37
120 120 190 236 150 37
130 130 205 246 160 37
140 140 220 255 170 37
150 150 240 282 195 37
160 160 250 297 210 37
170 170 260 307 220 37
180 180 272 330 235 40
190 190 292 345 250 40
200 200 310 359 260 44
220 220 340 385 286 44
240 240 370 411 312 44
260 260 400 448 338 45
280 280 430 474 364 50
300 300 456 500 390 50
320 320 486 530 420 50
340 340 512 552 442 50
360 360 540 580 470 50
380 380 568 605 495 50
400 400 600 630 520 50
420 420 634 687 550 62.5
440 440 662 712 575 62.5
460 460 690 737 600 62.5
480 480 720 762 625 62.5
500 500 750 787 650 62.5

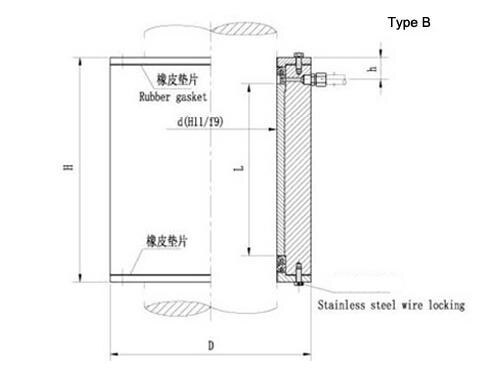

Type Dimensions (mm)
d D H L h
B 50 50 100 124 60 26
60 60 110 138 70 28
70 70 125 153 85 28
80 80 140 163 95 28
90 90 155 178 110 28
100 100 160 220 130 37
110 110 170 230 140 37
120 120 190 250 150 37
130 130 205 260 160 37
140 140 220 285 170 37
150 150 240 300 195 37
160 160 250 310 210 37
170 170 260 330 220 37
180 180 272 348 235 40
190 190 292 366 250 40
200 200 310 392 260 44
220 220 340 418 286 44
240 240 370 458 312 44
260 260 400 484 338 45
280 280 430 510 364 50
300 300 456 540 390 50
320 320 486 562 420 50
340 340 512 590 442 50
360 360 540 615 470 50
380 380 568 640 495 50
400 400 600 700 520 50
420 420 634 725 550 62.5
440 440 662 750 575 62.5
460 460 690 775 600 62.5
480 480 720 800 625 62.5
500 500 750 787 650 62.5
