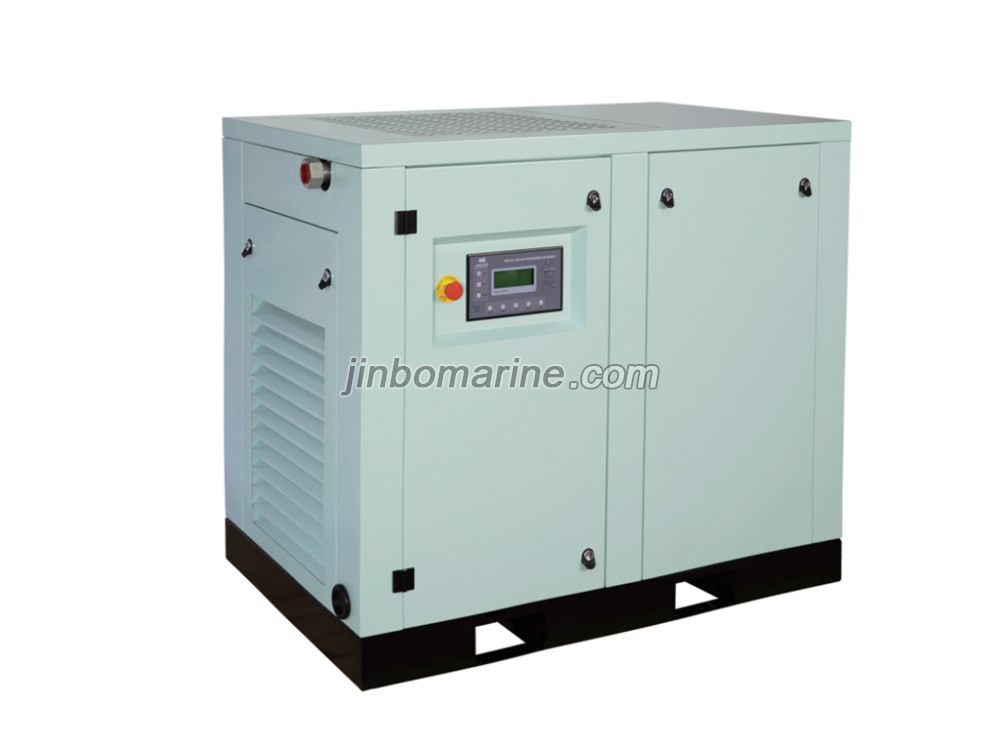

GRF-20C Navy Screw Compressors
- Category:Screw Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
1. Using twin-screw compression mainly used in ships and export projects;
2. PLC microcomputer intelligent control simple operation and maintenance;
3. Continuous operation for 24 hours;
4. Provide classification society certification;
5. Customized according to customer requirements;
6. Special products for navy ships, with stable and reliable data
Technical data:
| No. | Model | Volume flow m3/min | Exhaust pressure MPa | Power kW | Lubricating oil quantity（L） | Outlet pipe diameter | Weight kg | L x W x H mm |
| 1 | GRF-10C | 0.8 | 0.8 | 7.5 | 18 | G3/4 | 480 | 1280x1000x1150 |
| 1.1 | 1 | |||||||
| 2 | GRF-15C | 1.2 | 0.8 | 11 | 18 | G3/4 | 480 | 1280x1000x1150 |
| 1.6 | 1 | |||||||
| 3 | GRF-20C | 1.8 | 0.8 | 15 | 18 | G3/4 | 480 | 1280x1000x1150 |
| 2.4 | 1 | |||||||
| 4 | GRF-25C | 2 | 0.8 | 18.5 | 18 | G3/4 | 480 | 1280x1000x1150 |
| 2.8 | 1 | |||||||
| 5 | GRF -30C | 3.4 | 0.8 | 22 | 13 | G1 | 680 | 1110x1000x1450 |
| 3.1 | 1 | |||||||
| 6 | GRF -50C | 6.4 | 0.8 | 37 | 18 | G11/2 | 900 | 1300x1000x1600 |
| 5.6 | 1 | |||||||
| 7 | GRF -75C | 10 | 0.8 | 55 | 45 | DN50 | 1600 | 2200x1400x1500 |
| 8.5 | 1 | |||||||
| 8 | GRF -100C | 12.4 | 0.8 | 75 | 55 | DN50 | 1900 | 2200x1400x1500 |
| 11.1 | 1 | |||||||
| 9 | GRF -120C | 15.3 | 0.8 | 90 | 75 | DN65 | 2300 | 2200x1400x1500 |
| 14 | 1 | |||||||
| 10 | GRF -150C | 20 | 0.8 | 110 | 80 | DN65 | 2300 | 2200x1400x1500 |
