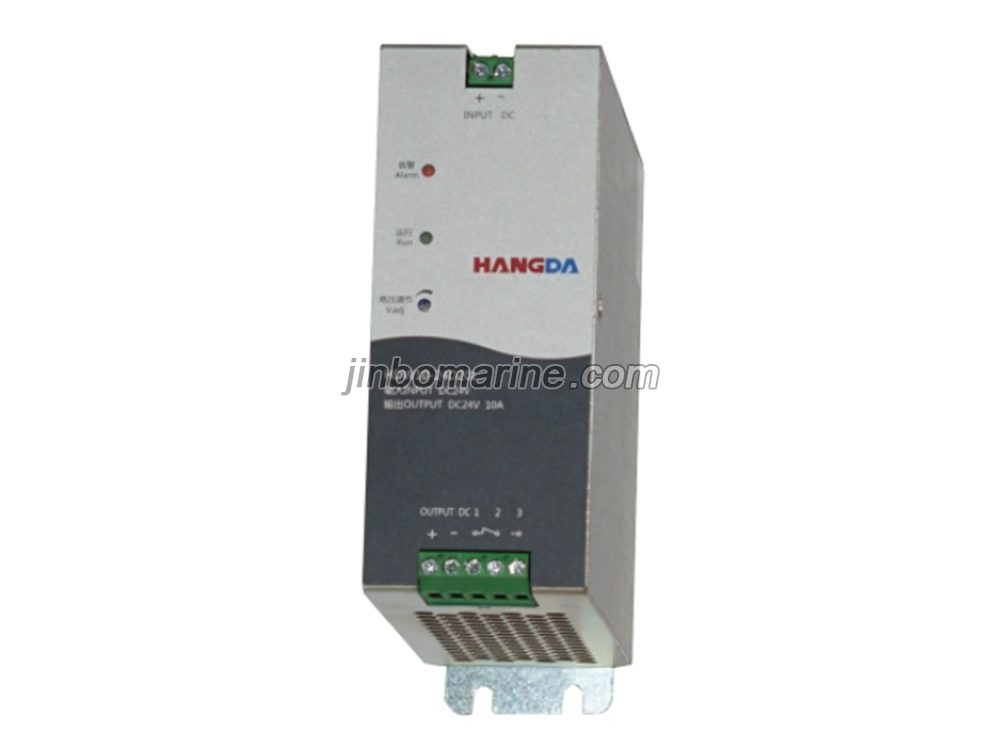

HDW10-24D20L Marine Regulated Power Supply
- Category:Lifeboat And Rescue Boat Accessories
- Standards:IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
HDW10-24D20L Marine Regulated Power Supplyseries of products meet the specifications and requirements for the use of electrical equipment related to international and domestic navigation vessels.
1. Comprehensive protection functions, including input under-voltage, over-voltage protection, output over-voltage protection, output short-circuit protection, over-temperature protection, etc.
2. In order to meet the special needs of customers, it can be expanded into a charging power supply and can be expanded into a 12V output mode.
3. High power density design, high voltage stabilization accuracy, more reliable performance, efficiency up to 90%.
4. Use bottom plate installation or optional standard TH35 rail installation
Technical data:
| Specifications（Output current） | 10A | |||
| Input | Rated voltage | 24VDC | ||
| Input range | Rated voltage ±20% | |||
| Input frequency | 45~65HZ | |||
| Efficiency | ≥88% | |||
| Maximum current | Single-phase 220 | ＜16.5A | ||
| Output | voltage | 24VDC±0.1V(Can be adjusted according to customer requirements and battery specifications） | ||
|
Average
floating charge conversion current |
±1% | |||
| Regulation accuracy | VPP≦200mV | |||
| Features | Alarm and protection functions |
Input under
voltage protection, input over voltage protection, output under voltage
warning, output over voltage protection, output short circuit protection, output over current protection, power supply over temperature protection |
||
| Standard functions | Public warning, fault passive dry contact port (contact limit specification: 32V / 1A) | |||
| Indication and adjustment | Input instructions, work instructions, fault instructions, current regulation | |||
|
Working environment |
Operating temperature | ‐15℃~+55℃ | ||
| Storage temperature | ‐25℃~+85℃ | |||
| Relative humidity | 0~95%（Non-condensing） | |||
| Atmospheric pressure | 70kPa~106kPa | |||
| Cooling method | Air-cooled | |||
| Standard range | Safety | IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11 | ||
| Conduction, radiation | CISPR16、EN55022 | |||
| Certification | CCS Type Approval | |||
| Others | Size(WxDxH)mm | 52x124x152 | ||
| Weight | 0.85kg | |||
| Installation method | Bottom plate installation | |||
