Heavy Duty Hawser Shackle
- Category:Chafe Chain
- Material:Forged alloy Steel
- Packing Details:Wooden box
- Delivery Time:20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Heavy Duty Hawser Shackle:
Heavy Duty Hawser Shackle is one of double nuts shackle.
Technical Specification
Forged alloy Steel quenched and tempered.
Finish: Galvanized or Painting.
Proofload certificate

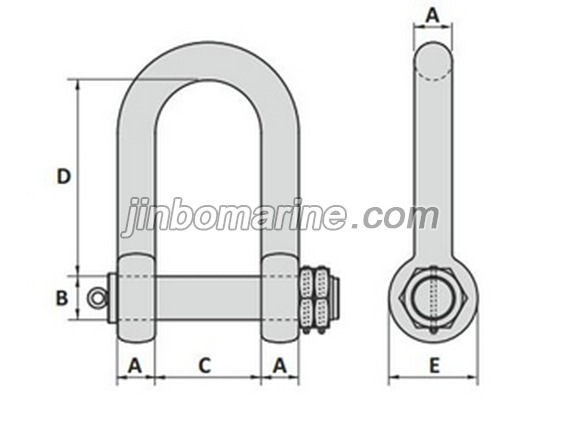

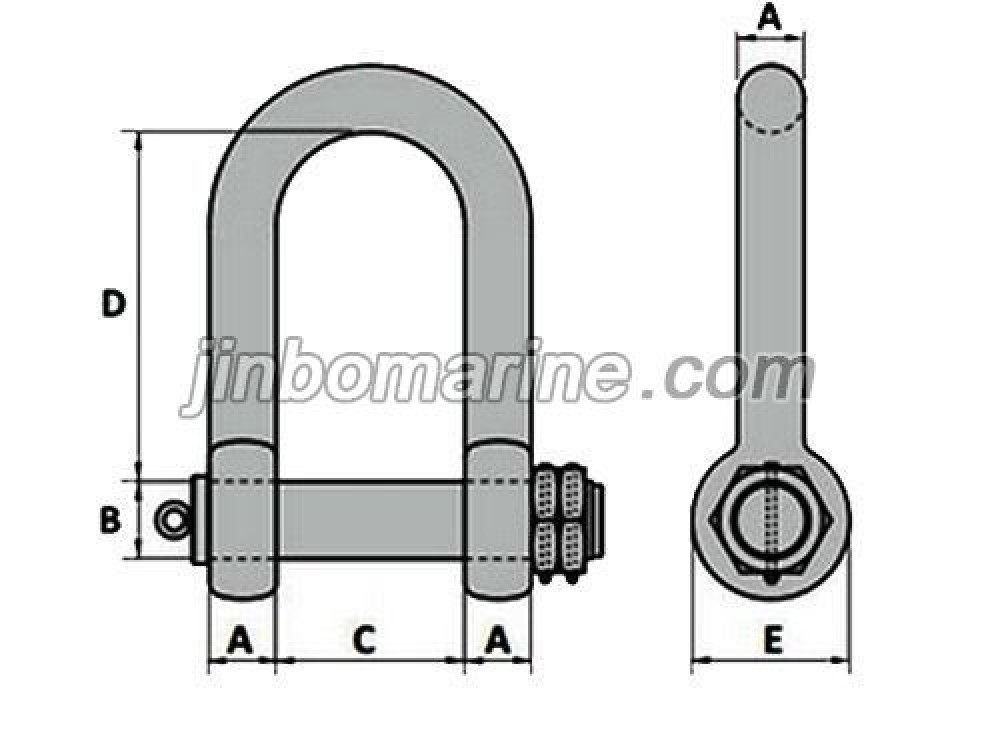

| SWL(Ton) | MBL(Ton) | Thimble Size(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Weight(kg) |
| 34 | 170 | 8 1/2"-10" | 50 | 65 | 140 | 285 | 115 | 23 |
| 60 | 300 | 11"-13" | 70 | 76 | 160 | 360 | 165 | 59 |
| 85 | 425 | 14"-15" | 80 | 90 | 220 | 390 | 178 | 85 |
| 110 | 550 | 16"-18" | 90 | 100 | 254 | 430 | 210 | 122 |
| 130 | 650 | 19"-21" | 100 | 114 | 280 | 480 | 235 | 170 |
| 200 | 1000 | 22"-24" | 125 | 133 | 300 | 600 | 265 | 282 |
| 225 | 1125 | 25"-27" | 130 | 146 | 333 | 720 | 305 | 349 |
| 300 | 1500 | 28"-30" | 140 | 165 | 366 | 850 | 305 | 490 |
| Speical Heavy duty double nut shackle | ||||||||
| 200 | 498 | 18" | 105 | 120 | 254 | 500 | 228 | 205 |
| 200 | 498 | 21" | 115 | 125 | 280 | 520 | 238 | 244 |
| 250 | 612 | 15" | 115 | 125 | 220 | 400 | 238 | 203 |
| 250 | 612 | 18" | 125 | 130 | 254 | 500 | 238 | 248 |
| 250 | 612 | 21" | 125 | 130 | 280 | 480 | 260 | 274 |
